Piston - Pin Connecting Rod, Press Fit: Disassembly

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the piston pin out from the connecting rod and piston assembly.

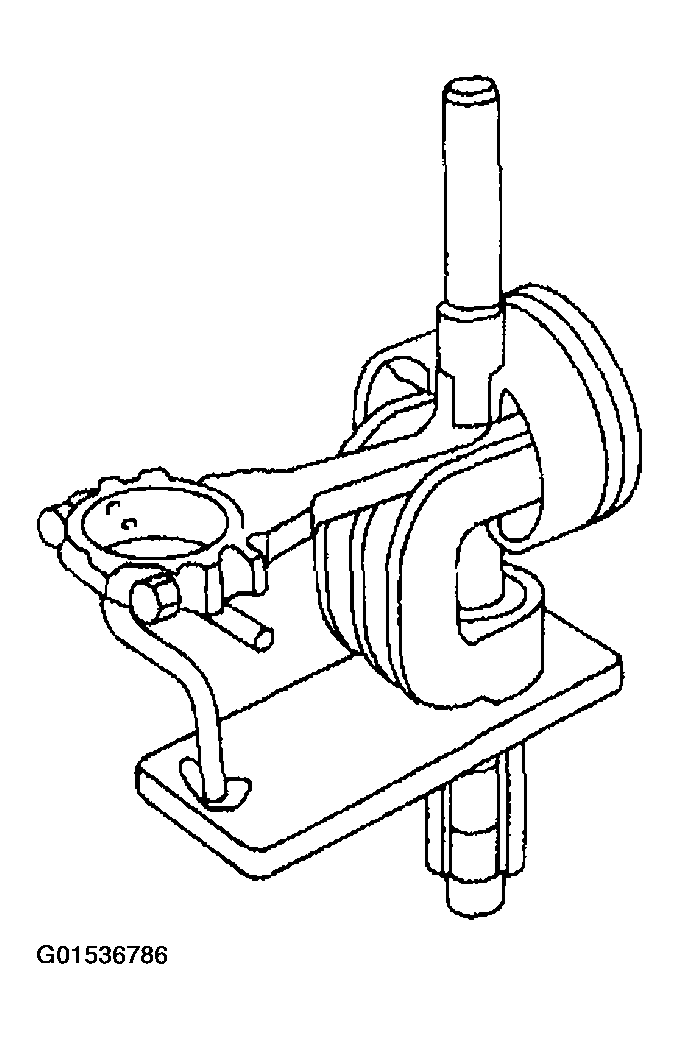

    Fig 1: Removing Piston Pin From Connecting Rod And Piston Assembly
    G01536786Courtesy of FORD MOTOR CO.
  2. Remove the connecting rod (6200) from the piston (6108).

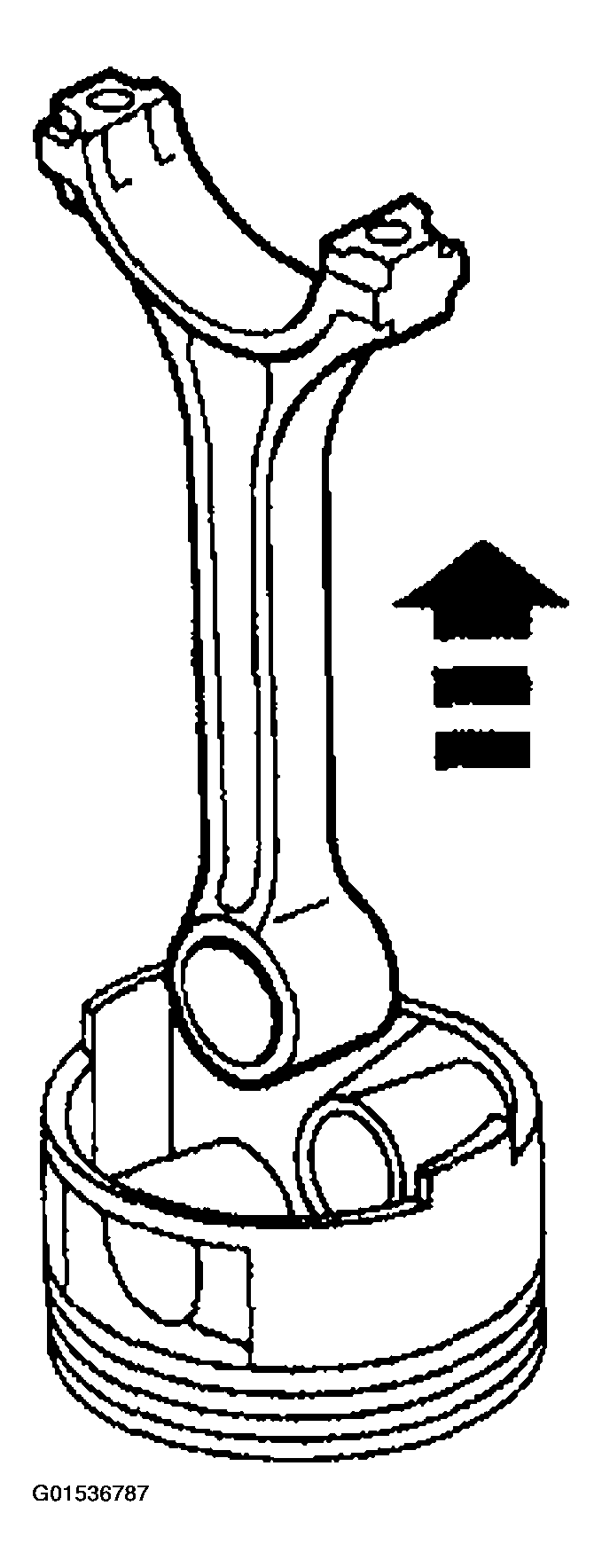

    Fig 2: Removing Connecting Rod From Piston
    G01536787Courtesy of FORD MOTOR CO.
  3. Clean and inspect the connecting rod and piston. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
