Piston - Pin Connecting Rod, Press Fit: Assembly

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the piston pin (6135) and piston pin bore with clean engine oil.
    Fig 1: Lubricating Piston Pin
    G01536788Courtesy of FORD MOTOR CO.
    2. NOTE: The connecting rod can be installed in either direction.
    Fig 2: Positioning Piston Pin In Bore
    G01536789Courtesy of FORD MOTOR CO.
  2. Position the piston pin in the bore aligned with the connecting rod bore.
  3. Press the piston pin into the piston and rod assembly.

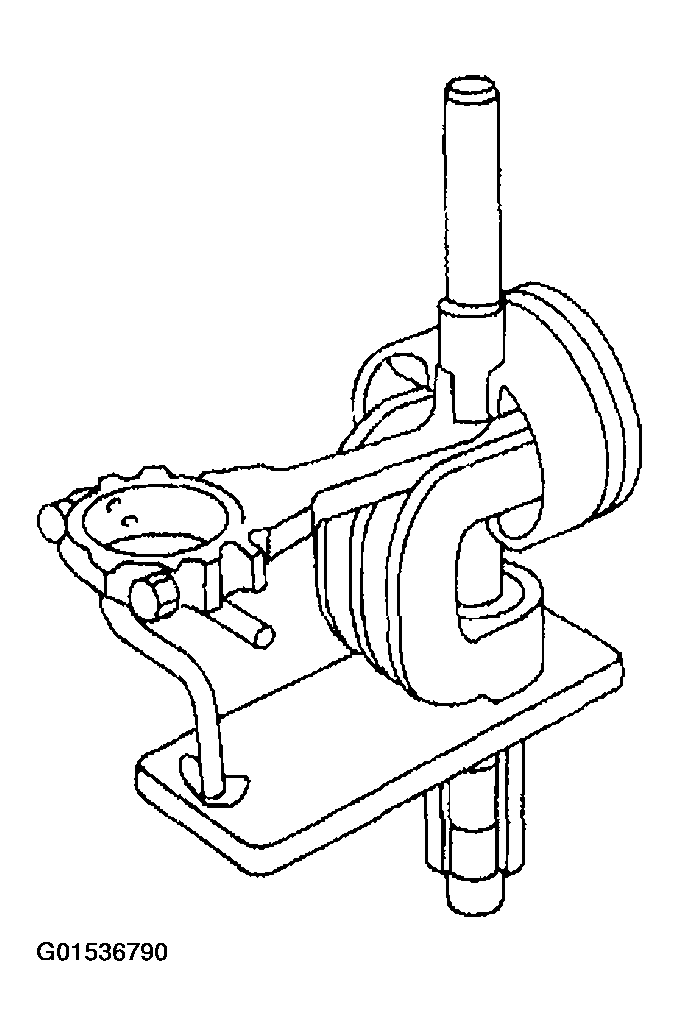

    Fig 3: Installing Piston Pin Into Piston And Rod Assembly
    G01536790Courtesy of FORD MOTOR CO.
