5.4L Engine - Upper End

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

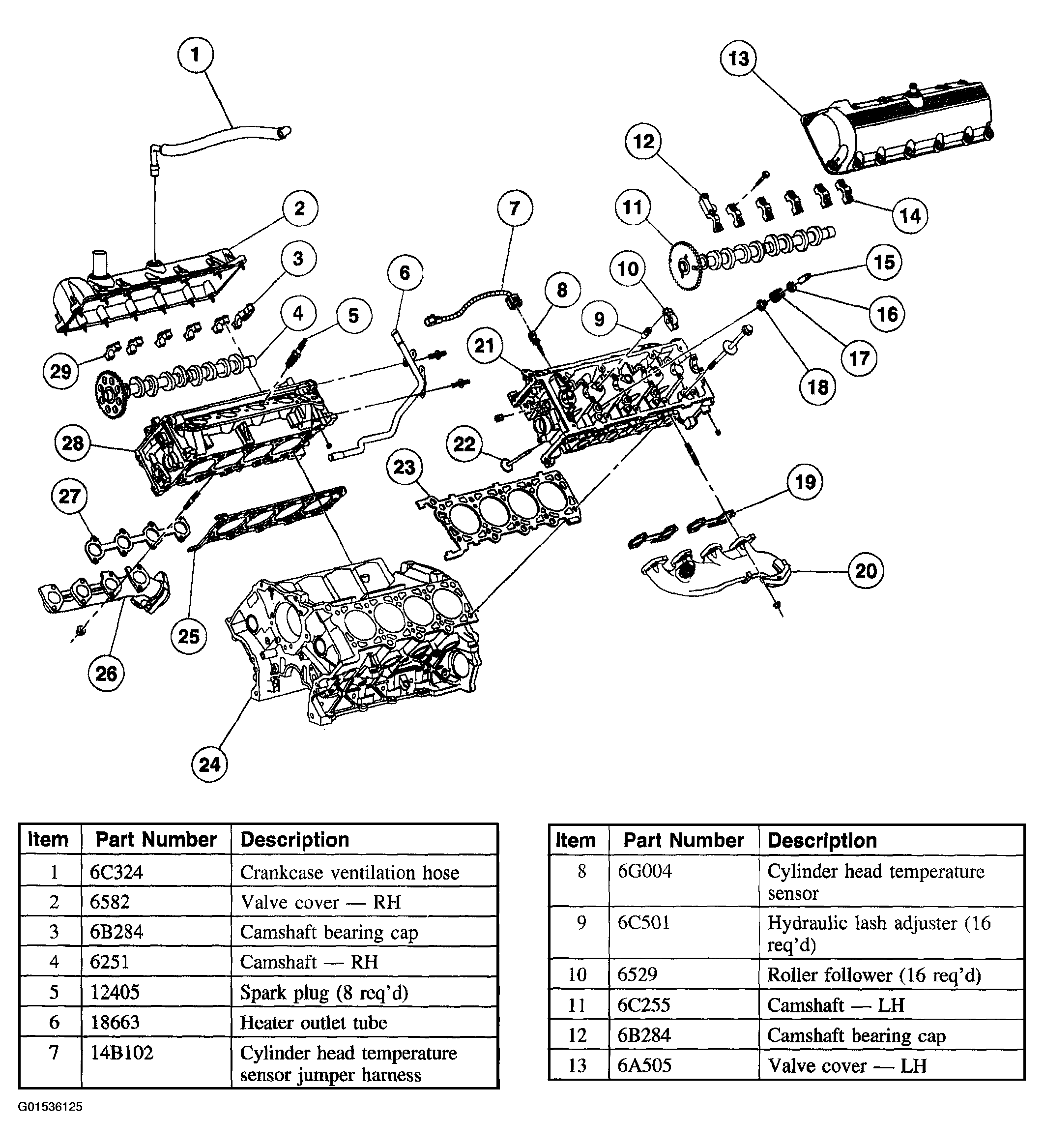

Fig 1: Exploded View Of 5.4L Engine - Upper End (Items 1-13)
G01536125Courtesy of FORD MOTOR CO.

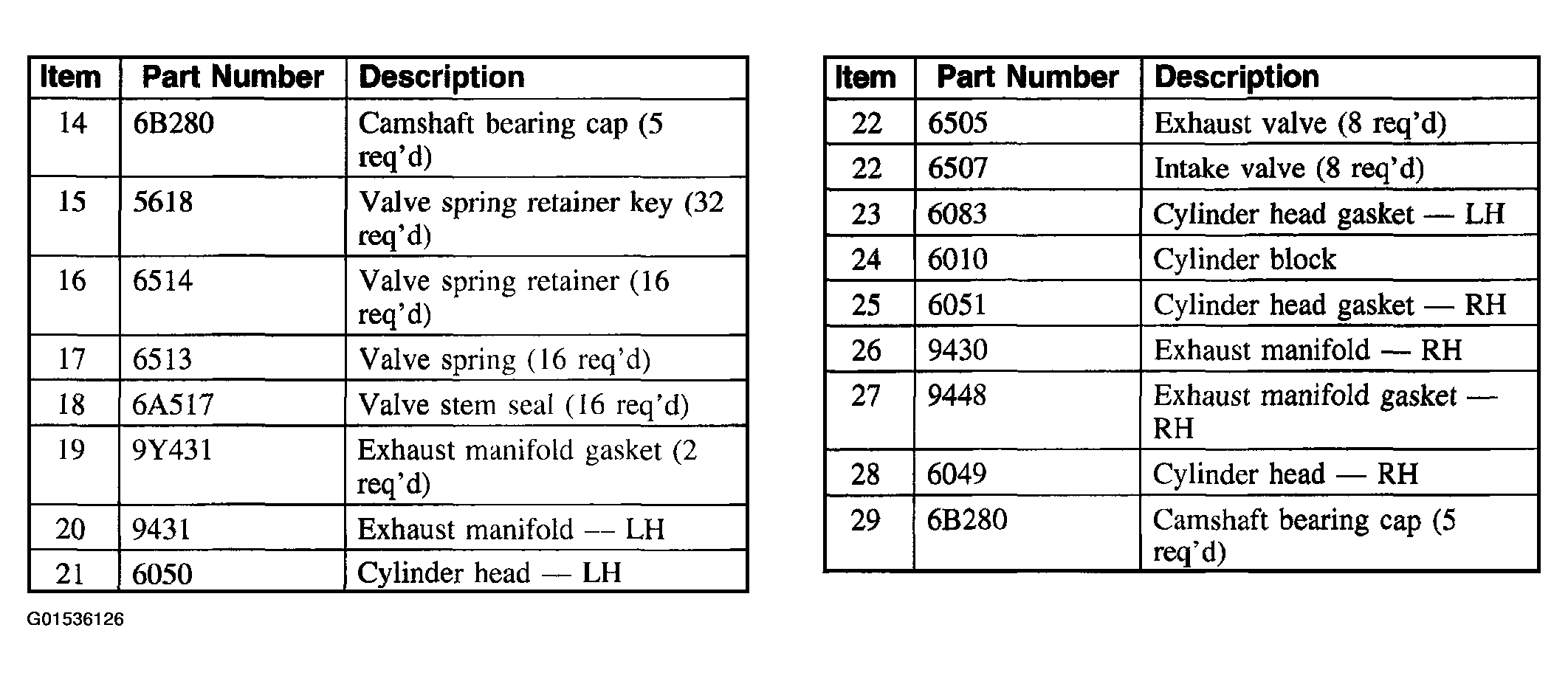

Fig 2: Exploded View Of 5.4L Engine - Upper End (Items 14-29)
G01536126Courtesy of FORD MOTOR CO.
