Oil Pump: Removal

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the oil bypass filter (6714).

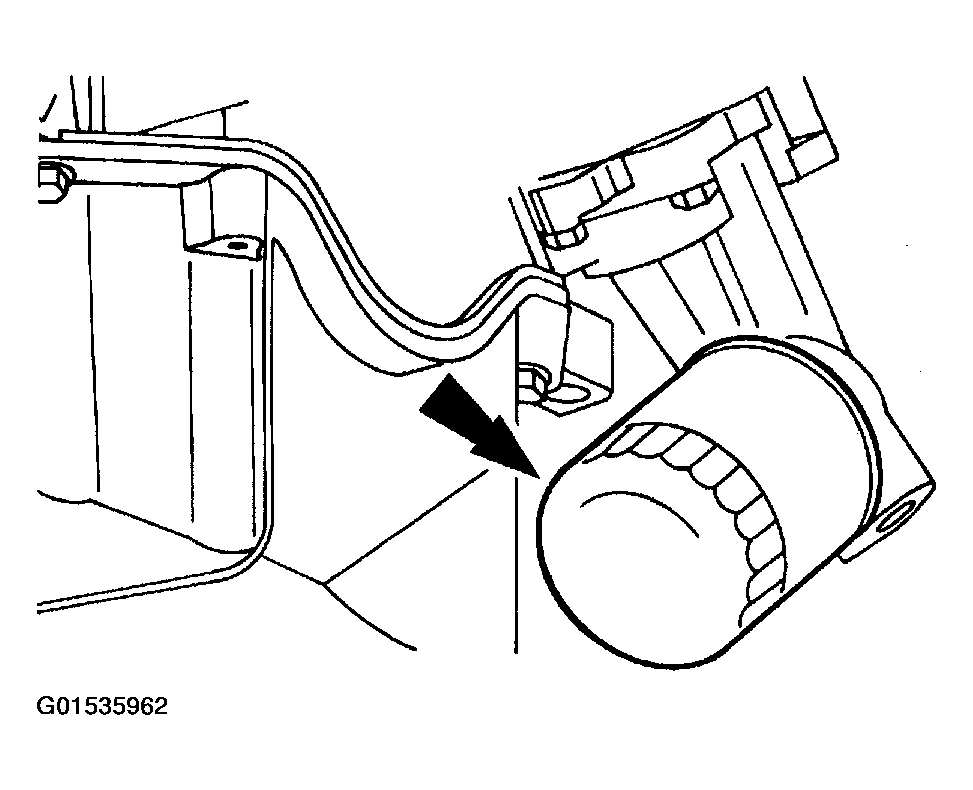

    Fig 1: Removing Oil Bypass Filter
    G01535962Courtesy of FORD MOTOR CO.
  3. Remove the bolts.

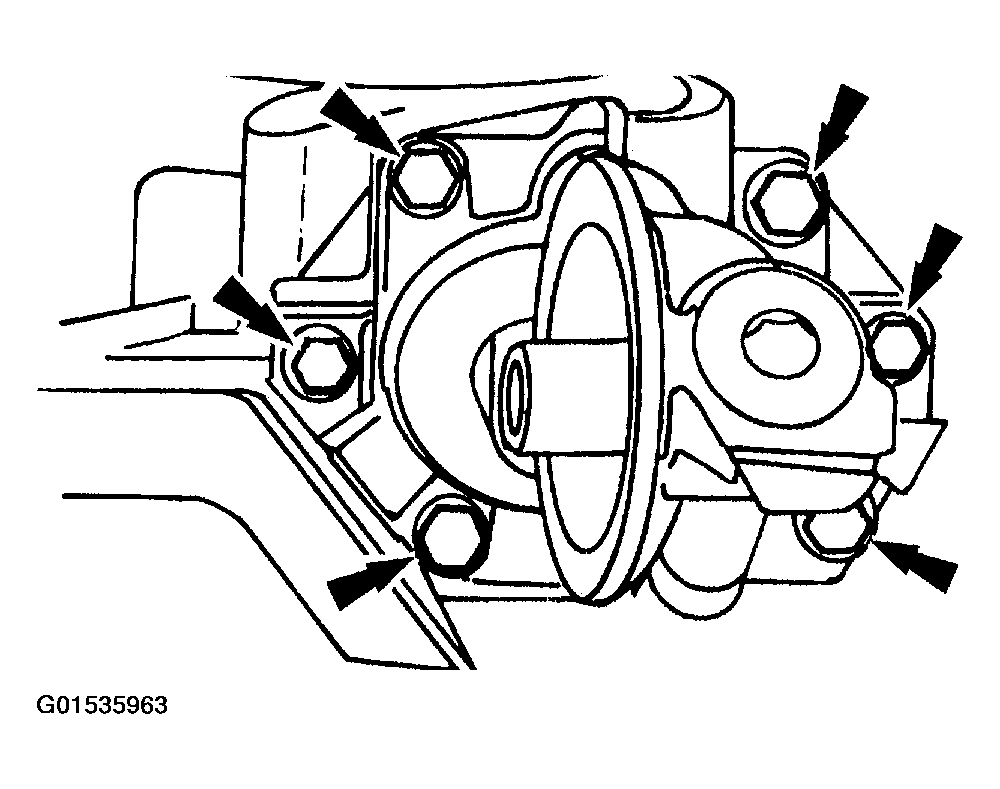

    Fig 2: Removing Bolts
    G01535963Courtesy of FORD MOTOR CO.
  4. Remove the (A) oil pump drive gear, (B) oil pump driven gear, (C) oil pump O-ring seal and (D) oil pump and filter body (6603). Discard the (C) oil pump O-ring seal.

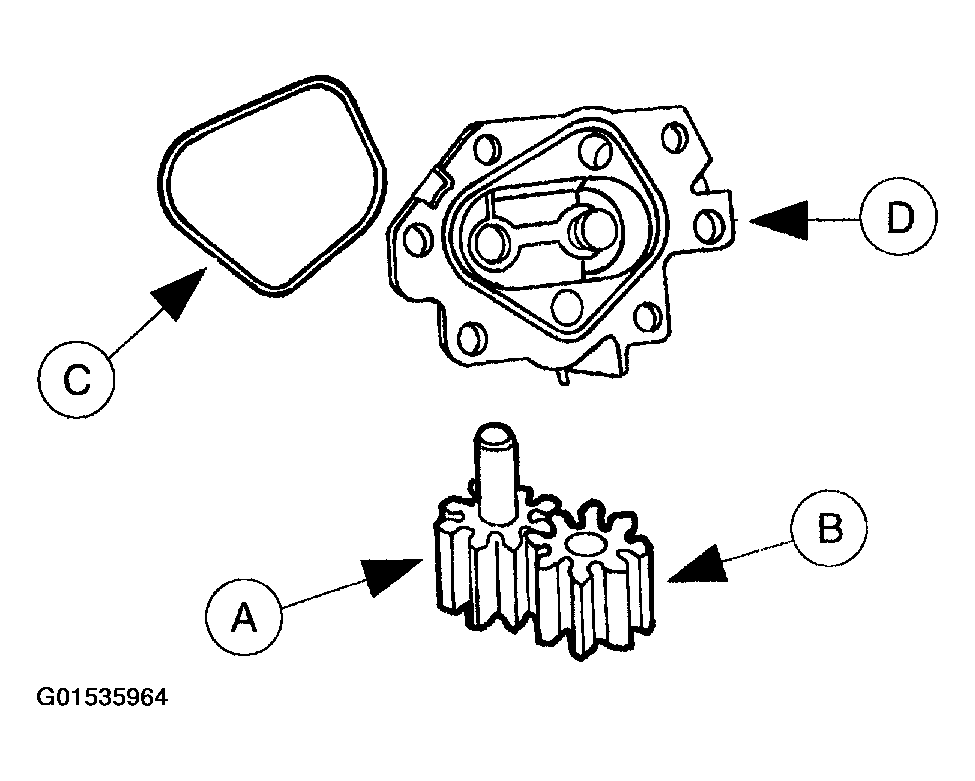

    Fig 3: Removing Oil Pump Drive Gear And Oil Pump Driven Gear
    G01535964Courtesy of FORD MOTOR CO.
