Oil Pump: Installation

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Lubricate parts with clean engine oil before assembly.

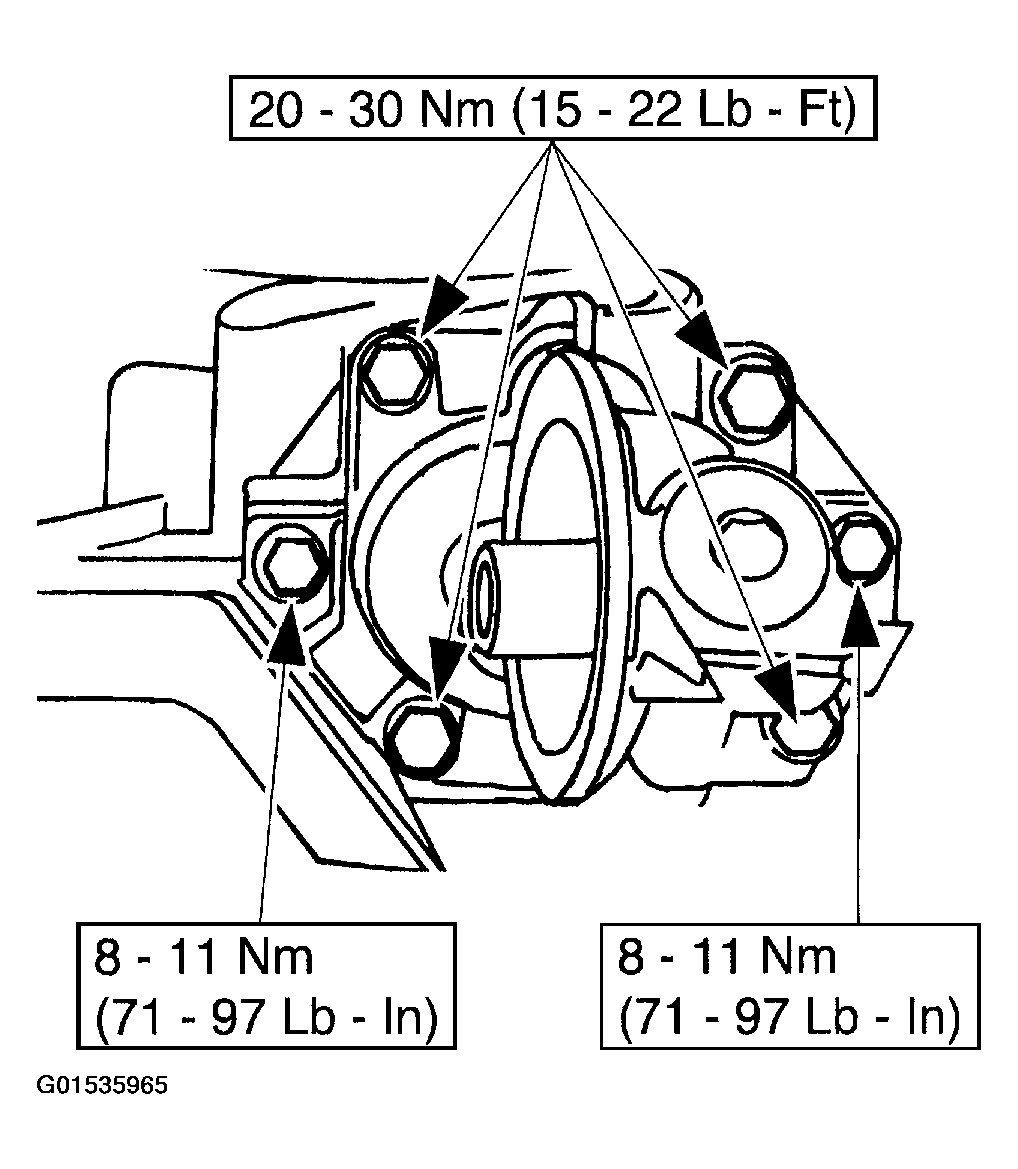

Fig 1: Tightening Bolts

Courtesy of FORD MOTOR CO.

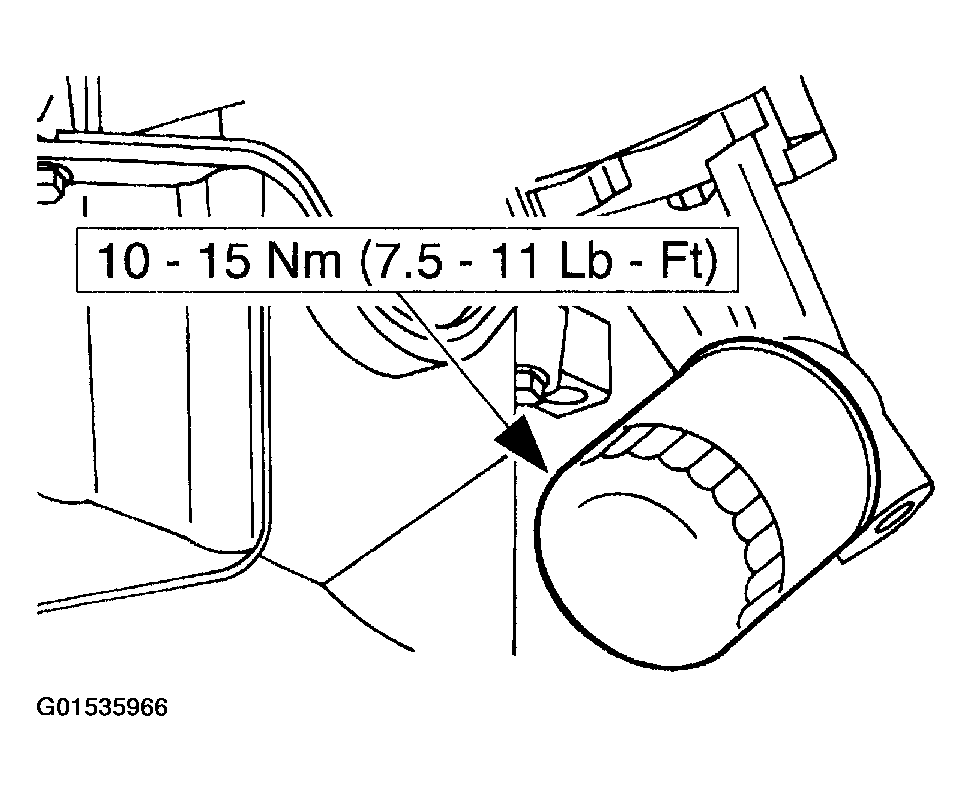

Fig 2: Installing Oil Bypass Filter

Courtesy of FORD MOTOR CO.

Follow the removal procedure in reverse order.
