Oil Pump Screen and Pickup Tube: Removal

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan (6675). For additional information, refer to OIL PAN .
  2. Remove the bolts, the nuts, and the oil pump screen cover and pickup tube (6622). Discard the gasket.

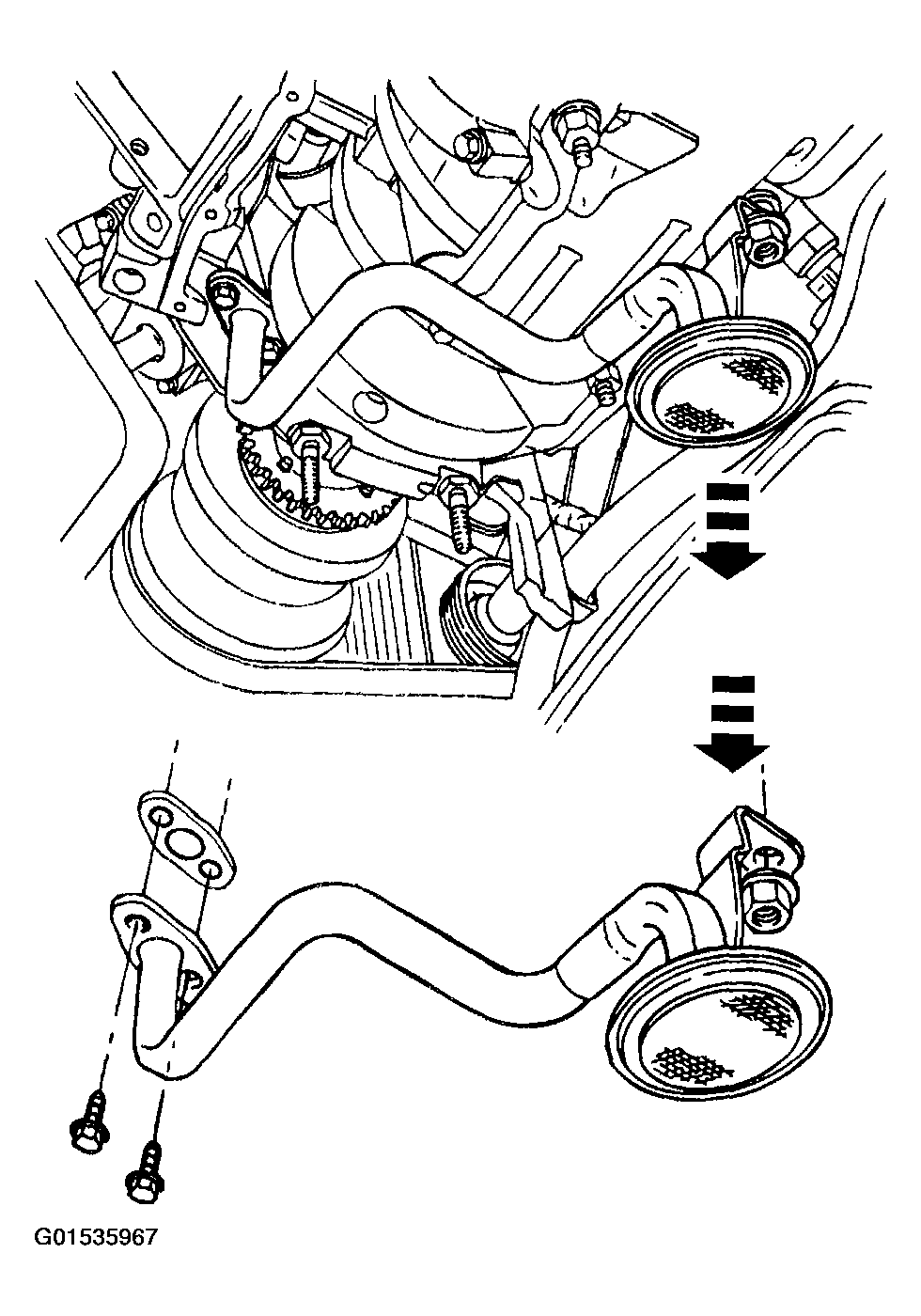

    Fig 1: Removing Oil Pump Screen
    G01535967Courtesy of FORD MOTOR CO.
