Oil Pump Screen and Pickup Tube: Installation

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil pump screen cover and pickup tube. Use a new gasket.

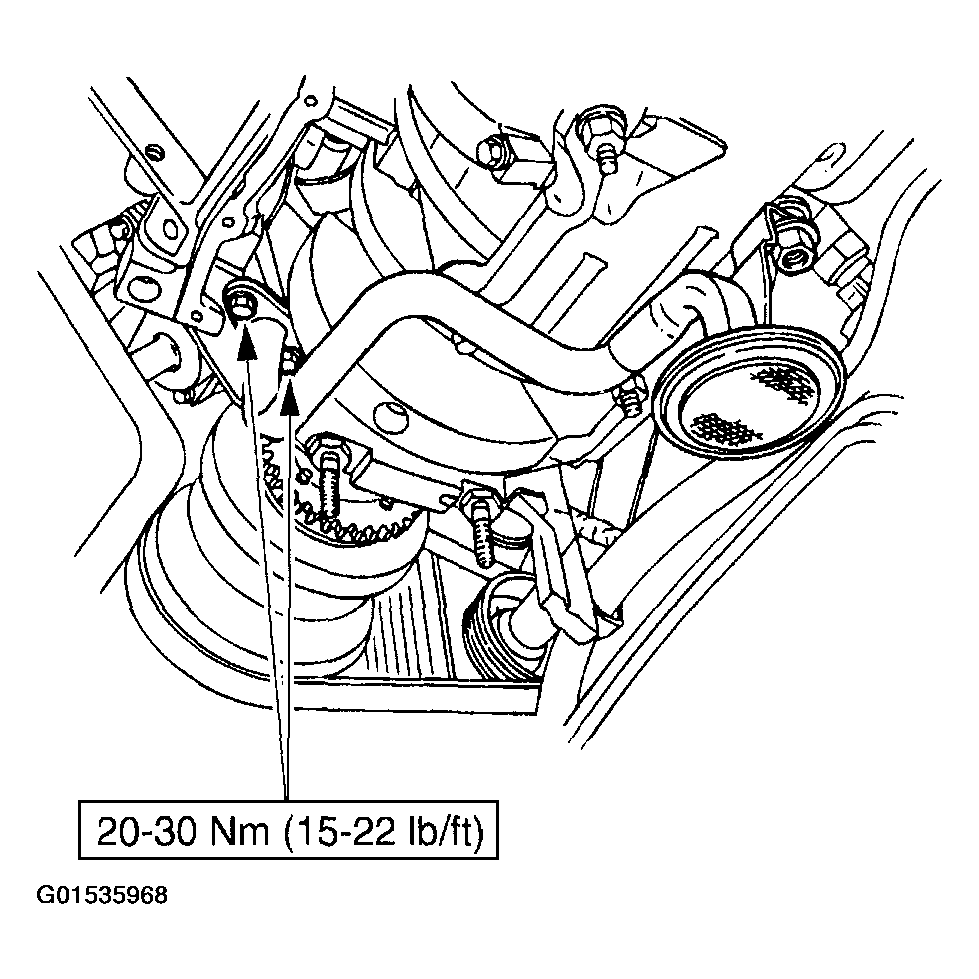

    Fig 1: Installing Oil Pump Screen
    G01535968Courtesy of FORD MOTOR CO.
  2. Install the oil pan. For additional information, refer to OIL PAN .
