Oil Pan: Removal

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable (14301). For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the intake manifold spacer. For additional information, refer to INTAKE MANIFOLD - SPACER ASSEMBLY .
  3. Remove the radiator upper hose.
    4. CAUTION: The clutch assembly nut has a right-hand thread and must be rotated counterclockwise to remove it.
    NOTE: Two people are needed to loosen the fan clutch pulley. From under the vehicle, have one person hold the fan pulley. The holding tool must be located at the 7 o'clock position. From the engine compartment, the second person can now loosen the fan clutch. The fan clutch nut wrench has to be located at the 12 o'clock position.

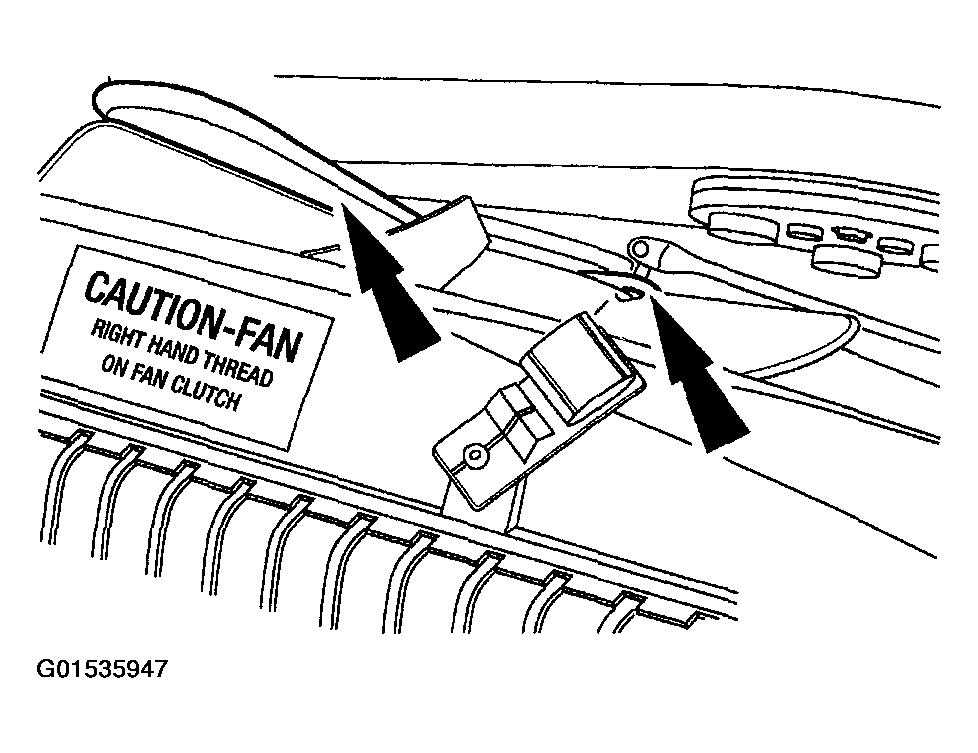

    Fig 1: Identifying Code Number
    G01535947Courtesy of FORD MOTOR CO.
  4. Using the appropriate Fan Clutch Hub Nut Wrench and Fan Pulley Holding Wrench, loosen the fan clutch.
  5. Carefully rotate the fan and fan clutch assembly counterclockwise until the assembly is free from the water pump. Place the fan and fan clutch into the shroud opening.
    6. CAUTION: Use extreme care when removing or installing the fan, fan clutch and shroud. Failure to do so will cause damage to the radiator.

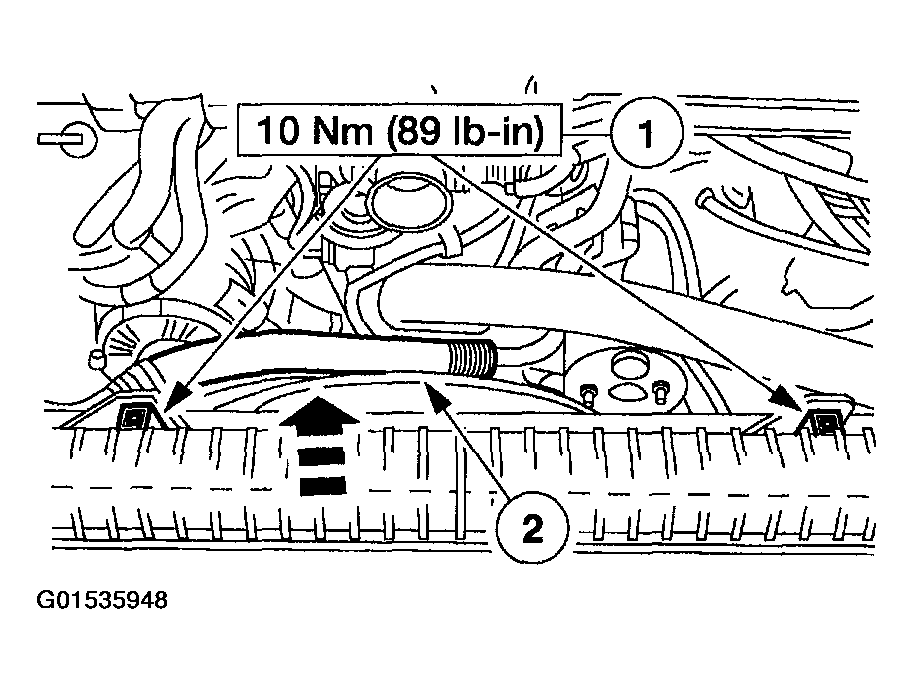

    Fig 2: Removing Fan, Fan Clutch And Shroud
    G01535948Courtesy of FORD MOTOR CO.
  6. Remove the fan, fan clutch and shroud.
    1. Remove the mounting bolts.
    2. Remove the fan, fan clutch and shroud.
  7. Remove the bolt retaining the dipstick tube support bracket to the transmission converter housing.

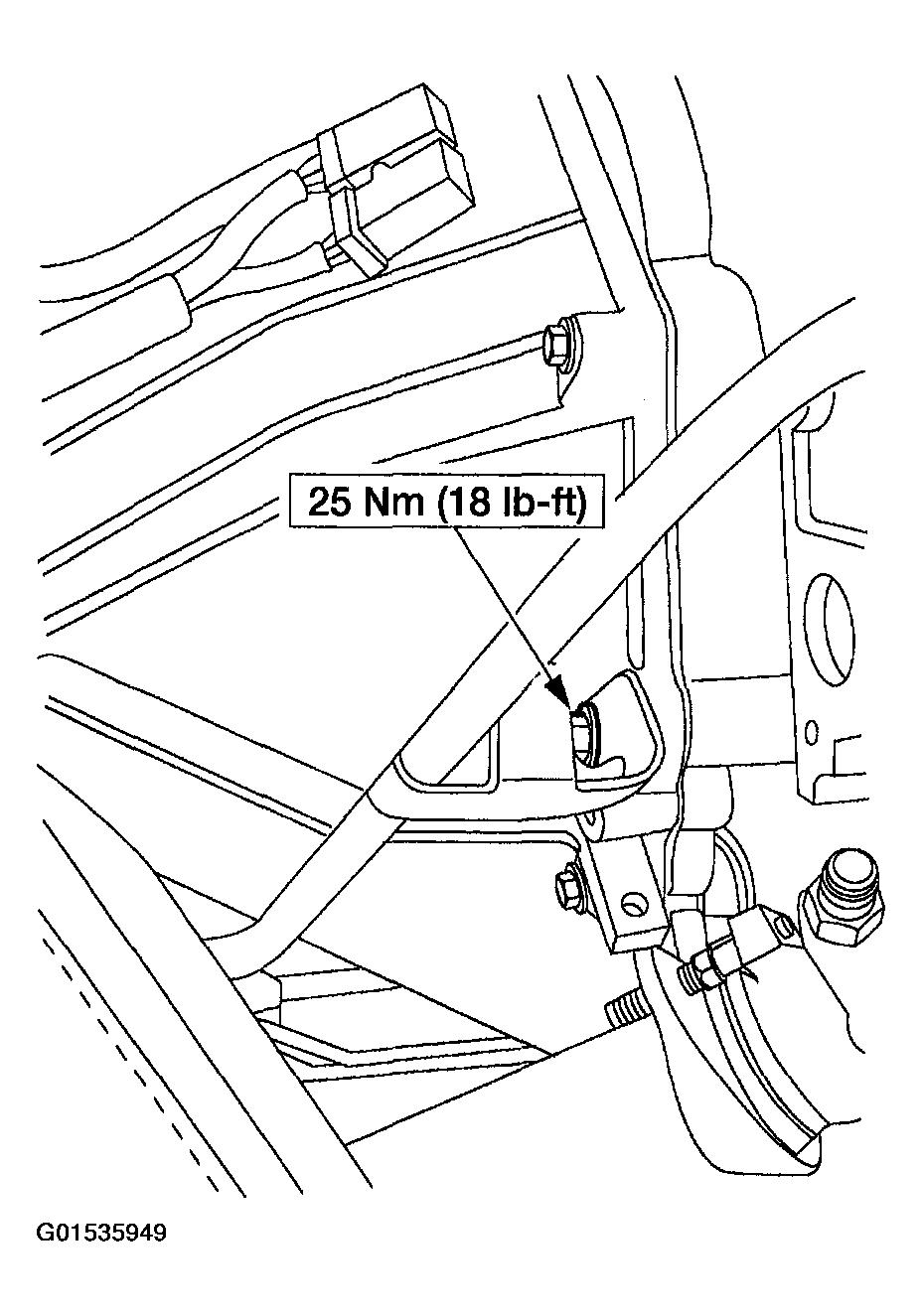

    Fig 3: Removing Dipstick Tube Support Bracket Bolt
    G01535949Courtesy of FORD MOTOR CO.
  8. Raise the vehicle.
  9. Drain the engine oil.
  10. Loosen the nuts.
    Fig 4: Loosening Nuts
    G01535950Courtesy of FORD MOTOR CO.
  11. Remove the nuts (left side shown, right side similar).

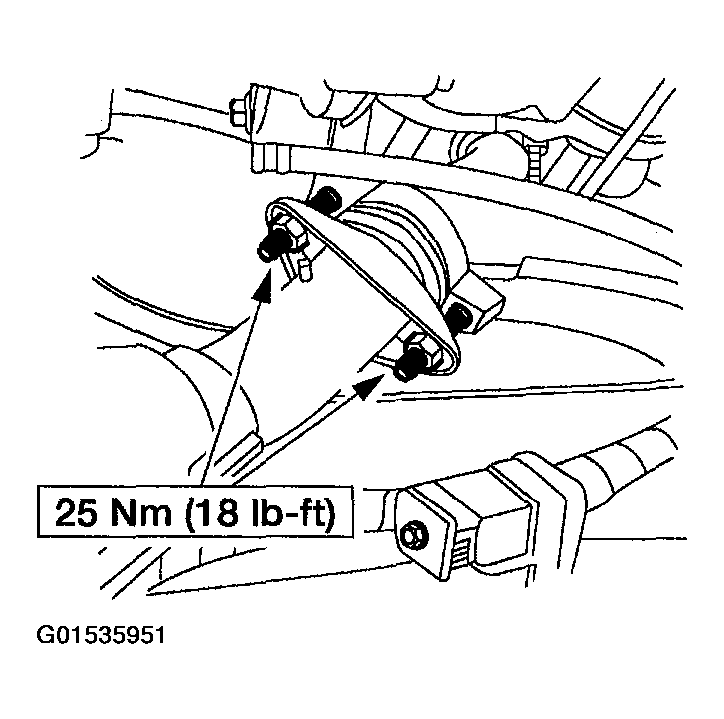

    Fig 5: Removing Nuts
    G01535951Courtesy of FORD MOTOR CO.
  12. Remove the nuts (right side shown, left side similar).

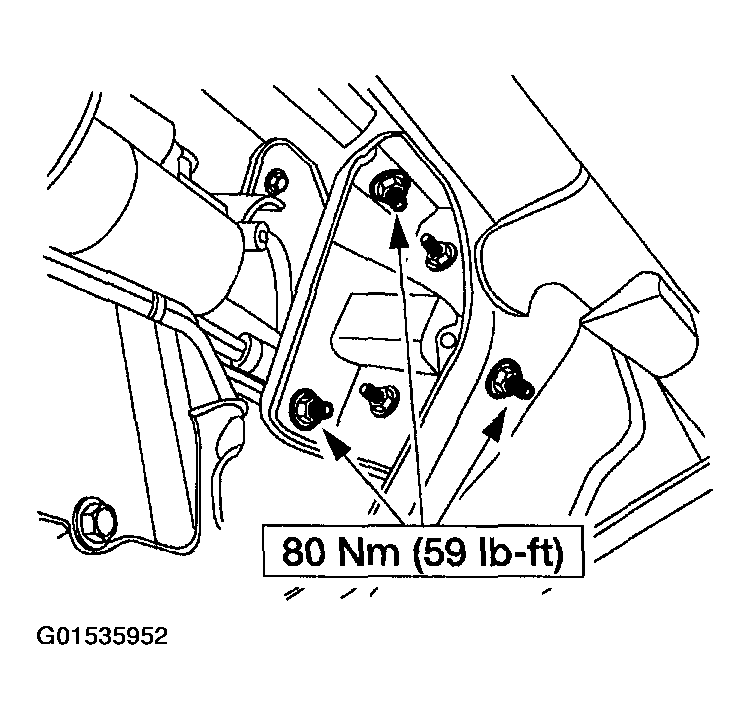

    Fig 6: Removing Nuts
    G01535952Courtesy of FORD MOTOR CO.
  13. Position a screw jack and a block of wood under the oil pan.

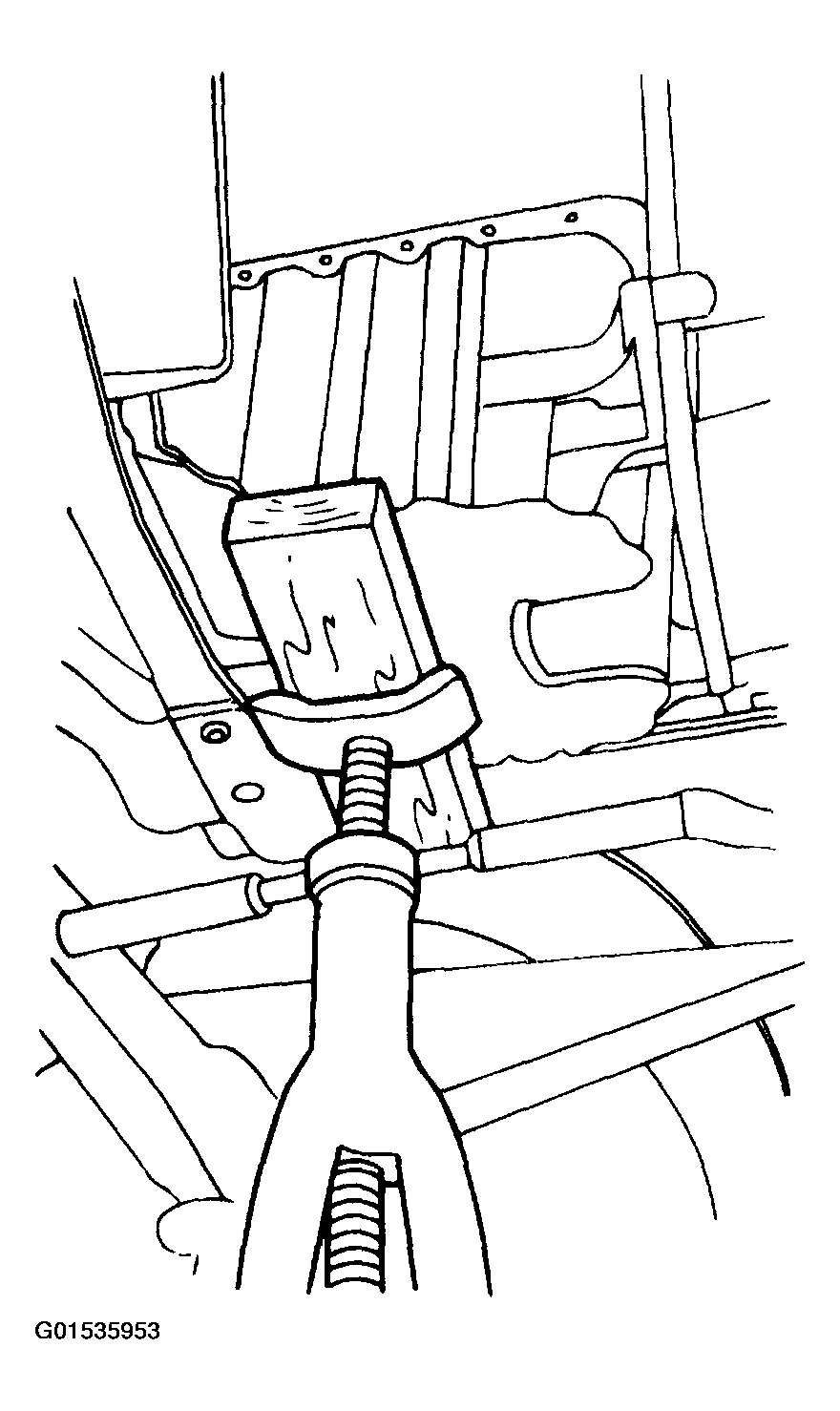

    Fig 7: Supporting Screw Jack And Block Of Wood Under Oil Pan
    G01535953Courtesy of FORD MOTOR CO.
    14. NOTE: If the engine is not raised at least 330 mm (13 in), it will not be possible to remove the oil pan.

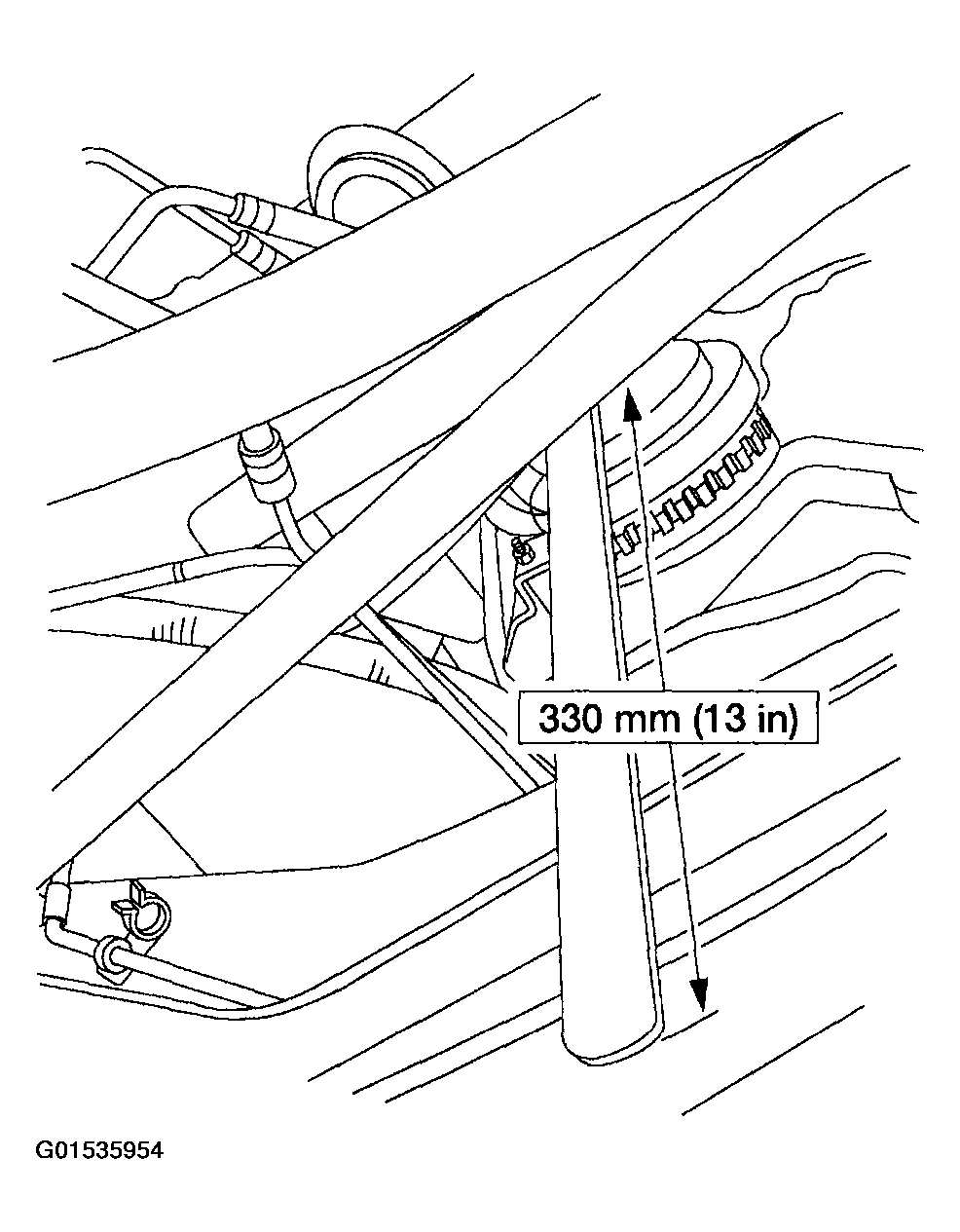

    Fig 8: Identifying Distance Between Crankshaft Damper And Bottom Of Crossmember
    G01535954Courtesy of FORD MOTOR CO.
  14. Raise the engine until the distance between the crankshaft damper and the bottom of the crossmember is at least 330 mm (13 in).
  15. Support the engine by placing blocks of wood between the engine mount bracket and the exhaust manifolds. Remove the screw jack and wood block from the oil pan.
    Fig 9: Supporting Blocks Of Wood Between Engine Mount Bracket And Exhaust Manifolds
    G01535955Courtesy of FORD MOTOR CO.
  16. Remove the bolt retaining the oil pan to the right side of the transmission converter housing.

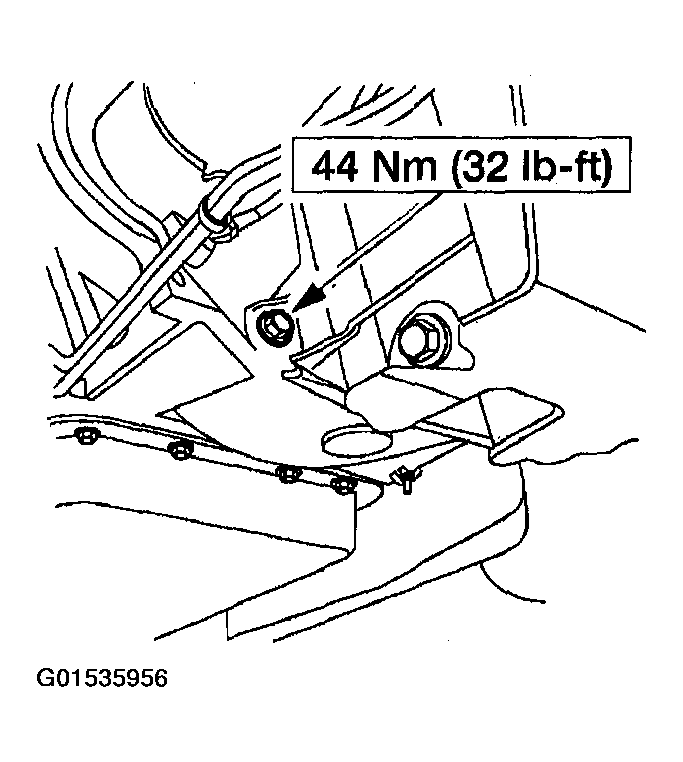

    Fig 10: Removing Bolt Retaining Oil Pan
    G01535956Courtesy of FORD MOTOR CO.
  17. Remove the bolts retaining the oil pan to the left side of the transmission converter housing.

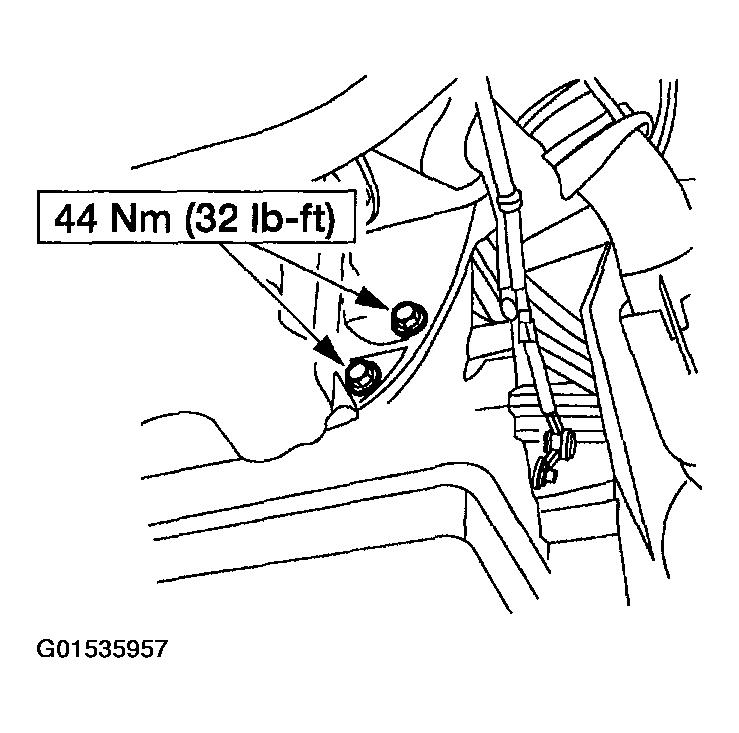

    Fig 11: Removing Bolts Retaining Oil Pan To Left Side Of Transmission Converter Housing
    G01535957Courtesy of FORD MOTOR CO.
  18. Remove the remaining bolts and the oil pan. Remove and discard the oil pan seal.

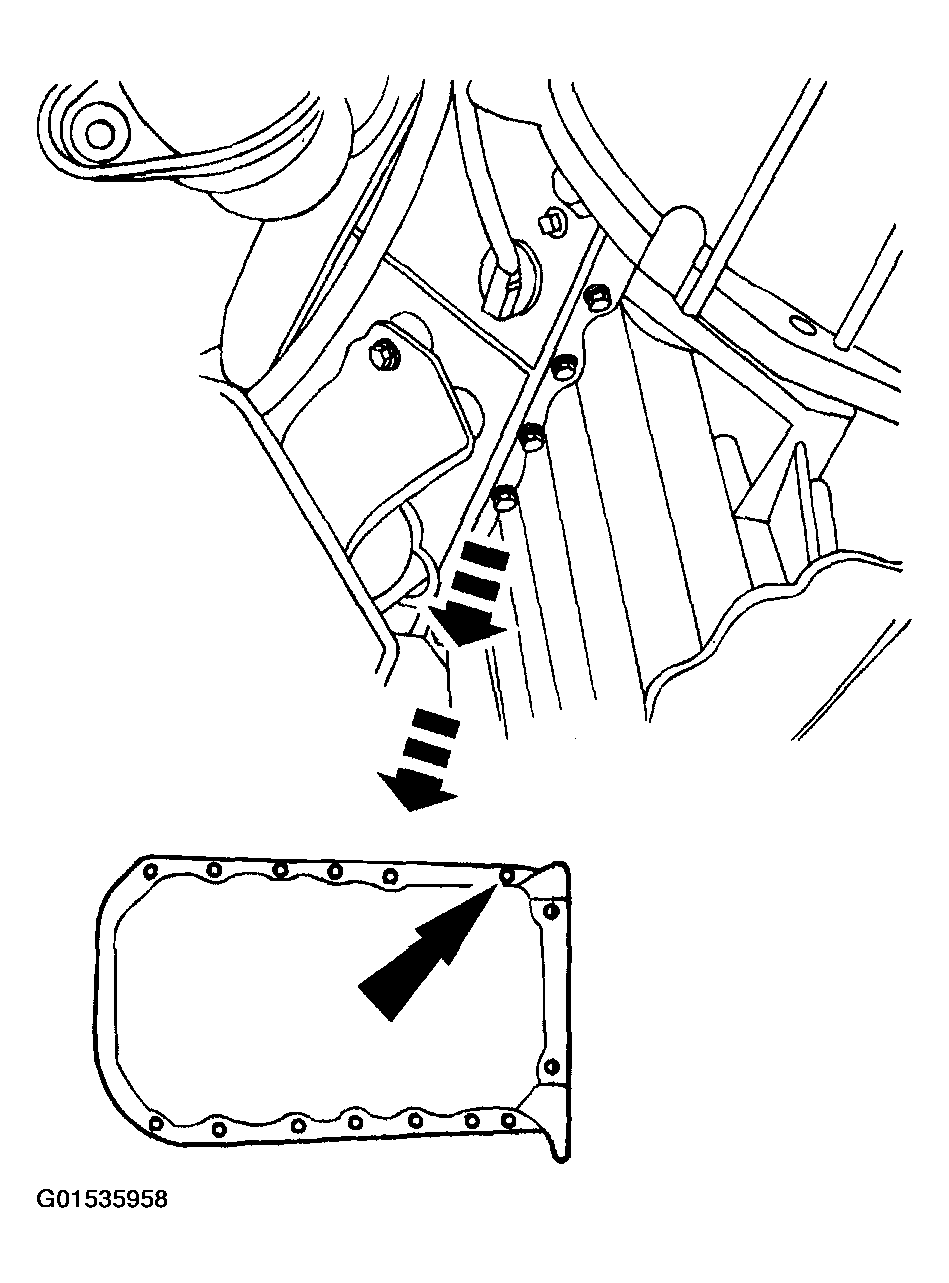

    Fig 12: Removing Oil Pan Seal
    G01535958Courtesy of FORD MOTOR CO.
