Exhaust Manifold LH: Installation

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use a new gasket.

NOTE: Tighten in the sequence shown.

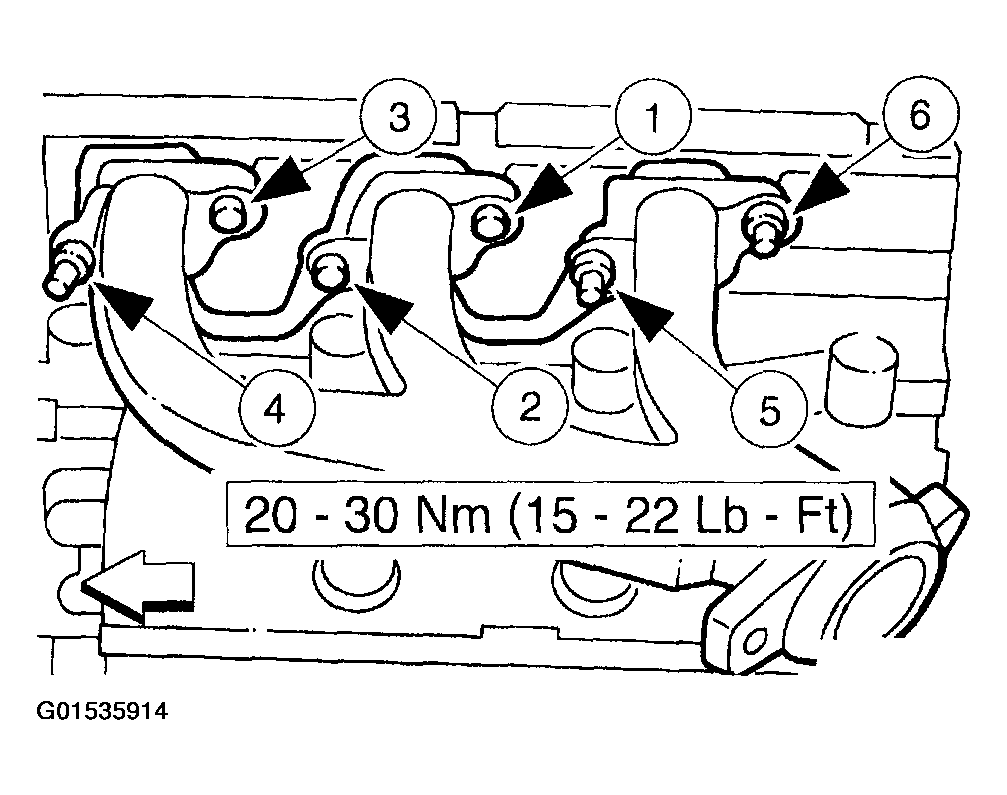

Fig 1: Installing LH Exhaust Manifold

Courtesy of FORD MOTOR CO.

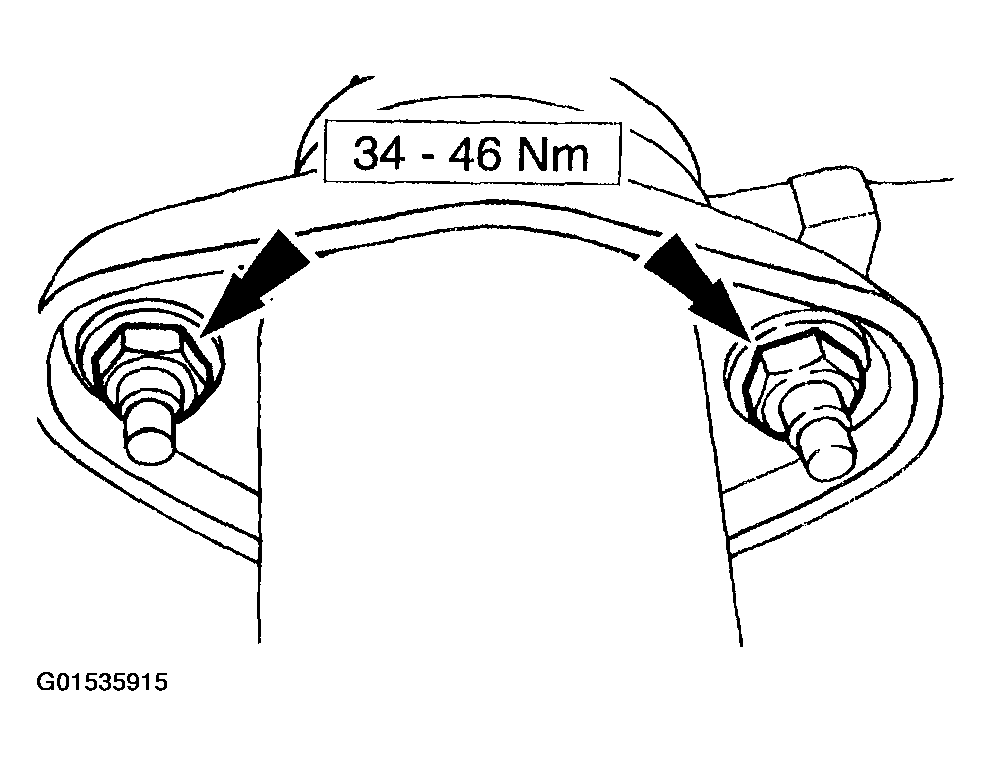

Fig 2: Installing Nuts

Courtesy of FORD MOTOR CO.

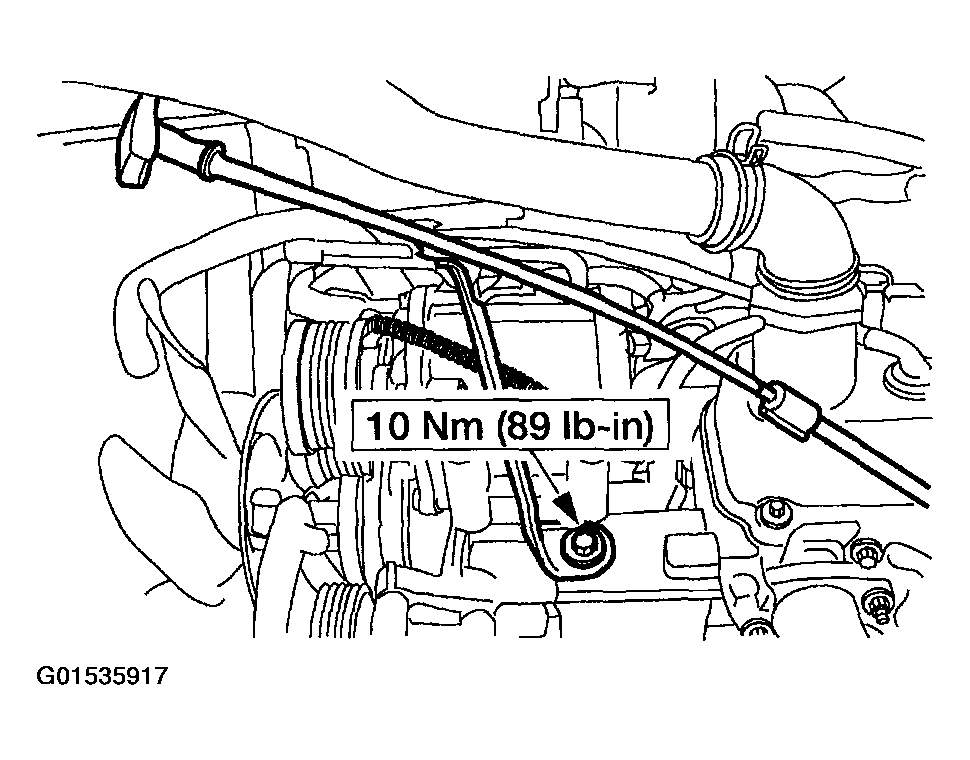

Fig 3: Installing Oil Level Indicator Tube

Courtesy of FORD MOTOR CO.

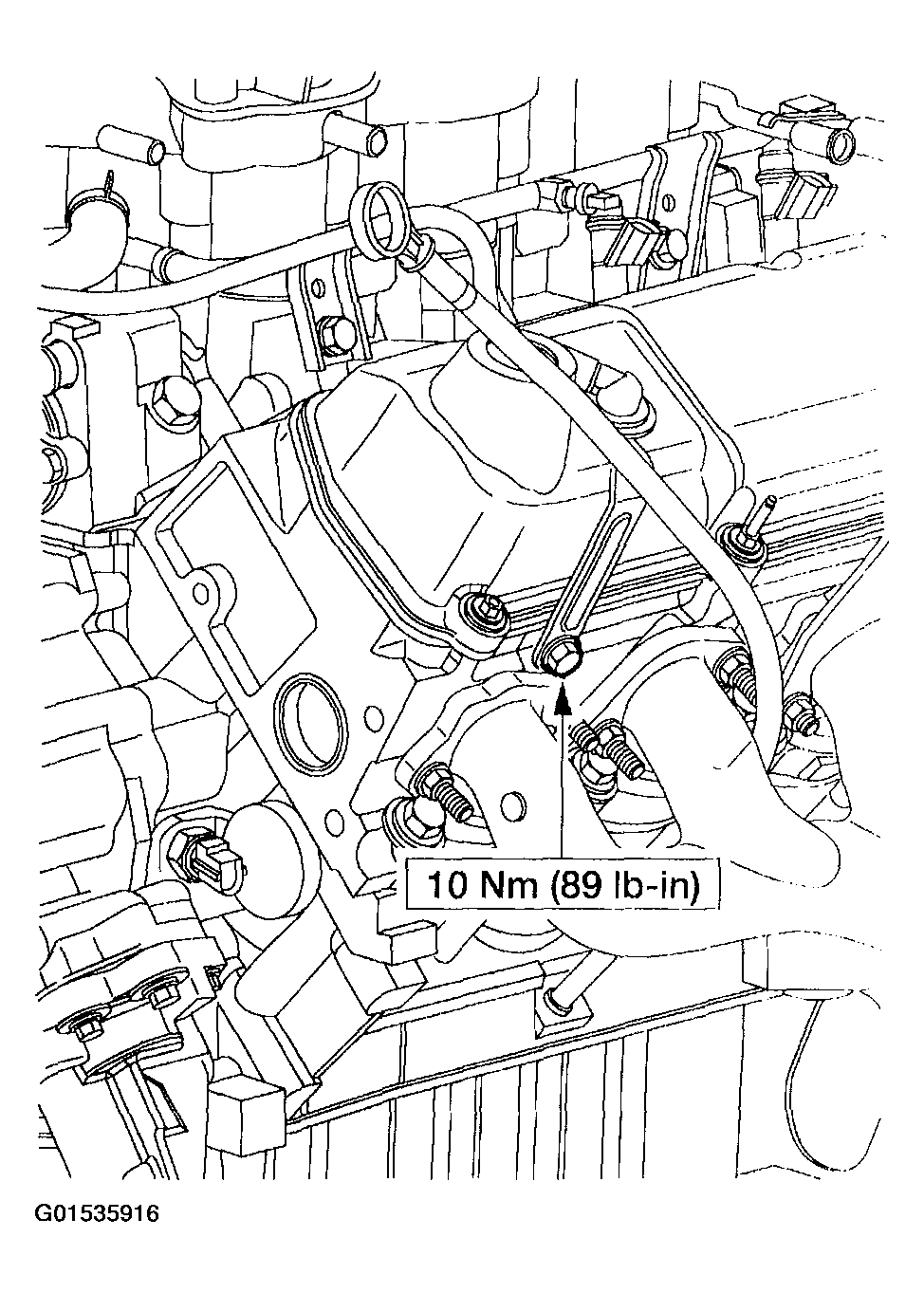

Fig 4: Identifying Oil Level Indicator Tube

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
