Crankshaft Rear Oil Seal: Removal

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flywheel or the flexplate. For additional information, refer to FLEXPLATE .
  2. Using the special tools, remove the crankshaft rear seal.

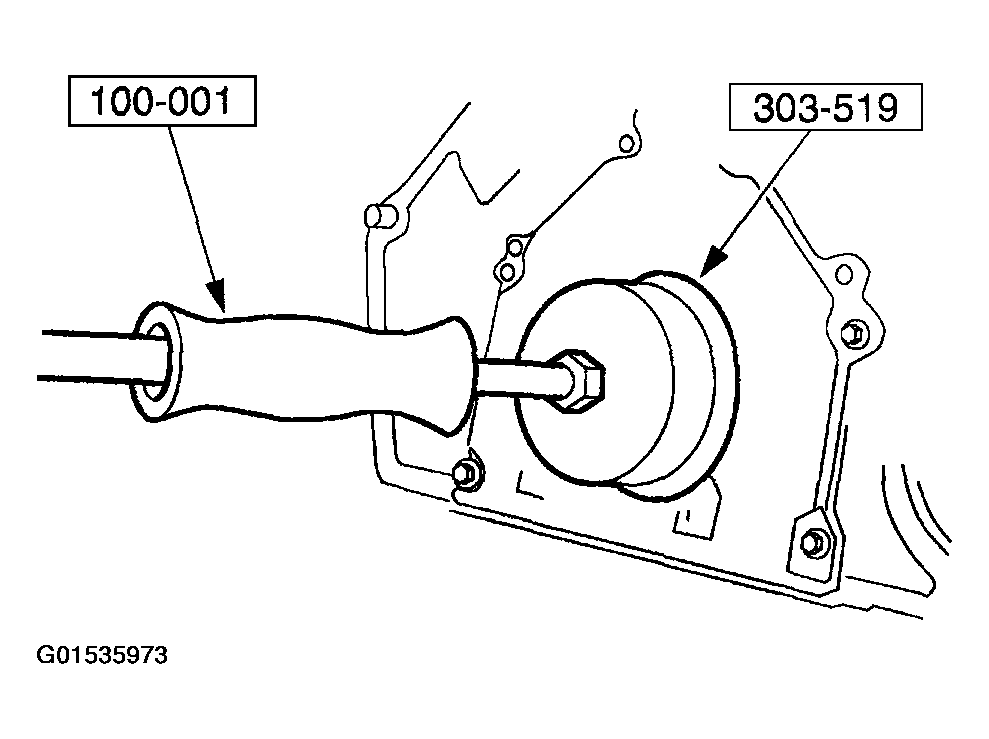

    Fig 1: Removing Crankshaft Rear Seal
    G01535973Courtesy of FORD MOTOR CO.
