Crankshaft Pulley: Removal

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt (8620), if necessary. For additional information, refer to ACCESSORY DRIVE .
  2. Remove the fan and shroud. For additional information, refer to ENGINE COOLING .
  3. Raise and support the vehicle.
  4. Remove the crankshaft damper and pulley assembly bolt.

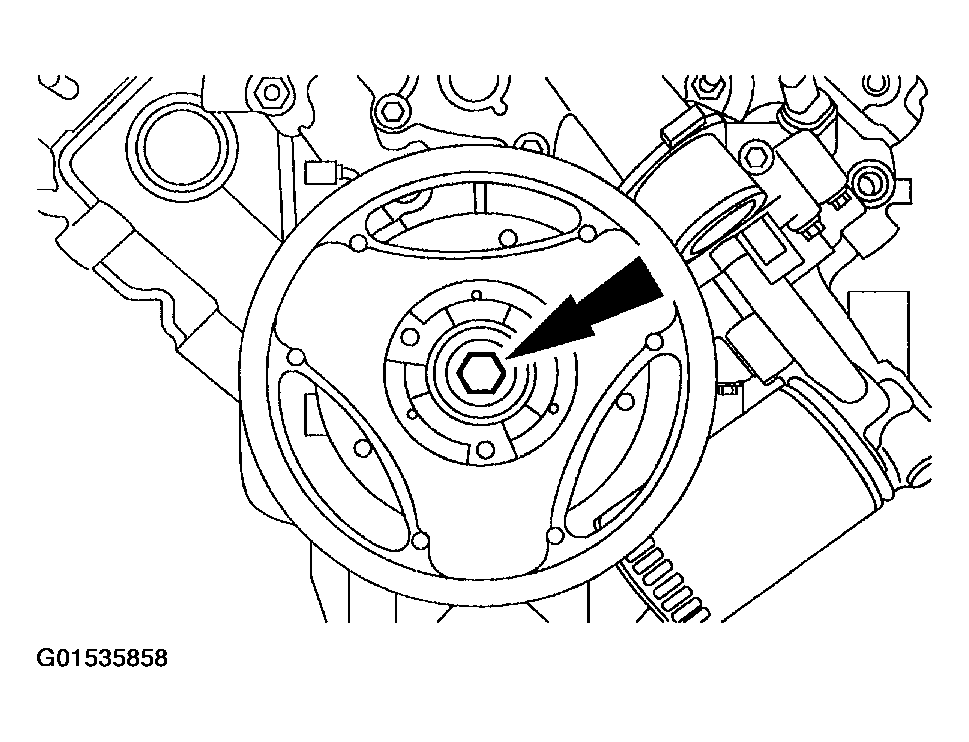

    Fig 1: Removing Crankshaft Damper And Pulley Assembly Bolt
    G01535858Courtesy of FORD MOTOR CO.
  5. Using the special tool, remove the crankshaft damper and pulley assembly.

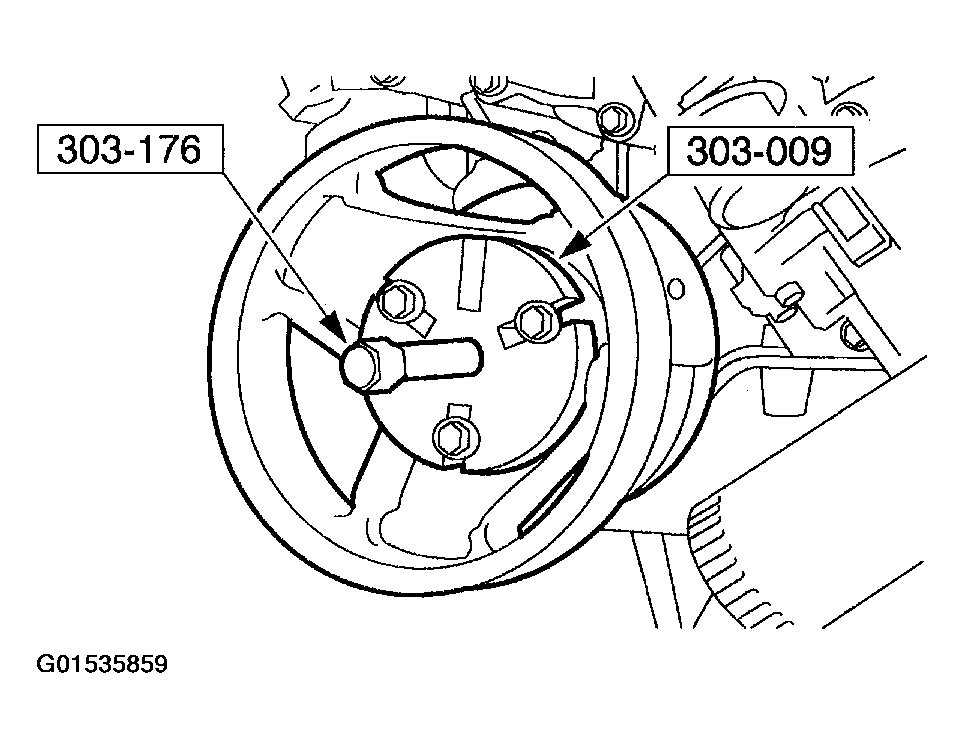

    Fig 2: Removing Crankshaft Damper And Pulley Assembly With Special Tool
    G01535859Courtesy of FORD MOTOR CO.
