Crankshaft Pulley: Installation

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a bead of sealant to the keyway in the crankshaft damper and pulley assembly. Use the special tool to position and install the crankshaft damper and pulley assembly.

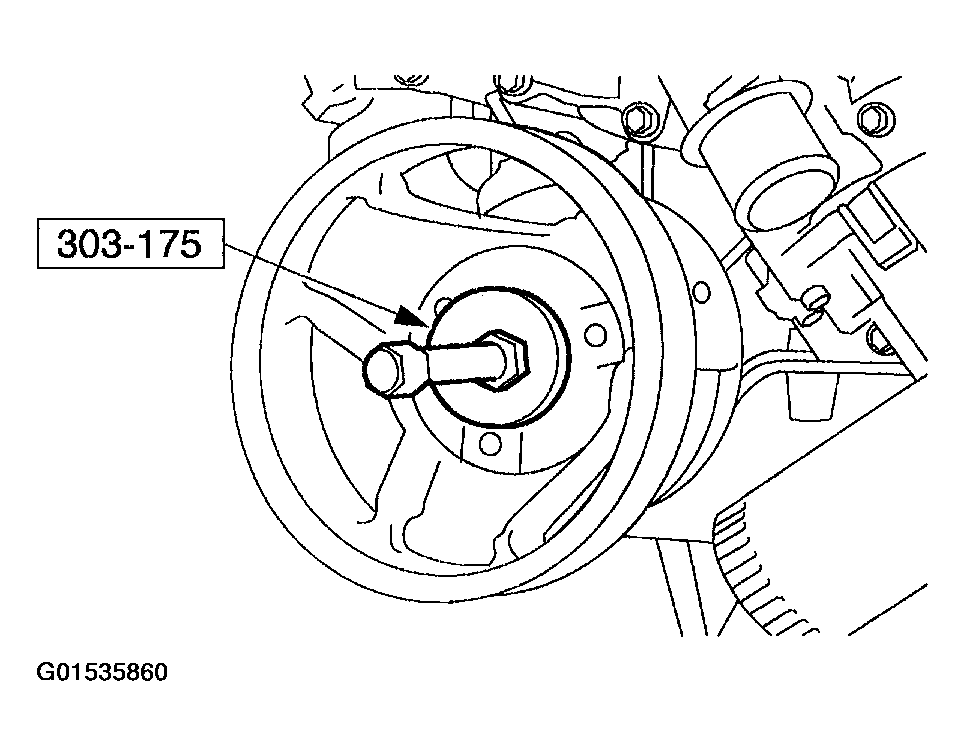

    Fig 1: Installing Crankshaft Damper
    G01535860Courtesy of FORD MOTOR CO.
  2. Install the crankshaft damper and pulley assembly bolt.

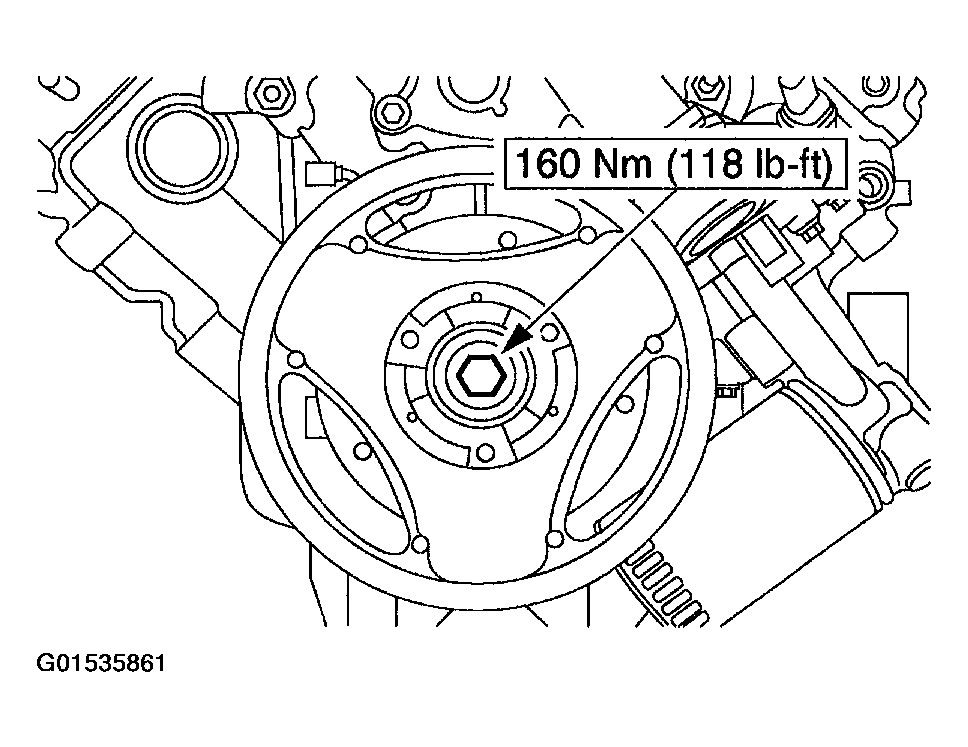

    Fig 2: Installing Crankshaft Damper And Pulley Assembly Bolt
    G01535861Courtesy of FORD MOTOR CO.
  3. Lower the vehicle.
  4. Install the fan blade assembly. For additional information, refer to ENGINE COOLING .
  5. Install the drive belt. For additional information, refer to ACCESSORY DRIVE .
