Crankshaft Front Oil Seal: Installation

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the crankshaft damper and engine front cover for damage that might cause the crankshaft front seal to fail.
    2. NOTE: Lubricate parts with engine oil before assembly.

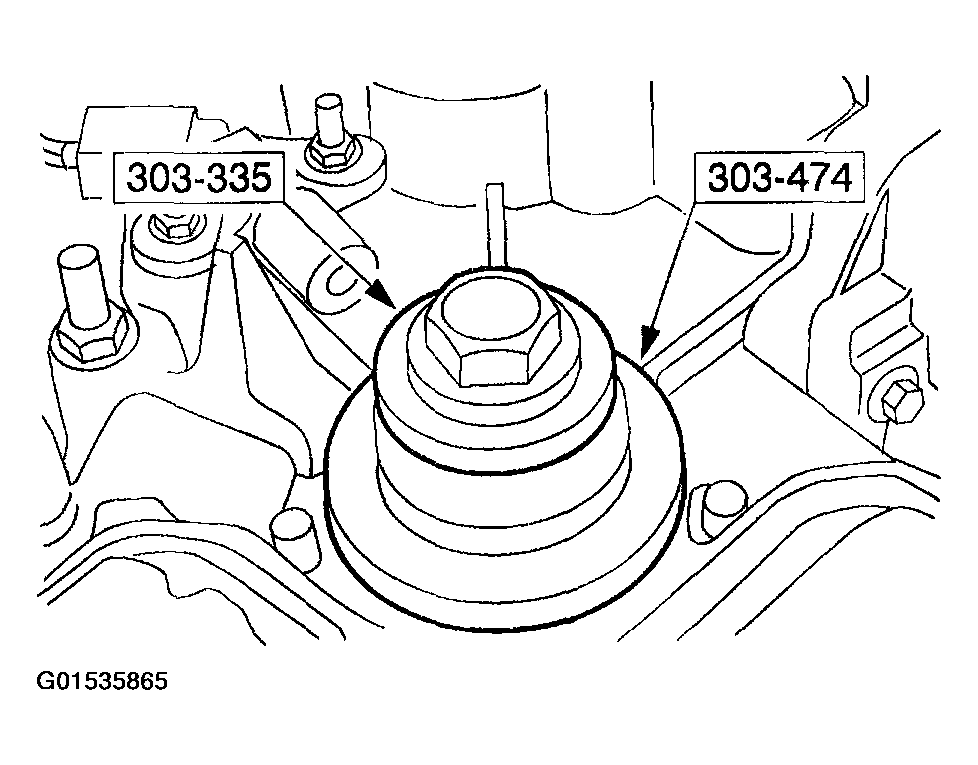

    Fig 1: Installing Crankshaft Front Oil Seal
    G01535865Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the crankshaft front oil seal.
  3. Install the crankshaft damper. For additional information, refer to CRANKSHAFT PULLEY .
