Engine Disassembled View-Upper and Lower Intake Manifolds

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

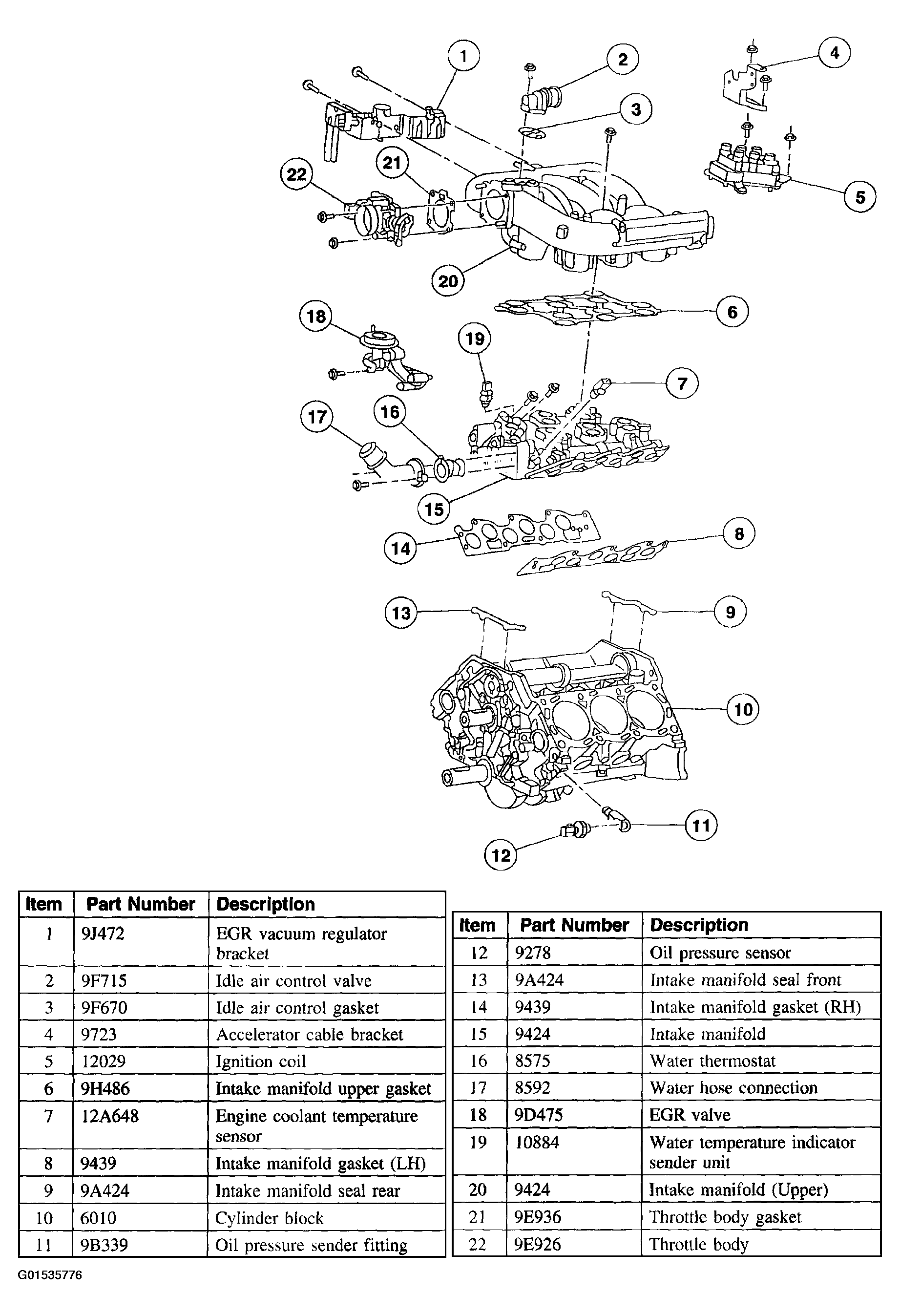

Fig 1: Exploded View Of Engine - Upper And Lower Intake Manifolds
G01535776Courtesy of FORD MOTOR CO.
