Tie Rod End - Inner: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Replace the steering tie rod if the ball stud is loose in the steering control ball stud socket (3A754) or the rod is bent. Replace the front suspension steering ball stud dust seal (3332) if any nicks, cuts or tears are present. Do not attempt to straighten a bent rod.

Position the wheels in the straight-ahead position. Raise and support the vehicle.
Remove the tie rod end castellated nut.
1. Remove the cotter pin.
2. Remove the nut.

  Fig 1: Removing Tie Rod End Castellated Nut
  Courtesy of FORD MOTOR CO.
Using the Pitman Arm Puller, remove the ball stud from the steering sector shaft arm drag link (3304).

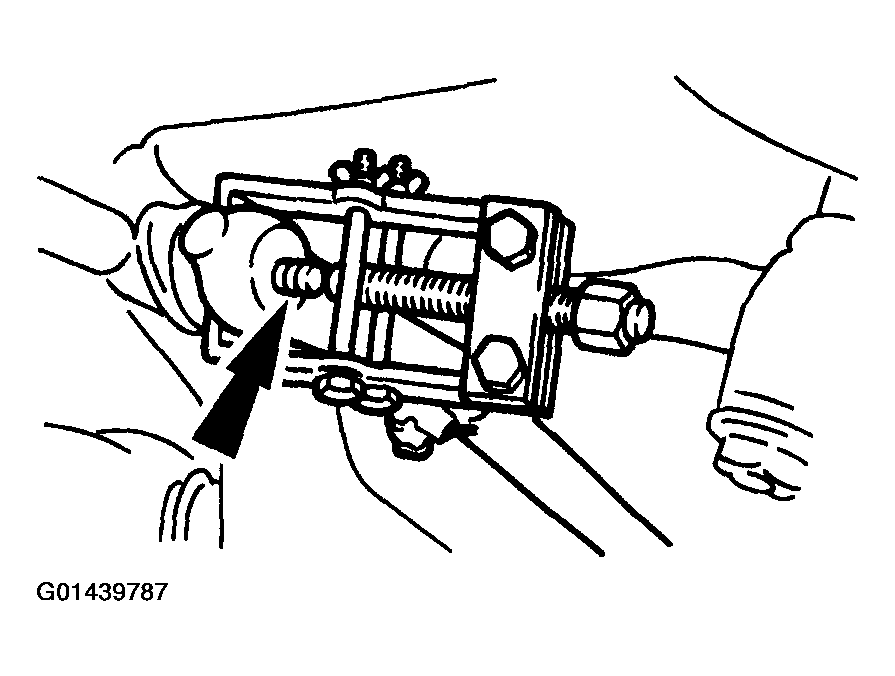

Fig 2: Removing Ball Stud From Steering Sector Shaft Arm Drag Link (3304)
Courtesy of FORD MOTOR CO.
Remove the tie rod.
1. Loosen the bolts on the tie rod adjusting sleeve clamp (3287).
2. Count and record the number of turns required to remove the tie rod end (3A131) from the tie rod adjusting sleeve clamp.
