Steering Gear - E150-E450: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Follow the removal procedure in reverse order.

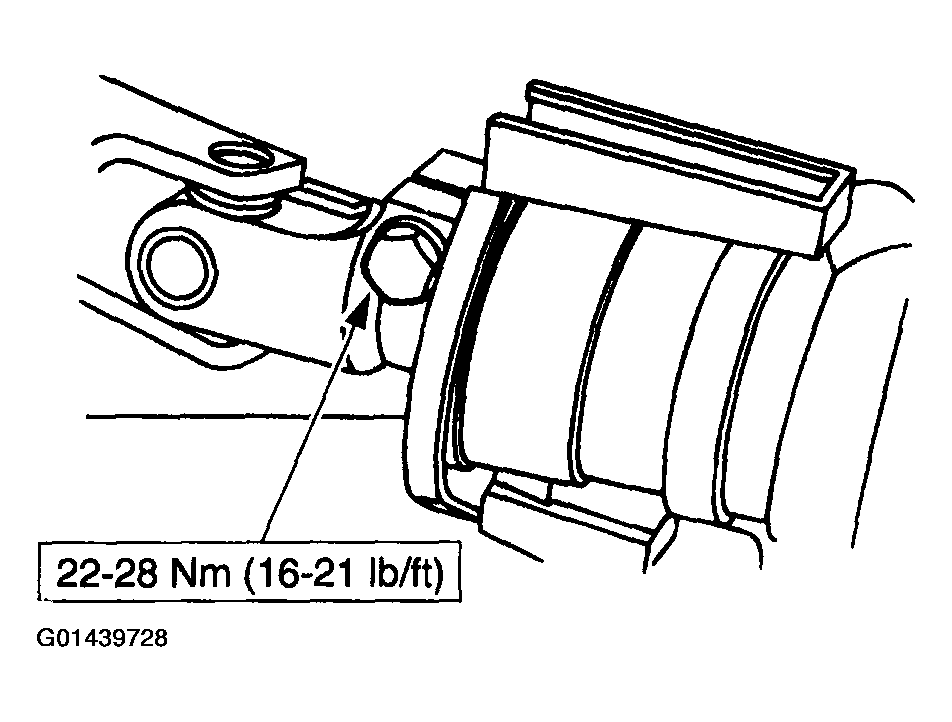

Fig 1: Installing Steering Gear Sector Shaft Arm
Courtesy of FORD MOTOR CO.
Fill purge and leak check the system; for additional information, refer to STEERING SYSTEM-GENERAL INFORMATION .

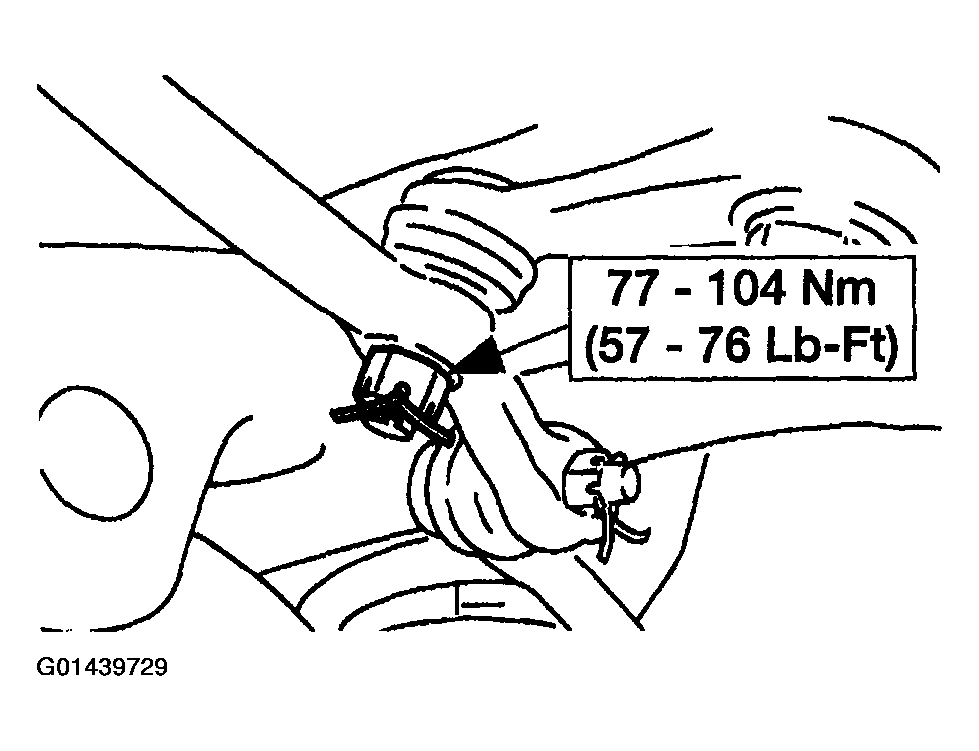

Fig 2: Tightening Fasteners To Torque Specifications (1 Of 4)

Courtesy of FORD MOTOR CO.

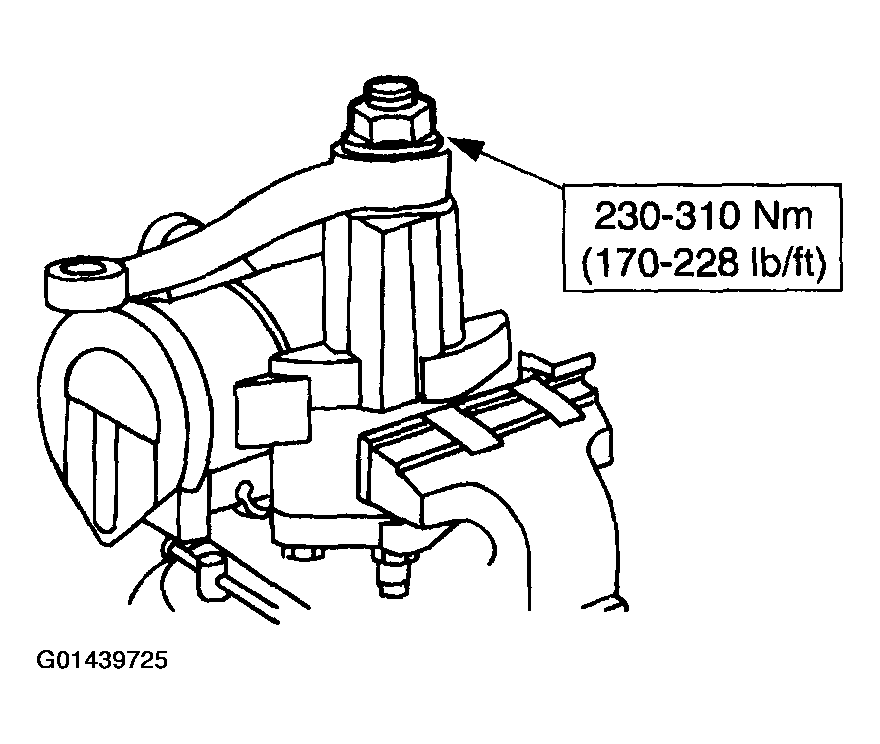

Fig 3: Tightening Fasteners To Torque Specifications (2 Of 4)

Courtesy of FORD MOTOR CO.

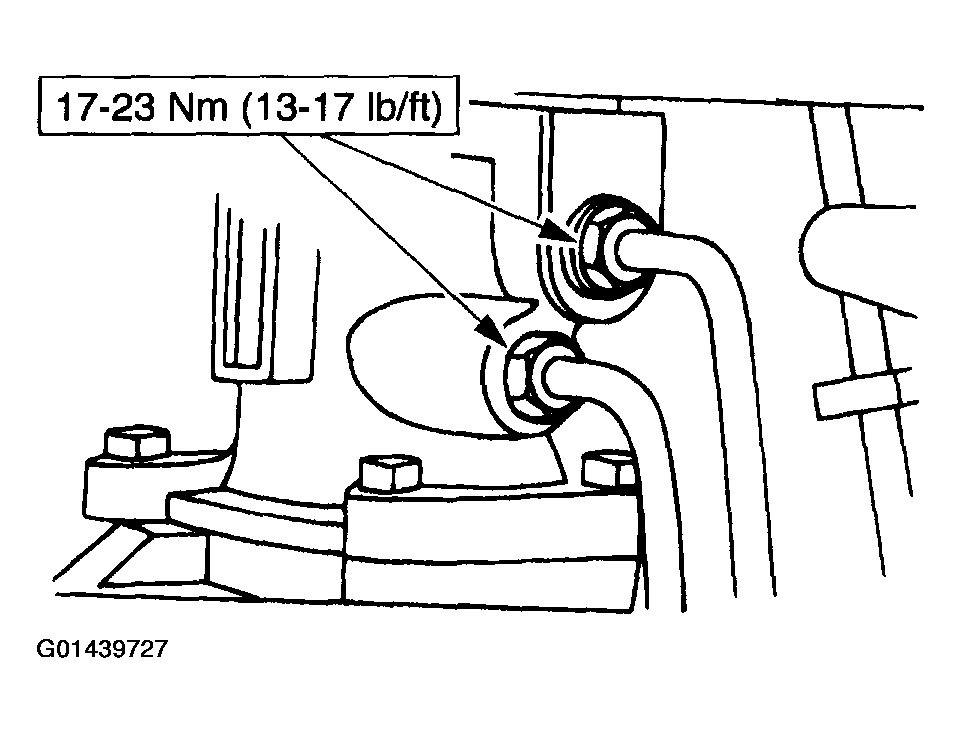

Fig 4: Tightening Fasteners To Torque Specifications (3 Of 4)

Courtesy of FORD MOTOR CO.

Fig 5: Tightening Fasteners To Torque Specifications (4 Of 4)

Courtesy of FORD MOTOR CO.
