Power Steering Pump

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

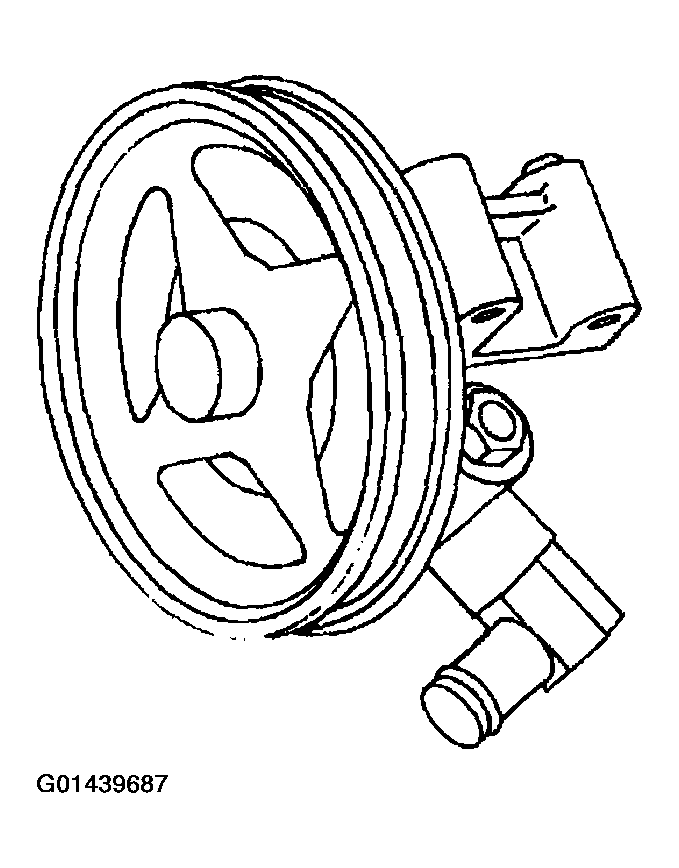

Fig 1: Identifying Power Steering Pump

Courtesy of FORD MOTOR CO.

The CIII power steering pump (3A674) has the following features:

It is a belt-driven, vane-type, power steering pump.
It is mounted directly to the engine block by three bolts.
The power steering pump is replaced as an assembly.
An identification tag attached to the power steering pump indicates the model number and bar code. Refer to these when pump replacement is required.
The power steering pump uses a quick connect fitting for the power steering pressure hose.

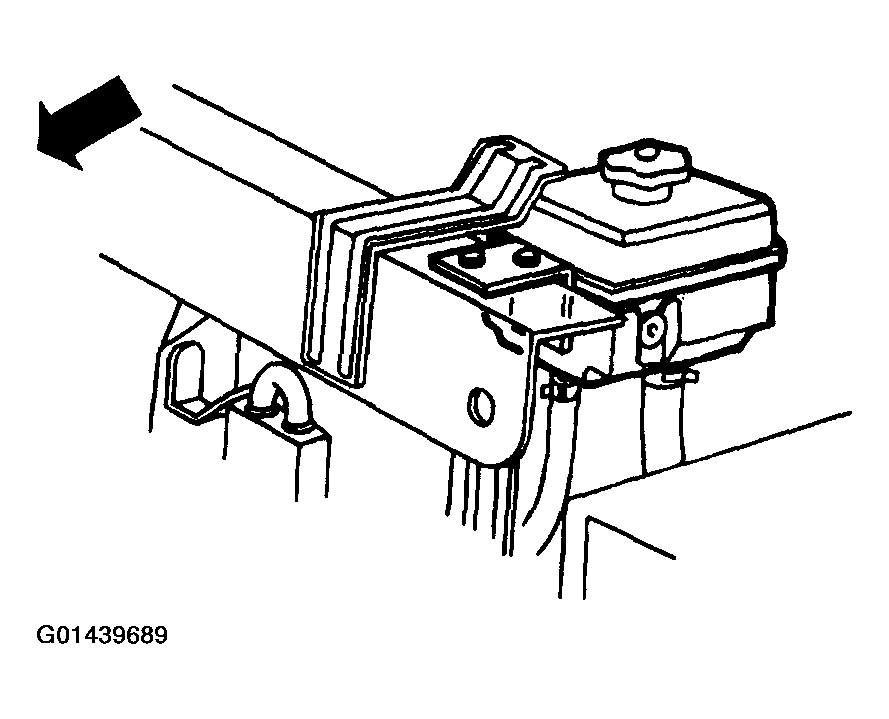

Fig 2: Locating Power Steering Oil Reservoir
Courtesy of FORD MOTOR CO.
The power steering oil reservoir (3A697) is mounted on the LH side of the upper radiator support crossmember.

Fig 3: Identifying Steering Gear
Courtesy of FORD MOTOR CO.
