Axle Housing: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The driveshaft centering socket yoke fits tightly on the rear axle pinion flange pilot. To make sure that the yoke seats squarely on the flange, tighten the bolts evenly in a cross pattern as shown.

To install, reverse the removal procedure.

Fig 1: Installing Rear Axle U-Bolt Assembly

Courtesy of FORD MOTOR CO.

Fig 2: Installing Lower Shock Absorber Nuts And Bolts

Courtesy of FORD MOTOR CO.

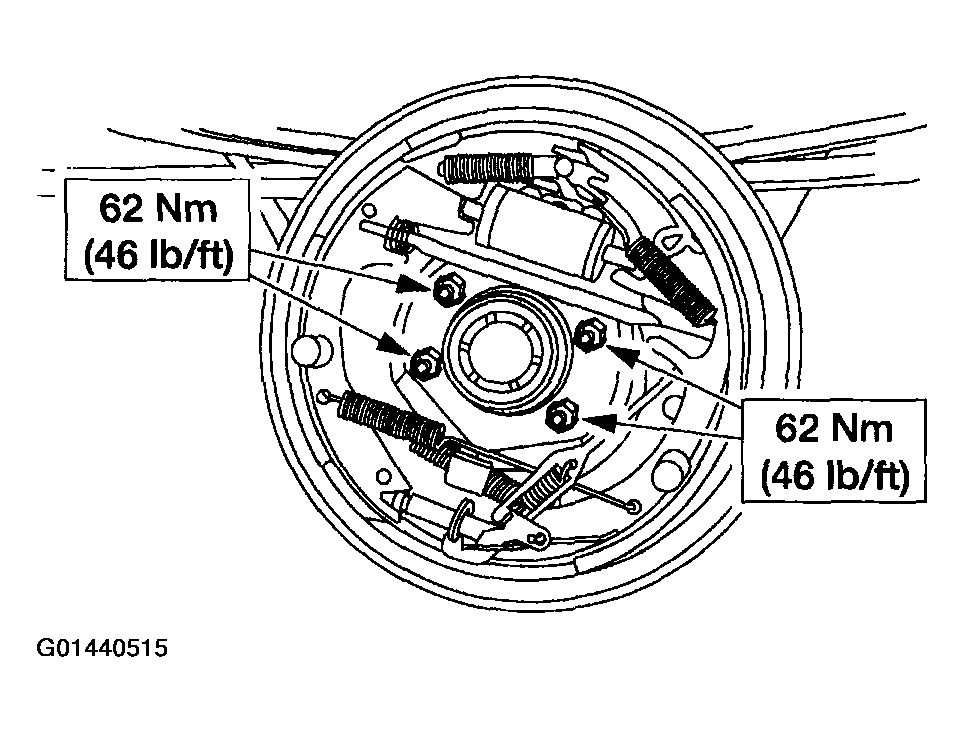

Fig 3: Tightening Back Plate Bolts

Courtesy of FORD MOTOR CO.

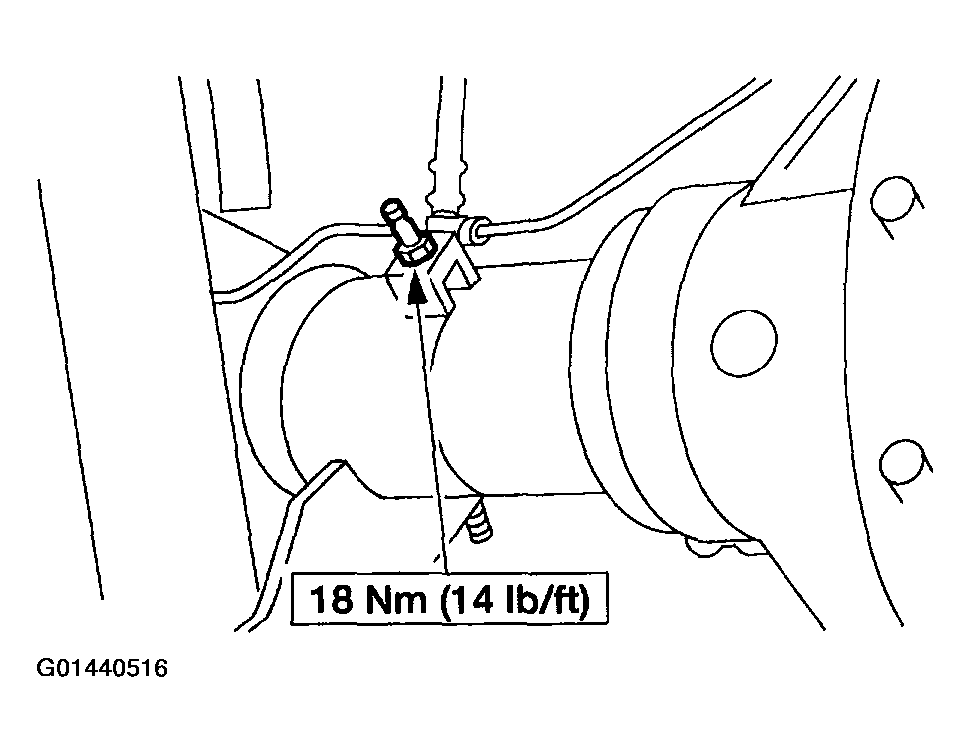

Fig 4: Installing Brake Hose Junction Block Bolt

Courtesy of FORD MOTOR CO.

Fig 5: Identifying Special Tools

Courtesy of FORD MOTOR CO.
