Rear Wheel Bearing and Axle Shaft Oil Seal: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the new rear wheel bearing (1225).
    • Use SAE 75W-140 High Performance Rear Axle Lubricant F1TZ-19580-B or equivalent meeting Ford specification WSL-M2C192-A.
  2. Use the special tools to install the rear wheel bearing.
    Fig 1: Installing Rear Wheel Bearing
    G01440411Courtesy of FORD MOTOR CO.
  3. Lubricate the lip of the new wheel bearing oil seal.
    • Use Premium Long-Life Grease XG-1-C or equivalent meeting Ford specification ESA-M1C75-B.
  4. Using the special tools, install the wheel bearing oil seal.

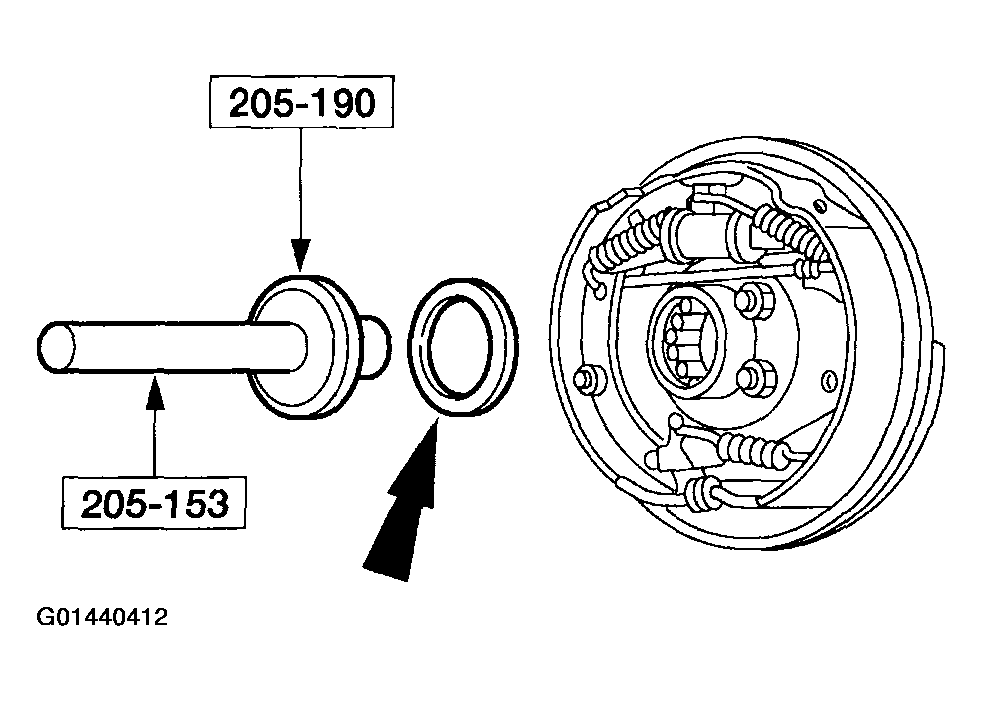

    Fig 2: Installing Wheel Bearing Oil Seal
    G01440412Courtesy of FORD MOTOR CO.
  5. Install the axle shaft. For additional information, refer to AXLE SHAFT .
