Drive Pinion Seal: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the pinion flange (4851). For additional information, refer to DRIVE PINION FLANGE .
  2. Using a screwdriver, force the metal flange of the rear axle drive pinion seal (4676) up and strike it with a hammer.
    Fig 1: Forcing Metal Flange Of Rear Axle Drive Pinion Seal Using Screwdriver
    G01440428Courtesy of FORD MOTOR CO.
  3. Install gripping pliers, and remove the seal.

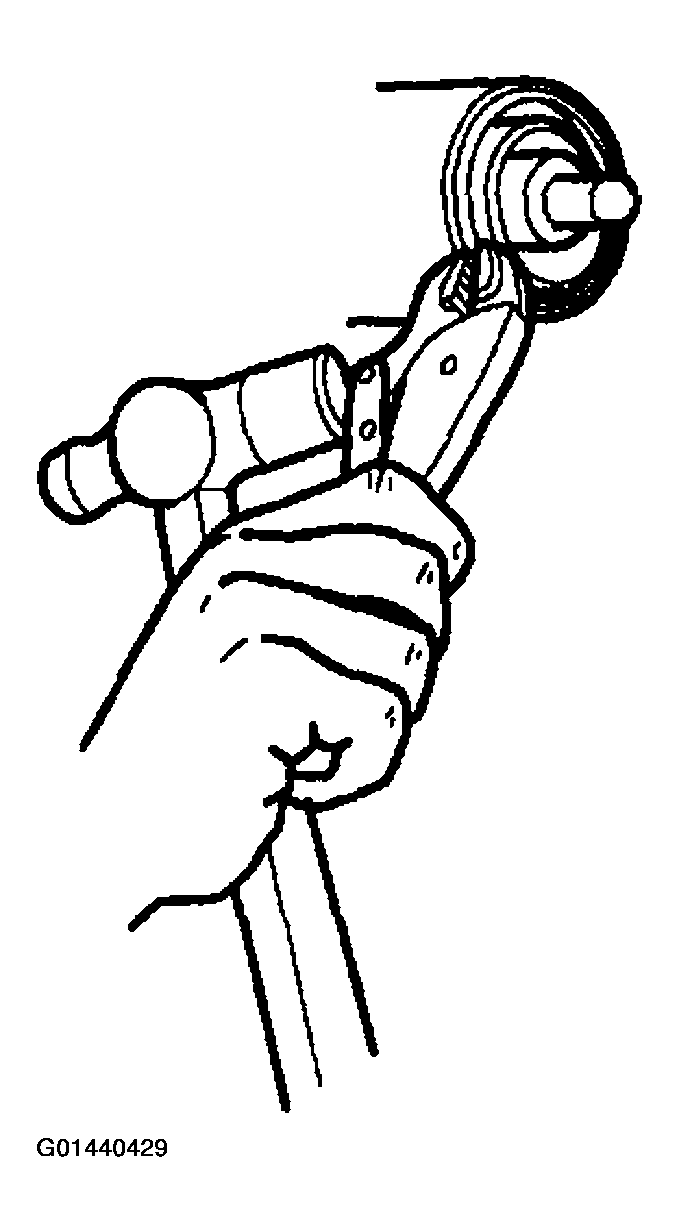

Fig 2: Removing Seal
G01440429Courtesy of FORD MOTOR CO.
