Differential Case and Ring Gear - Conventional: Assembly

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use SAE 75W-140 High Performance Rear Axle Lubricant F1TZ-19580-B meeting Ford specification WSL-M2C192-A to lubricate the differential side gear thrust washer (4228) and the differential side gear journals.
    • Position the differential side gear thrust washer on the differential side gear.

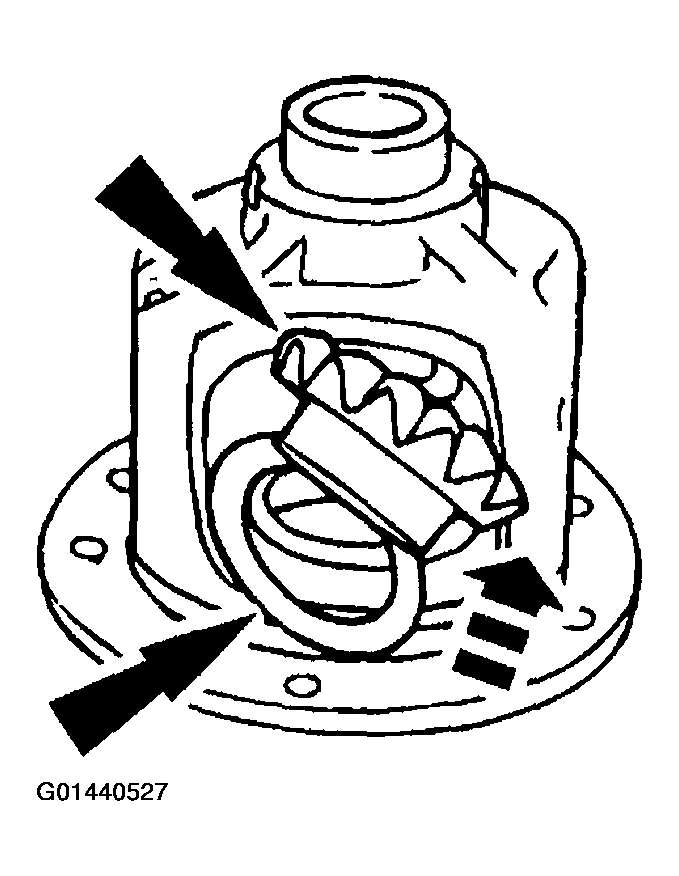

    Fig 1: Positioning Differential Side Gear Thrust Washer On Differential Side Gear
    G01440527Courtesy of FORD MOTOR CO.
  2. Position the differential side gear.
    Fig 2: Positioning Differential Side Gear
    G01440528Courtesy of FORD MOTOR CO.
  3. Use SAE 75W-140 High Performance Rear Axle Lubricant F1TZ-19580-B or equivalent meeting Ford specification WSL-M2C192-A to lubricate the differential side gear thrust washer and the differential pinion gear and assemble.
    Fig 3: Installing Differential Side Gear Thrust Washer And Differential Pinion Gear
    G01440529Courtesy of FORD MOTOR CO.
  4. Engage the differential pinion gear opposite the differential side gear.

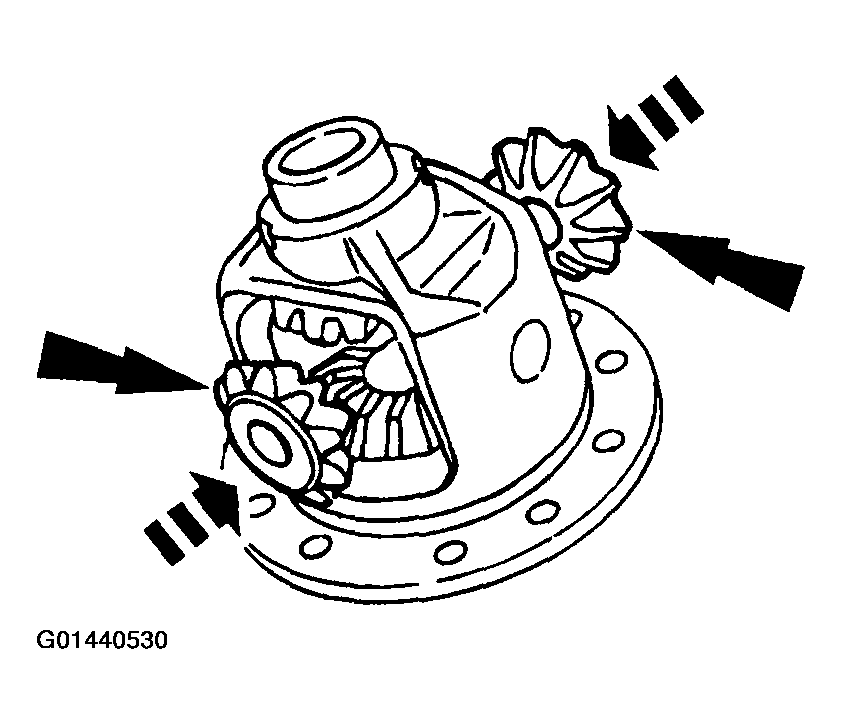

    Fig 4: Engaging Differential Pinion Gear
    G01440530Courtesy of FORD MOTOR CO.
  5. Rotate the differential pinion gear to align with the differential pinion shaft bore.

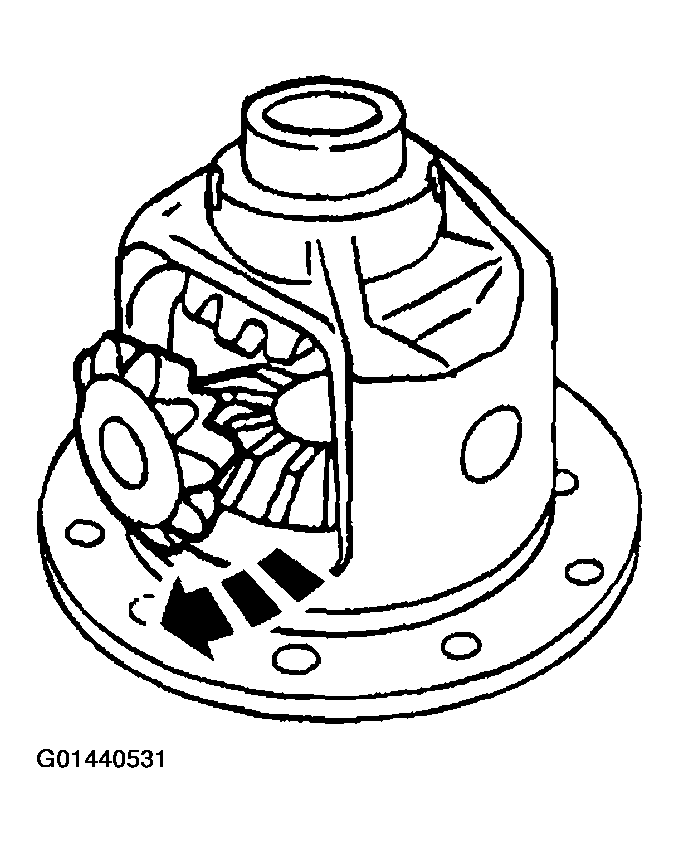

    Fig 5: Rotating Differential Pinion Gear
    G01440531Courtesy of FORD MOTOR CO.
  6. Insert the differential pinion shaft.
    • Align the hole in the differential pinion shaft with the hole in the differential case.

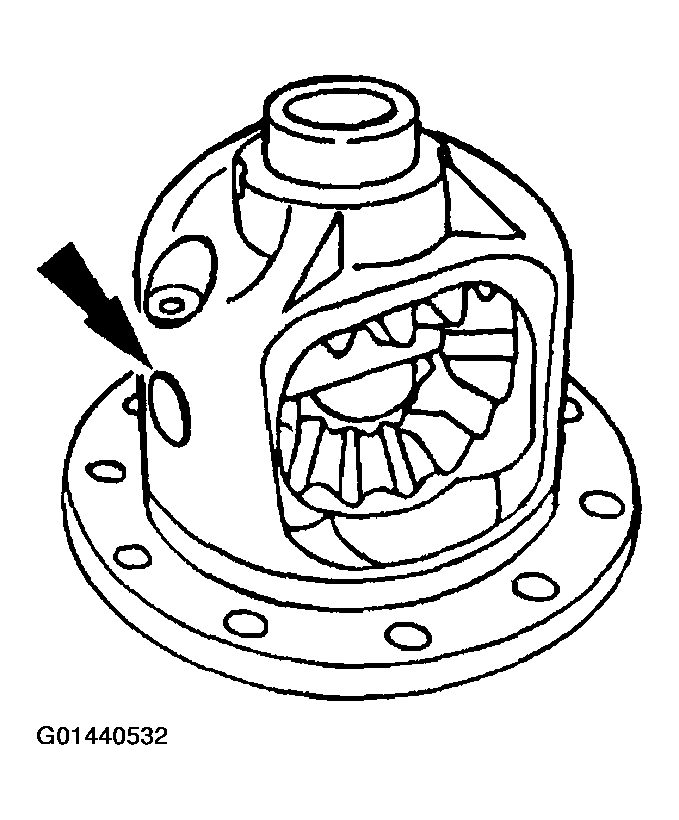

    Fig 6: Inserting Differential Pinion Shaft
    G01440532Courtesy of FORD MOTOR CO.
    7. NOTE: If a new pinion shaft lock bolt is unavailable, coat the threads with Threadlock® and Sealer EOAZ-19554-AA or equivalent meeting Ford specification WSK-M2G315-A5 prior to installation.
    Fig 7: Installing Differential Pinion Shaft Lock Bolt
    G01440533Courtesy of FORD MOTOR CO.
  7. Install a new differential pinion shaft lock bolt and tighten finger-tight.
  8. Using the special tool, install the new differential bearings on the differential case.
    Fig 8: Installing Differential Bearings On Differential Case
    G01440534Courtesy of FORD MOTOR CO.
    9. CAUTION: Make sure that the notches on the case flange and the anti-lock speed sensor ring are aligned.

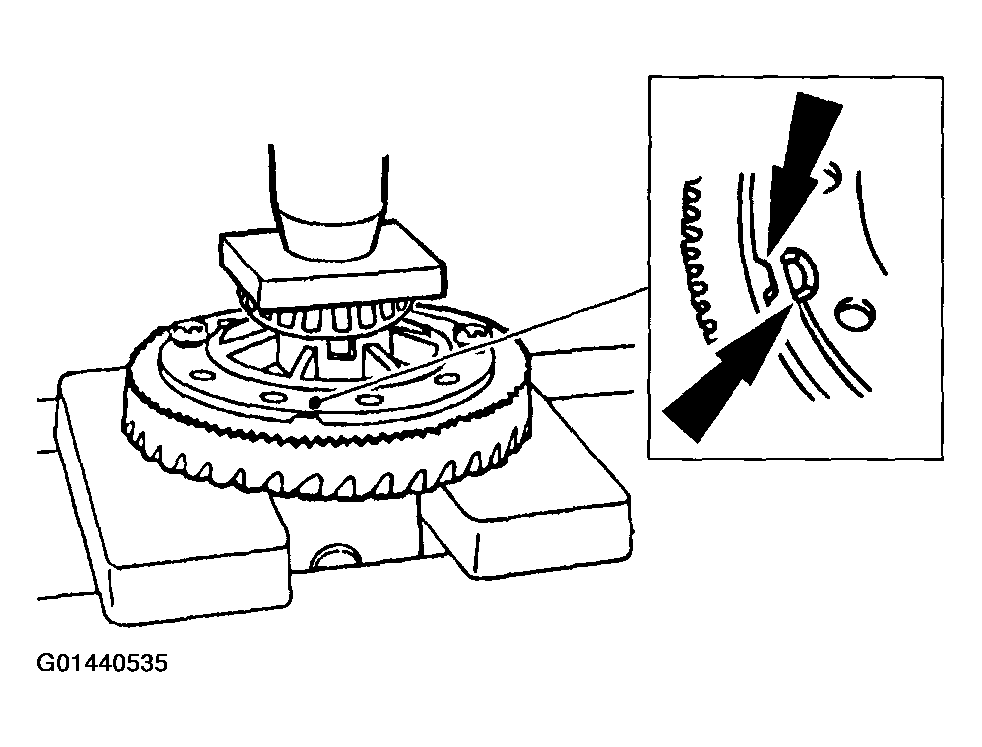

    Fig 9: Pressing Anti-Lock Speed Sensor Ring And Ring Gear On Differential Case
    G01440535Courtesy of FORD MOTOR CO.
  9. Press the new anti-lock speed sensor ring and the ring gear on the differential case.
  10. Install the ring gear bolts.
    • Apply Stud and Bearing Mount EOAZ-19554-B or equivalent meeting Ford specification WSK-M2G349-A1 to ring gear bolts.
    Fig 10: Installing Ring Gear Bolts
    G01440536Courtesy of FORD MOTOR CO.
  11. Install the differential case. For additional information, refer to DIFFERENTIAL CASE .
