Driveshaft - Rear, Three-Piece: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

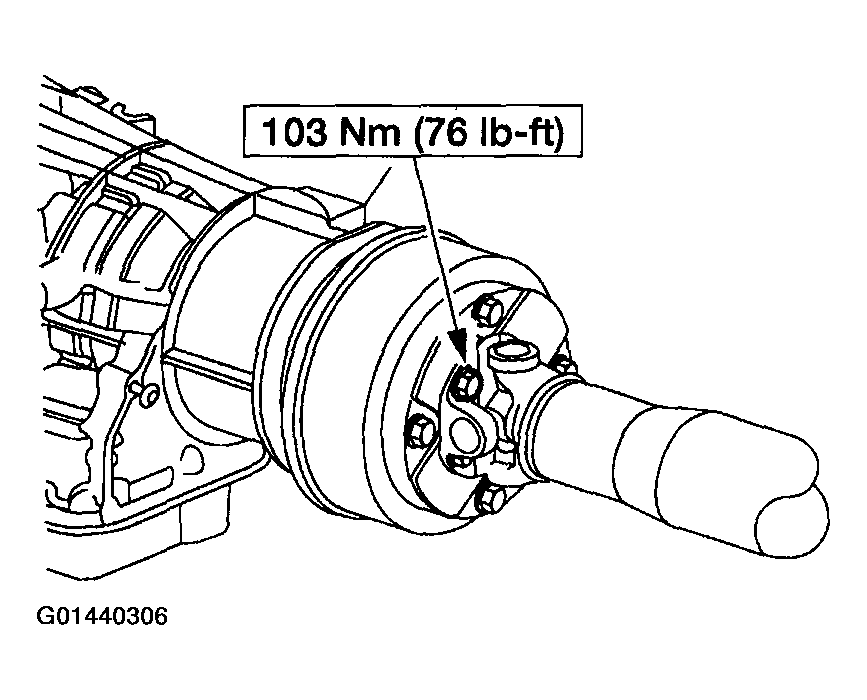

Connect the front driveshaft to the transmission. Install the new bolts.
- Hand-tighten only; do not tighten at this time.
Fig 1: Connecting Front Driveshaft To Transmission
Courtesy of FORD MOTOR CO.
Position the center support bearing and install the bolts.
- Hand-tighten only; do not tighten at this time.
Fig 2: Positioning Center Support Bearing And Installing Bolts
Courtesy of FORD MOTOR CO.

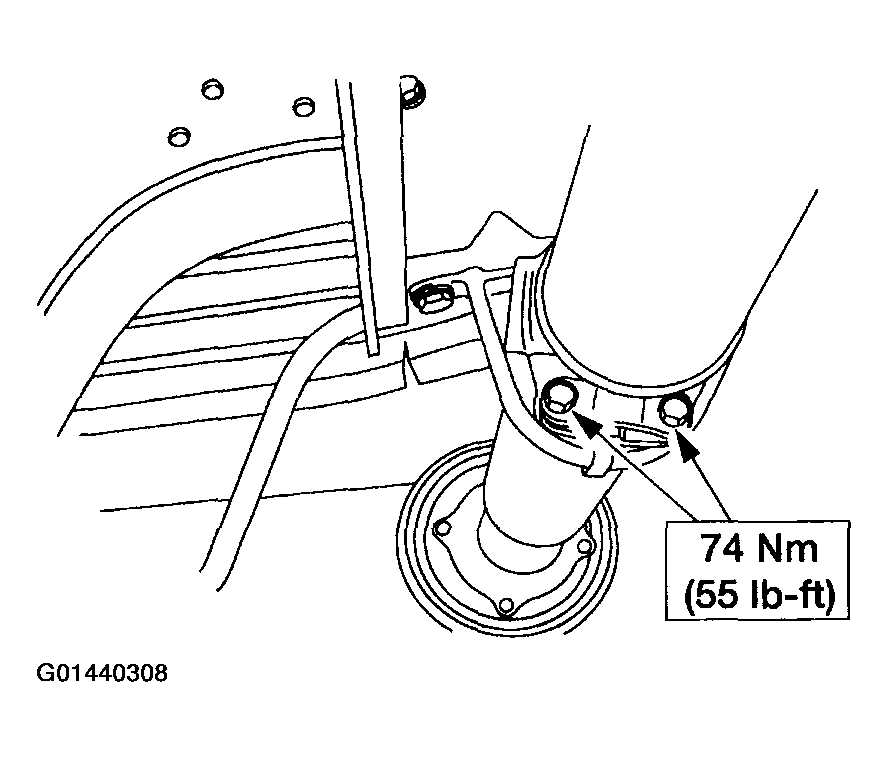

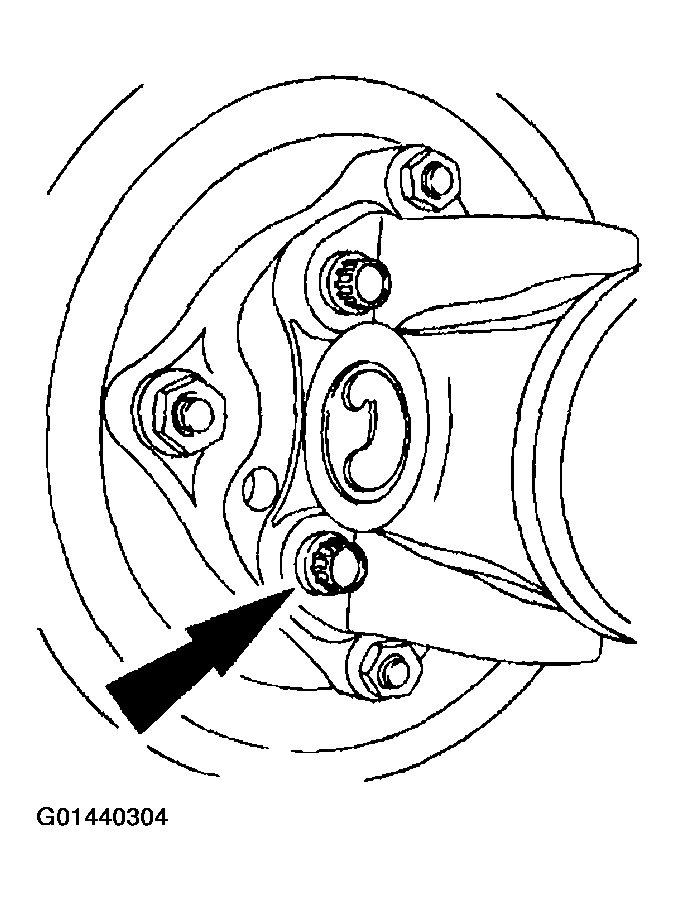

Tighten the driveshaft to parking brake drum bolts and the driveshaft center bearing bolts.

Fig 3: Tightening Driveshaft To Parking Brake Drum Bolts And Driveshaft Center Bearing Bolts
Courtesy of FORD MOTOR CO.
Position the rear driveshaft assembly and install the center support bearing bolts.
- Hand-tighten only; do not tighten at this time.
Fig 4: Installing Center Support Bearing Bolts
Courtesy of FORD MOTOR CO.
Connect the rear driveshaft assembly to the front driveshaft. Install the new retainers and bolts.

Fig 5: Connecting Rear Driveshaft Assembly To Front Driveshaft
Courtesy of FORD MOTOR CO.
Connect the rear driveshaft assembly to the rear axle. Install the new retainers and bolts.

Fig 6: Connecting Rear Driveshaft Assembly To Rear Axle
Courtesy of FORD MOTOR CO.

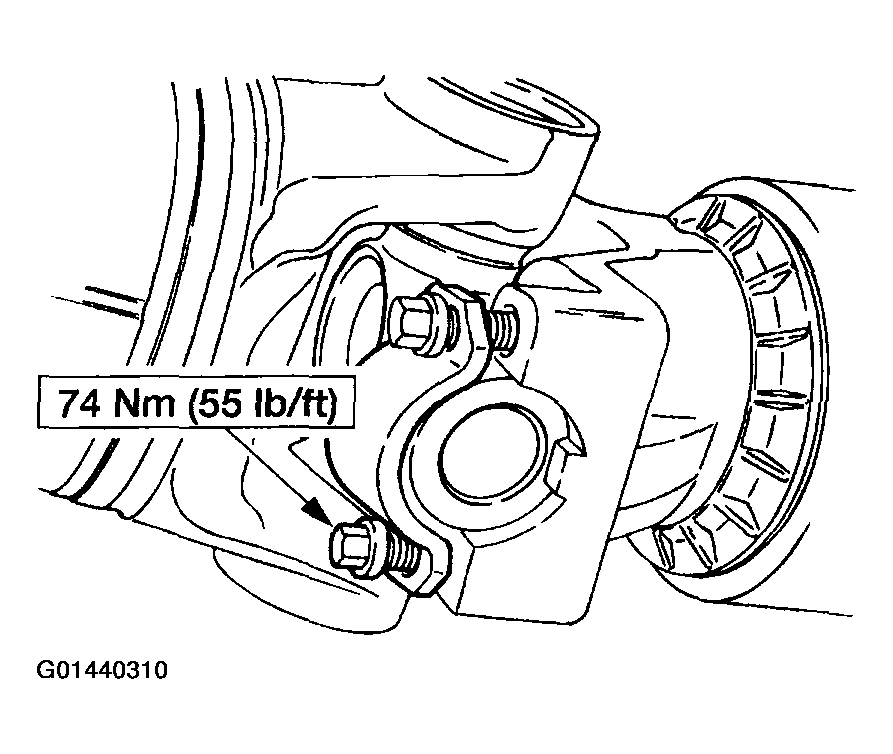

Tighten the driveshaft center support bearing bolts.

Fig 7: Tightening Driveshaft Center Support Bearing Bolts

Courtesy of FORD MOTOR CO.
