Driveshaft - Rear Two-Piece: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Using the index-marks, position the driveshaft.
Install the four coupling shaft bolts.
- Release the parking brake.

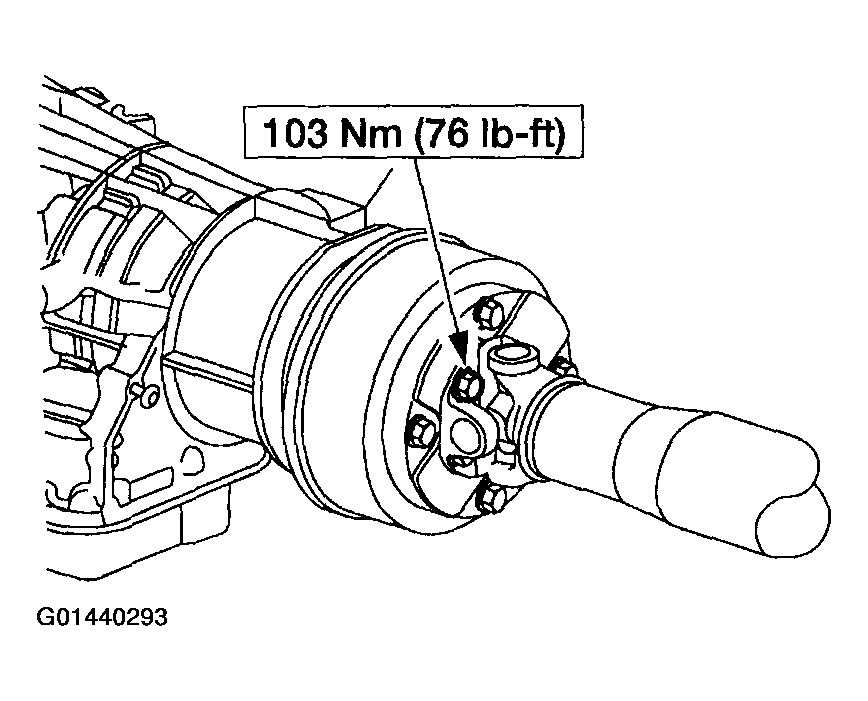

Fig 1: Installing Coupling Shaft Bolts
Courtesy of FORD MOTOR CO.
Support the coupling shaft, and position the center bearing and bracket.

Fig 2: Positioning Center Bearing And Bracket
Courtesy of FORD MOTOR CO.
Install the center bearing bracket bolts.

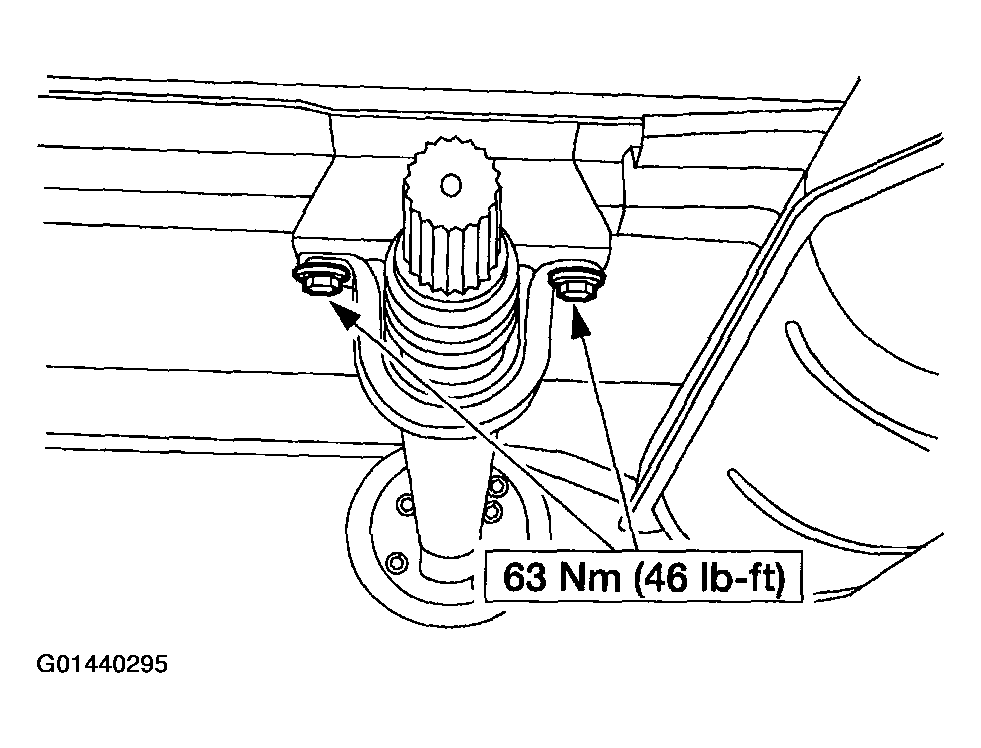

Fig 3: Installing Center Bearing Bracket Bolts
Courtesy of FORD MOTOR CO.
Install the rear driveshaft section.

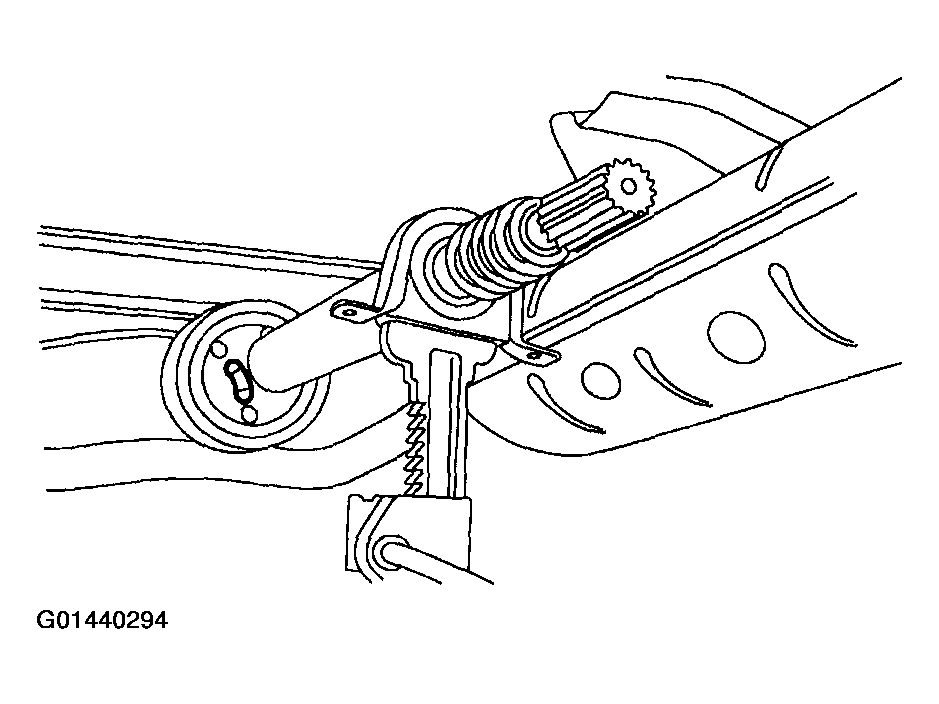

Fig 4: Installing Rear Driveshaft Section
Courtesy of FORD MOTOR CO.
Align the index-marks and install the four driveshaft-to-rear axle bolts.
- If new bolts are not available, coat the threads of the original bolts with sealer.

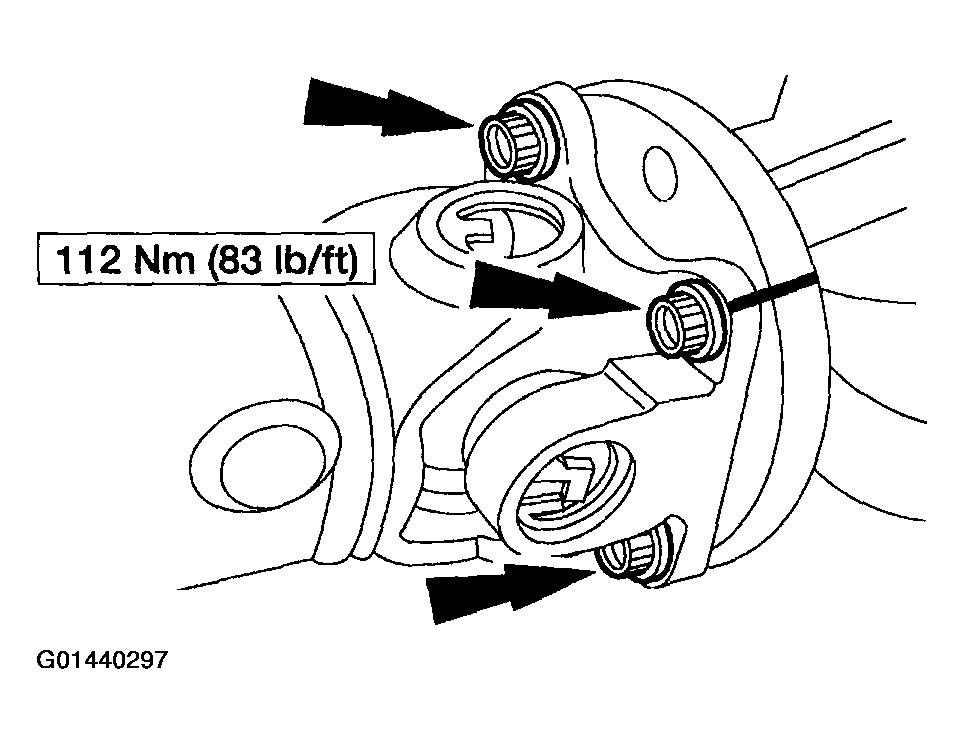

Fig 5: Installing Driveshaft-To-Rear Axle Bolts
Courtesy of FORD MOTOR CO.
Remove the supports, and lower the vehicle.
