Universal Joints

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

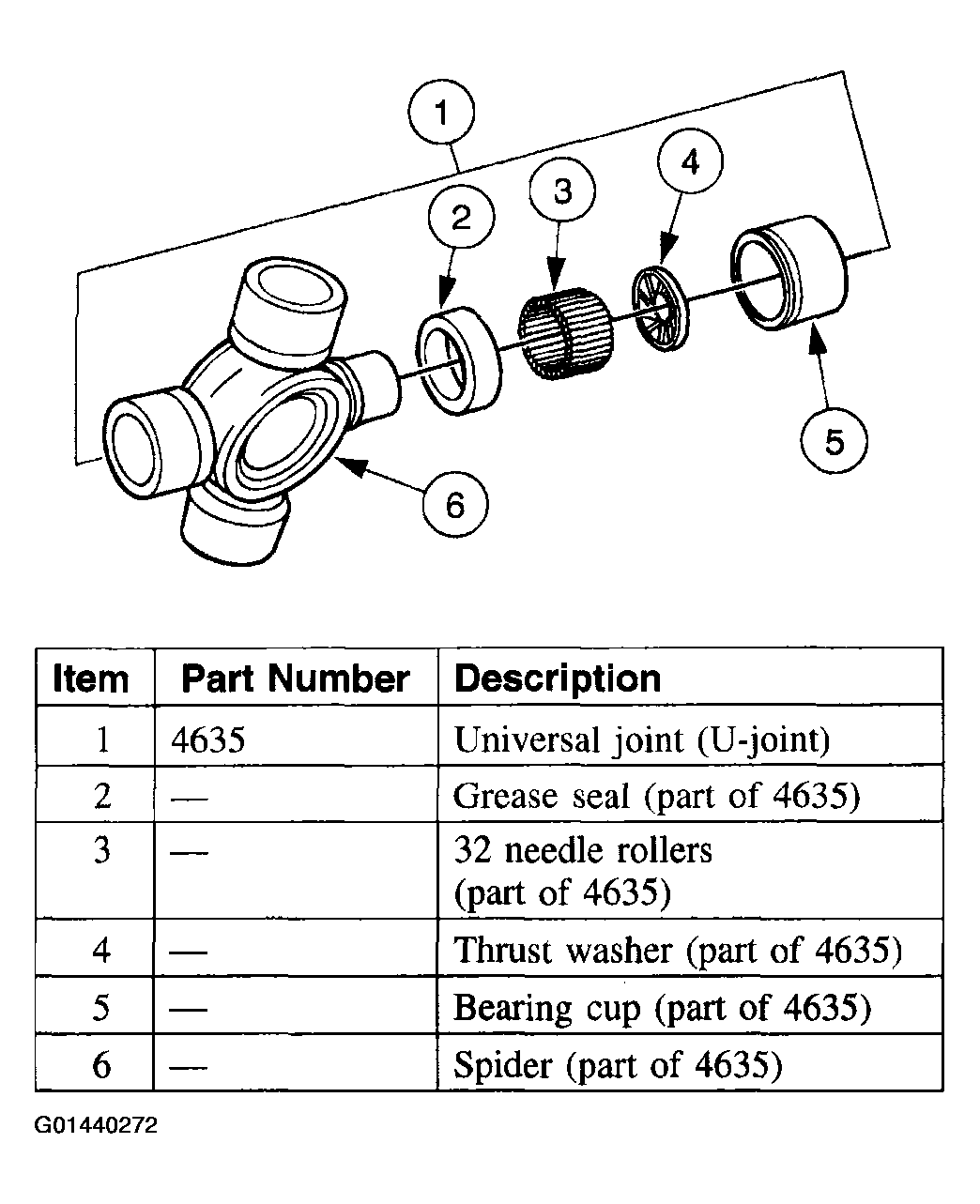

Fig 1: Identifying Universal Joints Components

Courtesy of FORD MOTOR CO.

Universal joints have the following:

A lubed-for-life design.
Equipped with nylon thrust washers located at the base of each bearing cup, which control end play, positions the needle bearings and improves grease movement.
Size 1350 for E150-F350, size 1410 for E450, and size 1480 for E550.

Fig 2: Identifying Universal Joints Dimension

Courtesy of FORD MOTOR CO.

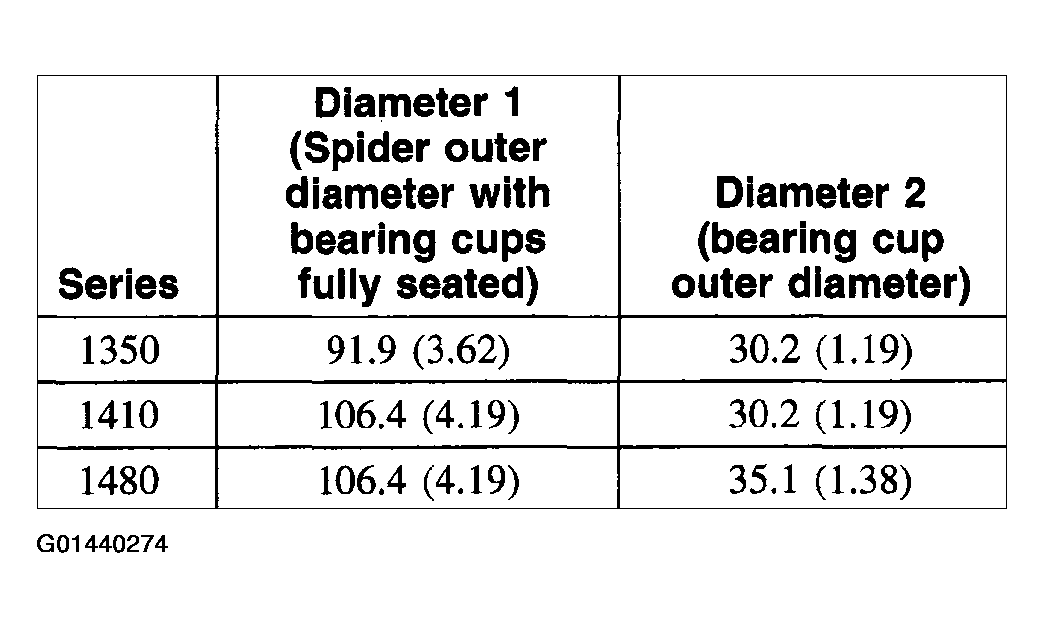

Fig 3: Universal Joint (U-Joint) Identification Chart

Courtesy of FORD MOTOR CO.
