Sensor-Front, 4x4: Removal

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the front brake anti-lock sensor electrical connector.
    Fig 1: Disconnecting Front Brake Anti-Lock Sensor Electrical Connector
    G02185706Courtesy of FORD MOTOR CO.
  2. Remove the front disc brake rotor shield (2K005); Refer to BACKING PLATE .
  3. Remove the (A) front brake anti-lock sensor bolts and the (B) front brake anti-lock sensor (2C204).

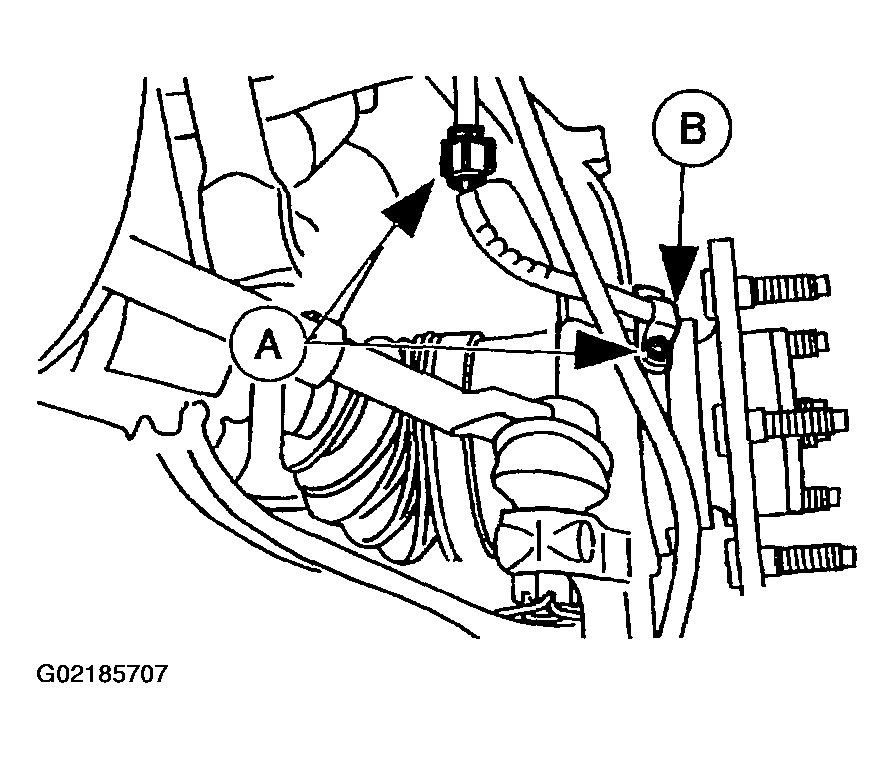

    Fig 2: Removing Front Brake Anti-Lock Sensor
    G02185707Courtesy of FORD MOTOR CO.
