Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
  1. Disconnect the battery ground cable.
  2. Disconnect the anti-lock brake control module electrical connector.

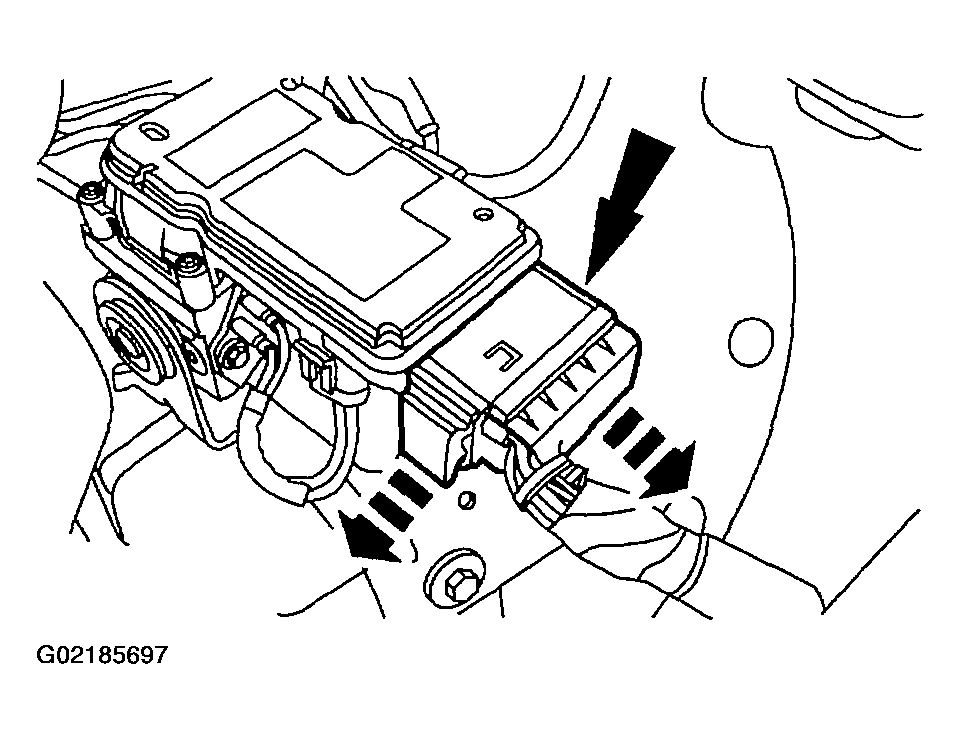

    Fig 1: Disconnecting Anti-Lock Brake Control Module Electrical Connector
    G02185697Courtesy of FORD MOTOR CO.
  3. Disconnect the pump motor electrical connector from the anti-lock brake control module.

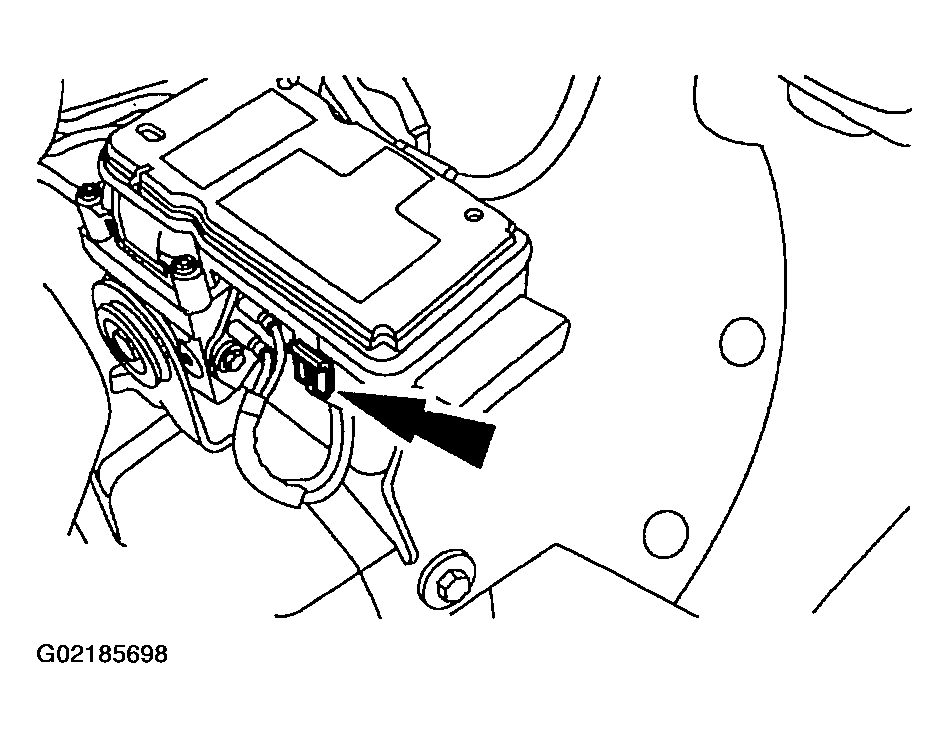

    Fig 2: Disconnecting Pump Motor Electrical Connector From Anti-Lock Brake Control Module
    G02185698Courtesy of FORD MOTOR CO.
  4. Remove the screws and the anti-lock brake control module.

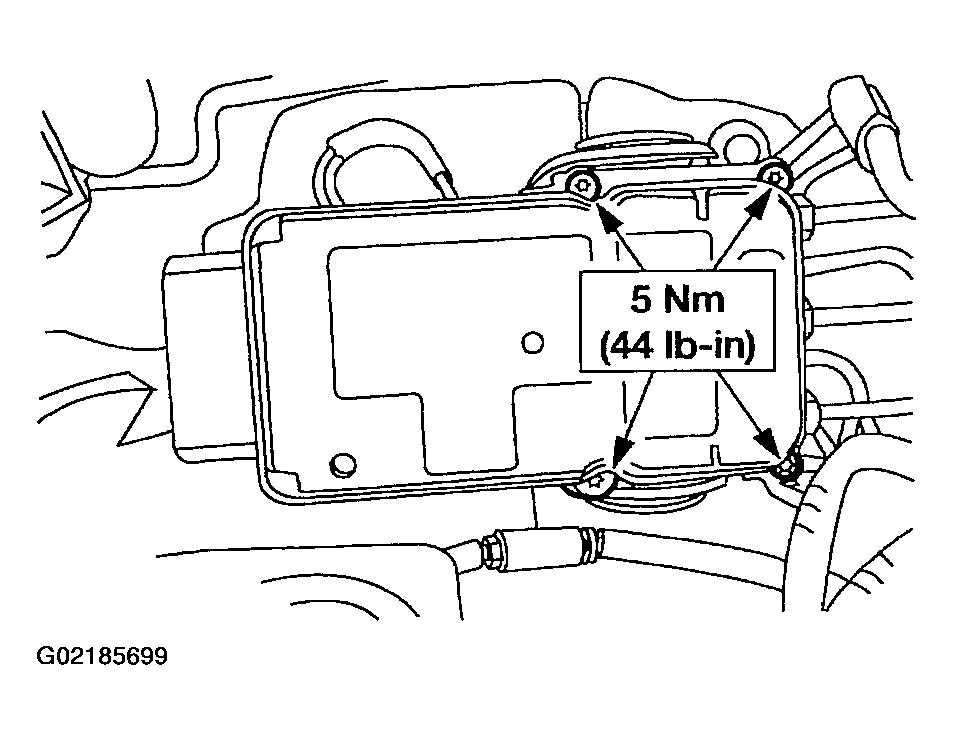

    Fig 3: Removing Screws And Anti-Lock Brake Control Module
    G02185699Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
