Symptom Chart

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to ANTI-LOCK BRAKES for connector numbers stated in the Pinpoint Tests.

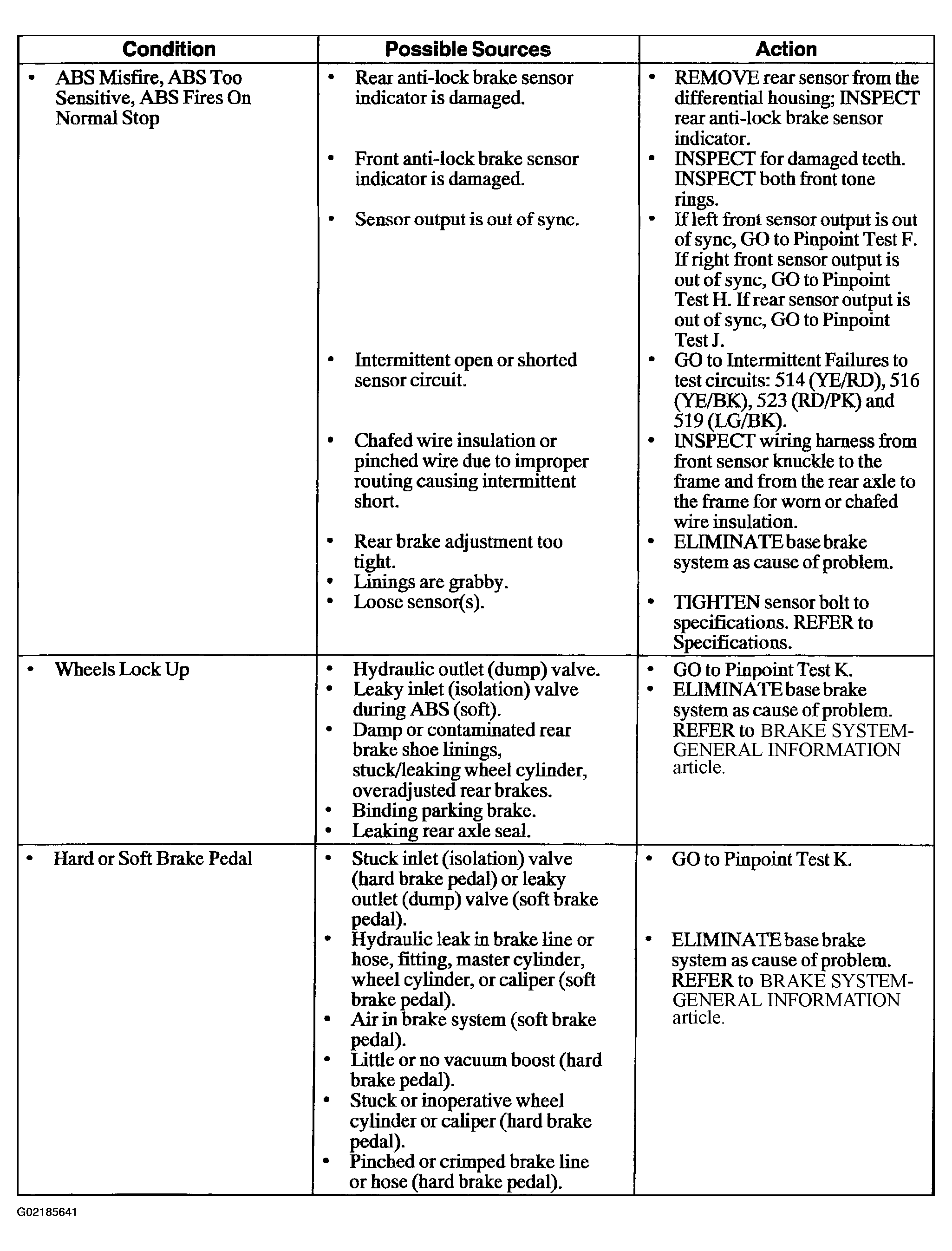

Fig 1: Symptom Chart (1 Of 3)

Courtesy of FORD MOTOR CO.

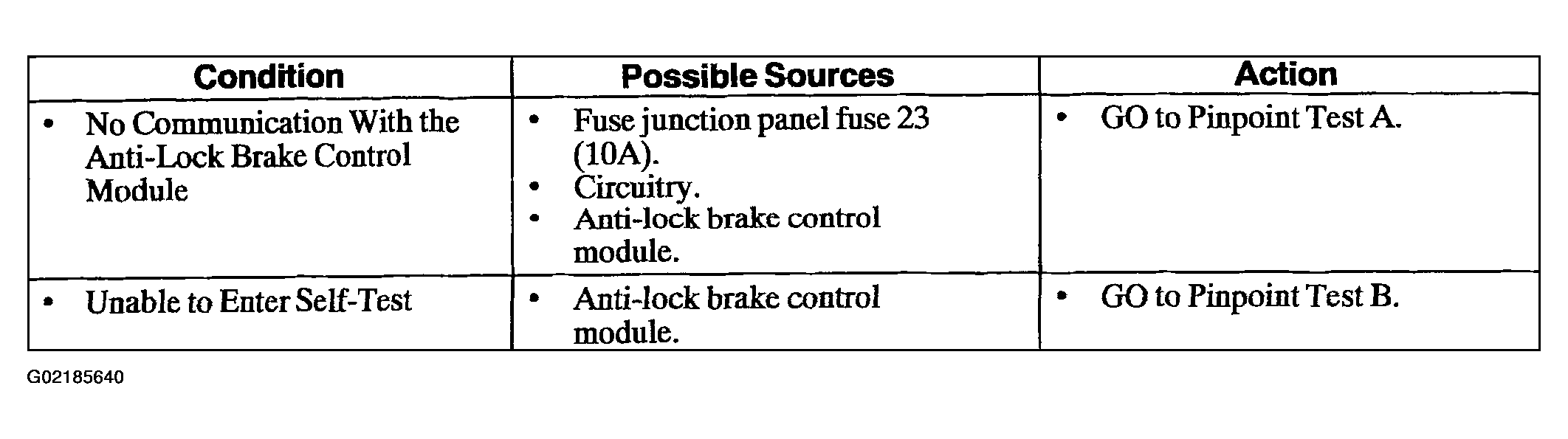

Fig 2: Symptom Chart (2 Of 3)

Courtesy of FORD MOTOR CO.

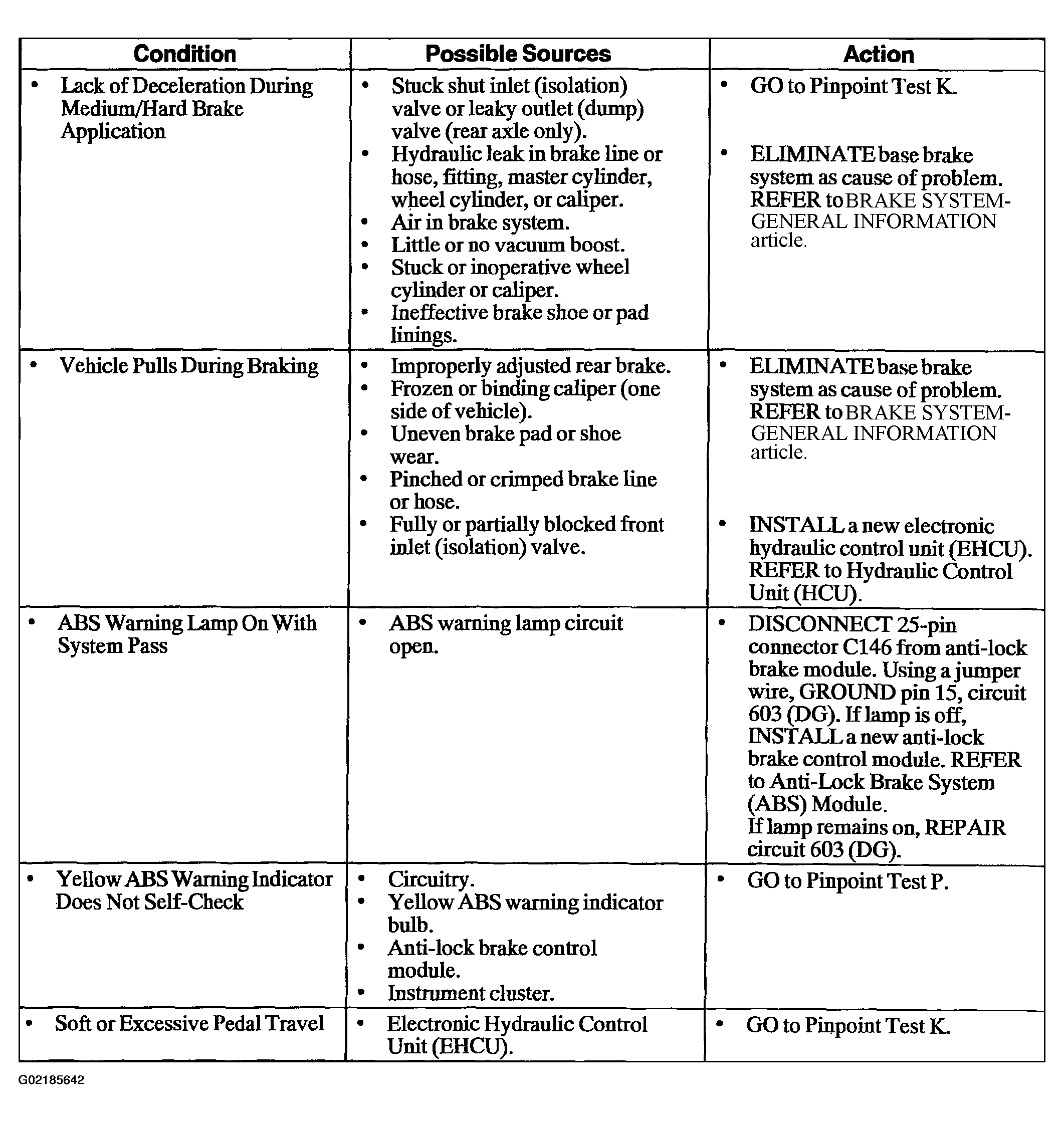

Fig 3: Symptom Chart (3 Of 3)

Courtesy of FORD MOTOR CO.
