Pinpoint Test O: DTC: C1169-Excessive Dump Time

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Pinpoint Test O: DTCs C1184 - ABS System Time-Out, C1222 - Wheel Speed Error (Dynamic) Chart (O1)
G02185684Courtesy of FORD MOTOR CO.

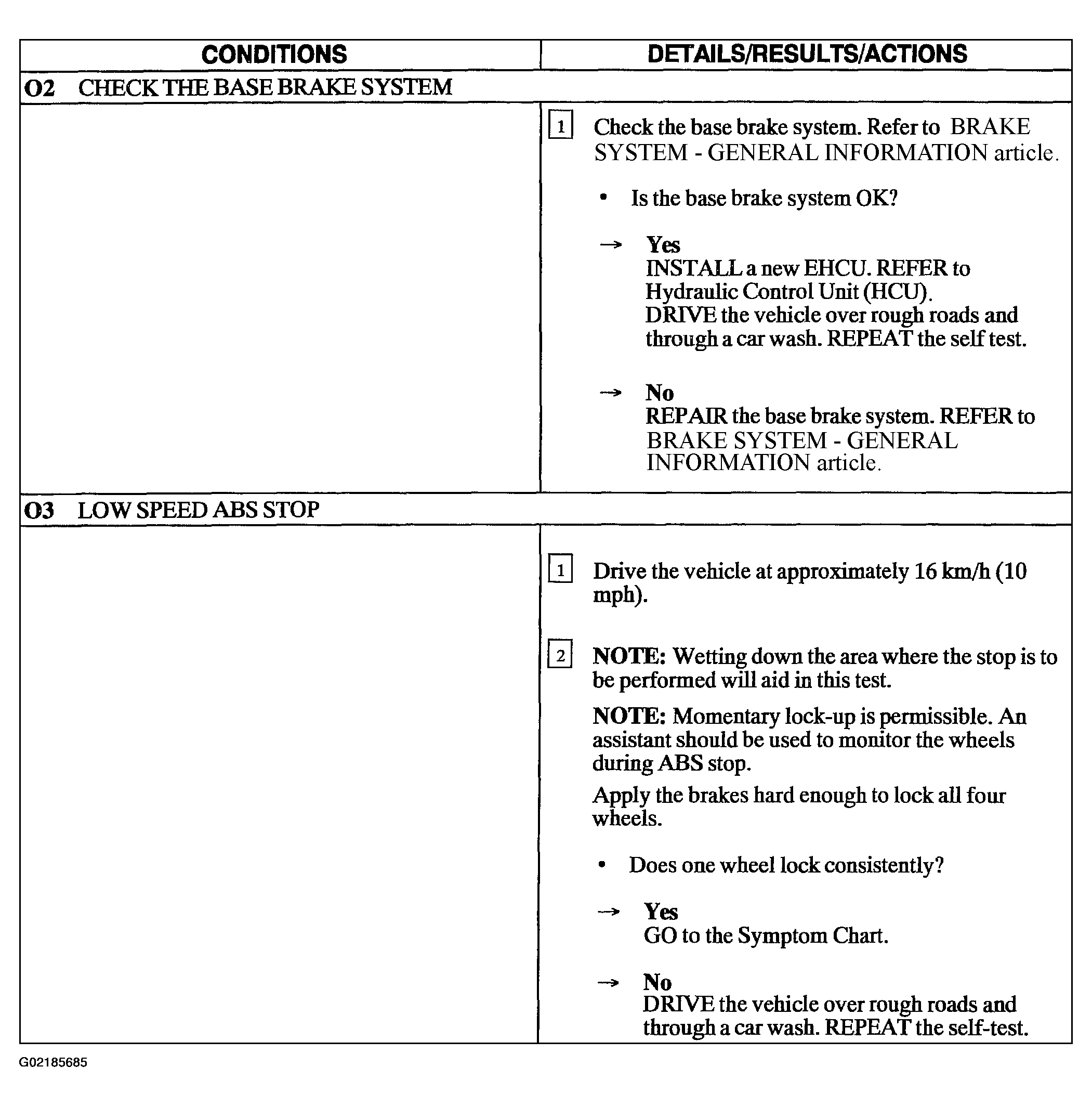

Fig 2: Pinpoint Test O: DTCs C1184 - ABS System Time-Out, C1222 - Wheel Speed Error (Dynamic) Chart (O2 & O3)
G02185685Courtesy of FORD MOTOR CO.
