Pinpoint Test I: DTC:1230-Rear Anti-Lock Brake Sensor (Electrical/Static)

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

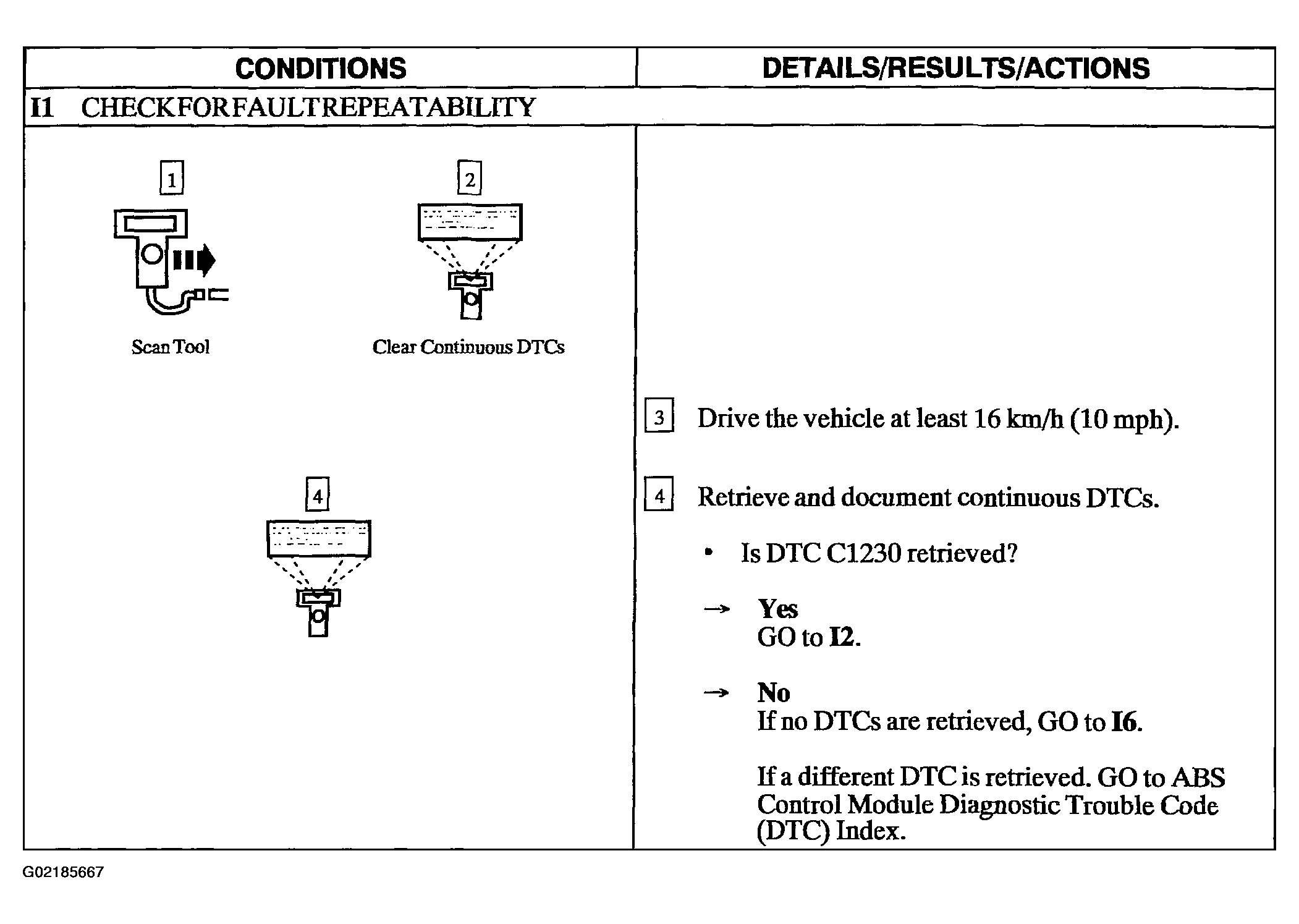

Fig 1: Pinpoint Test I: DTC:1230 - Rear Anti-Lock Brake Sensor (Electrical/Static) Chart (I1)

Courtesy of FORD MOTOR CO.

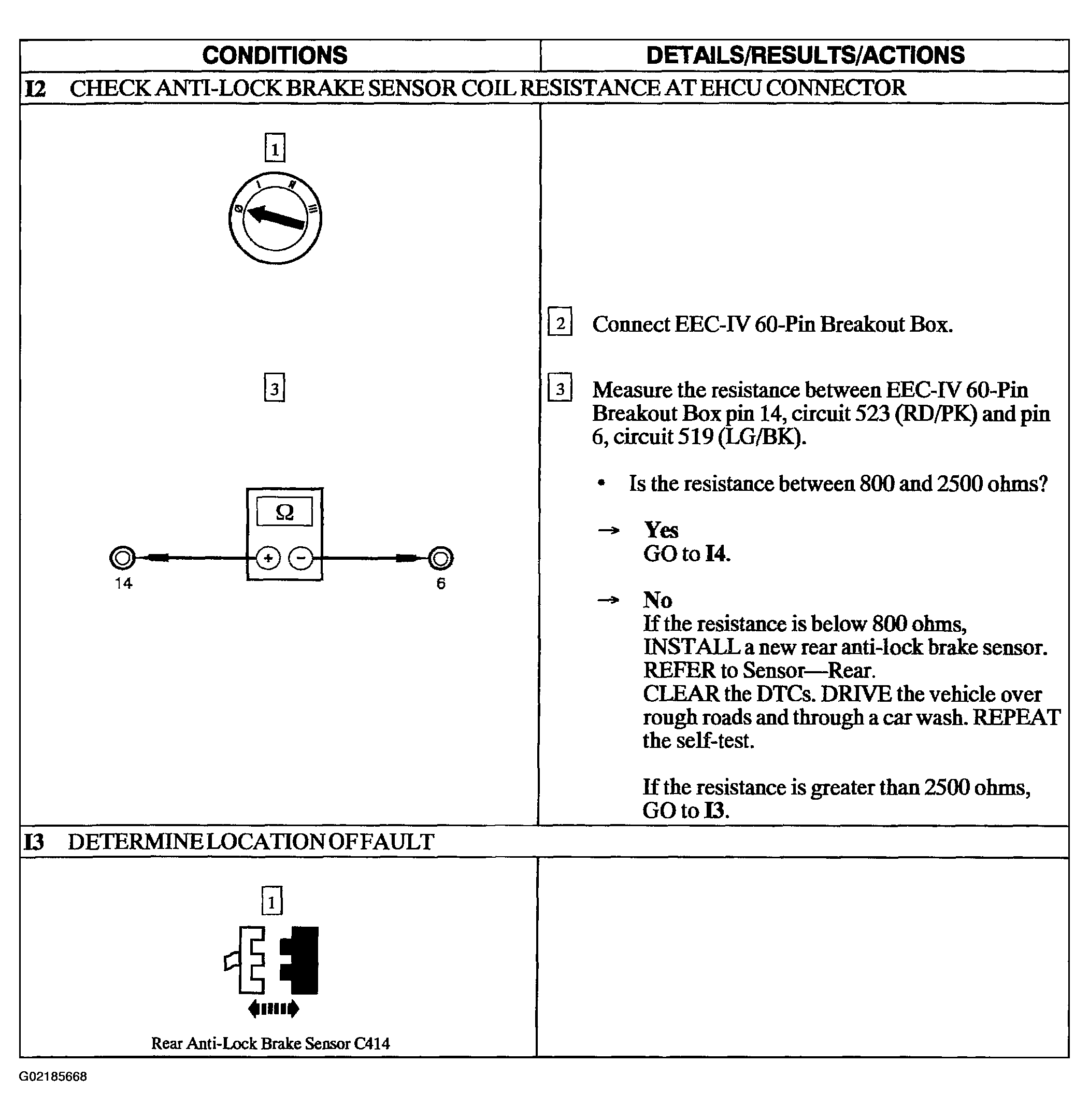

Fig 2: Pinpoint Test I: DTC:1230 - Rear Anti-Lock Brake Sensor (Electrical/Static) Chart (I2 & I3)

Courtesy of FORD MOTOR CO.

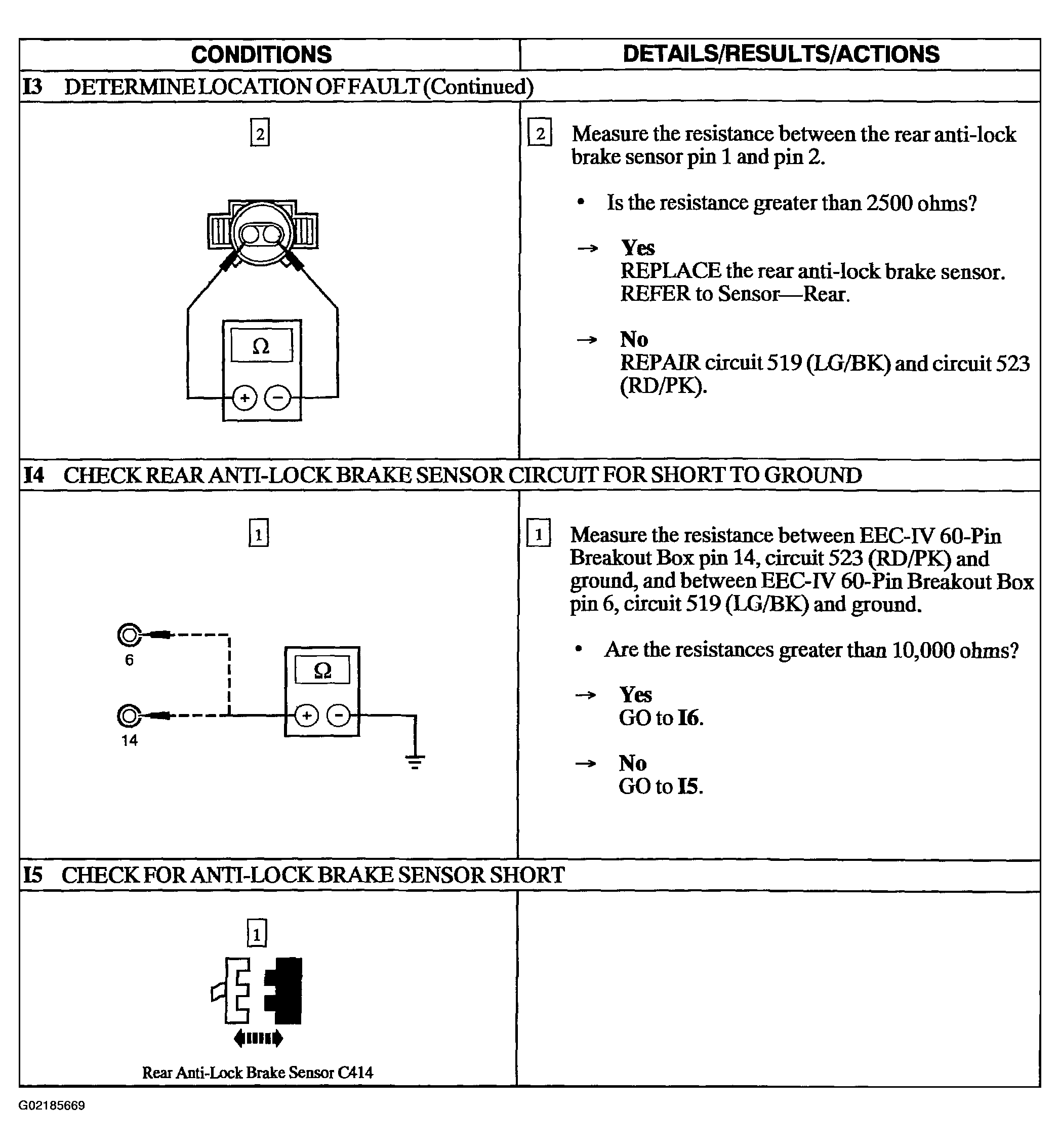

Fig 3: Pinpoint Test I: DTC:1230 - Rear Anti-Lock Brake Sensor (Electrical/Static) Chart (I3 Cont.-I5)

Courtesy of FORD MOTOR CO.

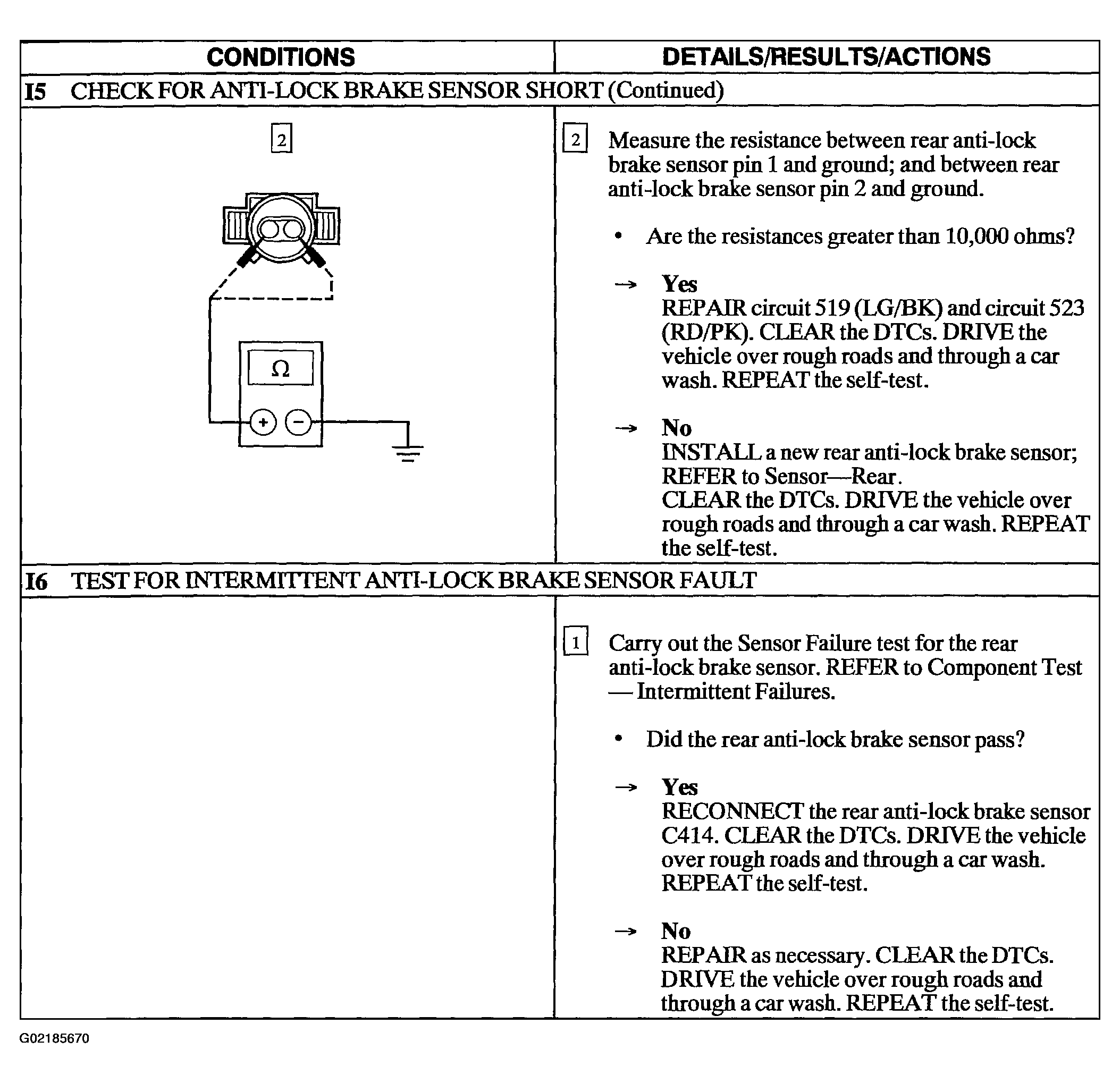

Fig 4: Pinpoint Test I: DTC:1230 - Rear Anti-Lock Brake Sensor (Electrical/Static) Chart (I5 Cont. & I6)

Courtesy of FORD MOTOR CO.
