Pinpoint Test G: DTC: C1145-Right Front Anti-Lock Brake Sensor (Electrical/Static)

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

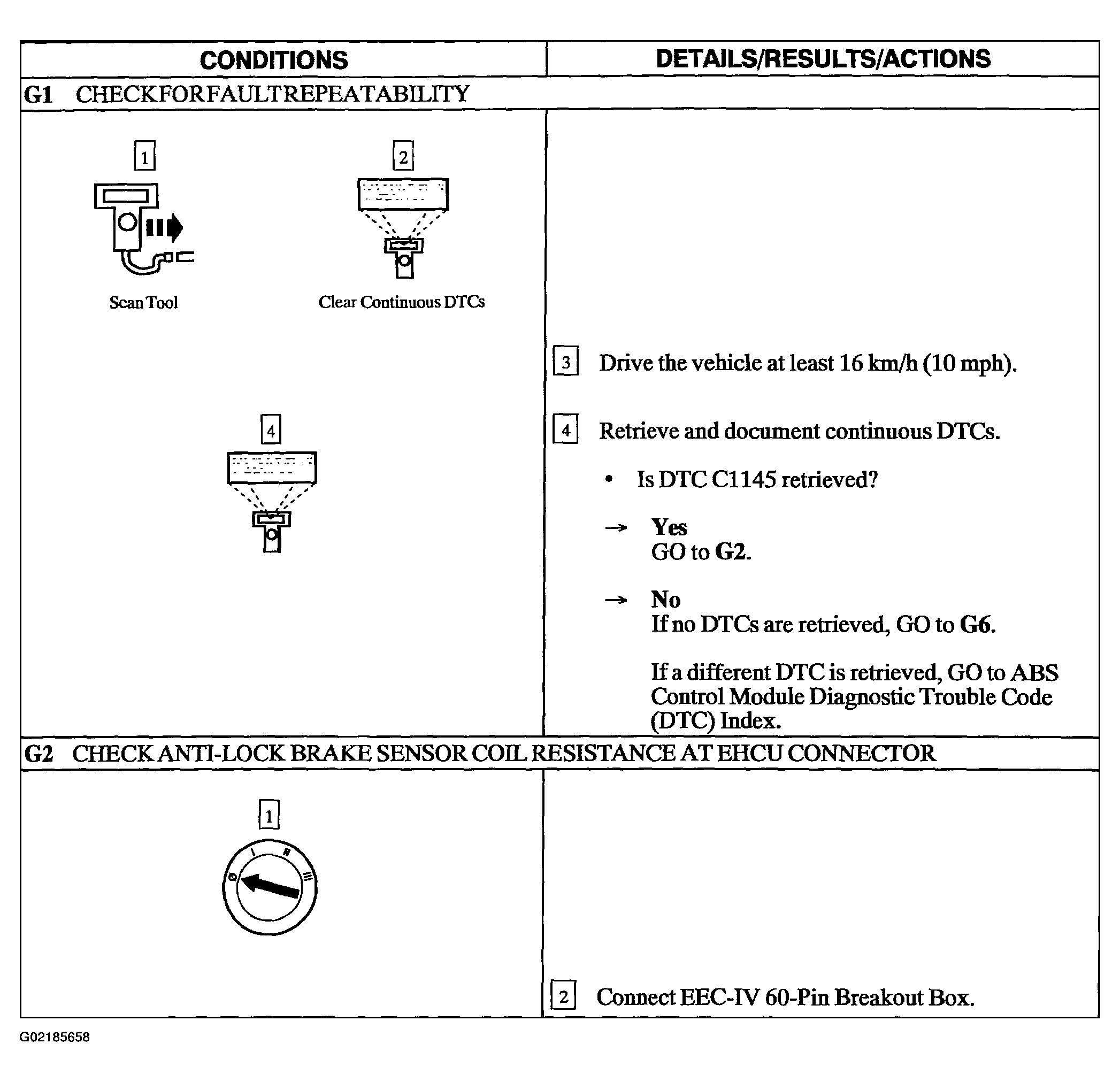

Fig 1: Pinpoint Test G: DTC: C1145 - Right Front Anti-Lock Brake Sensor (Electrical/Static) Chart (G1 & G2)
G02185658Courtesy of FORD MOTOR CO.

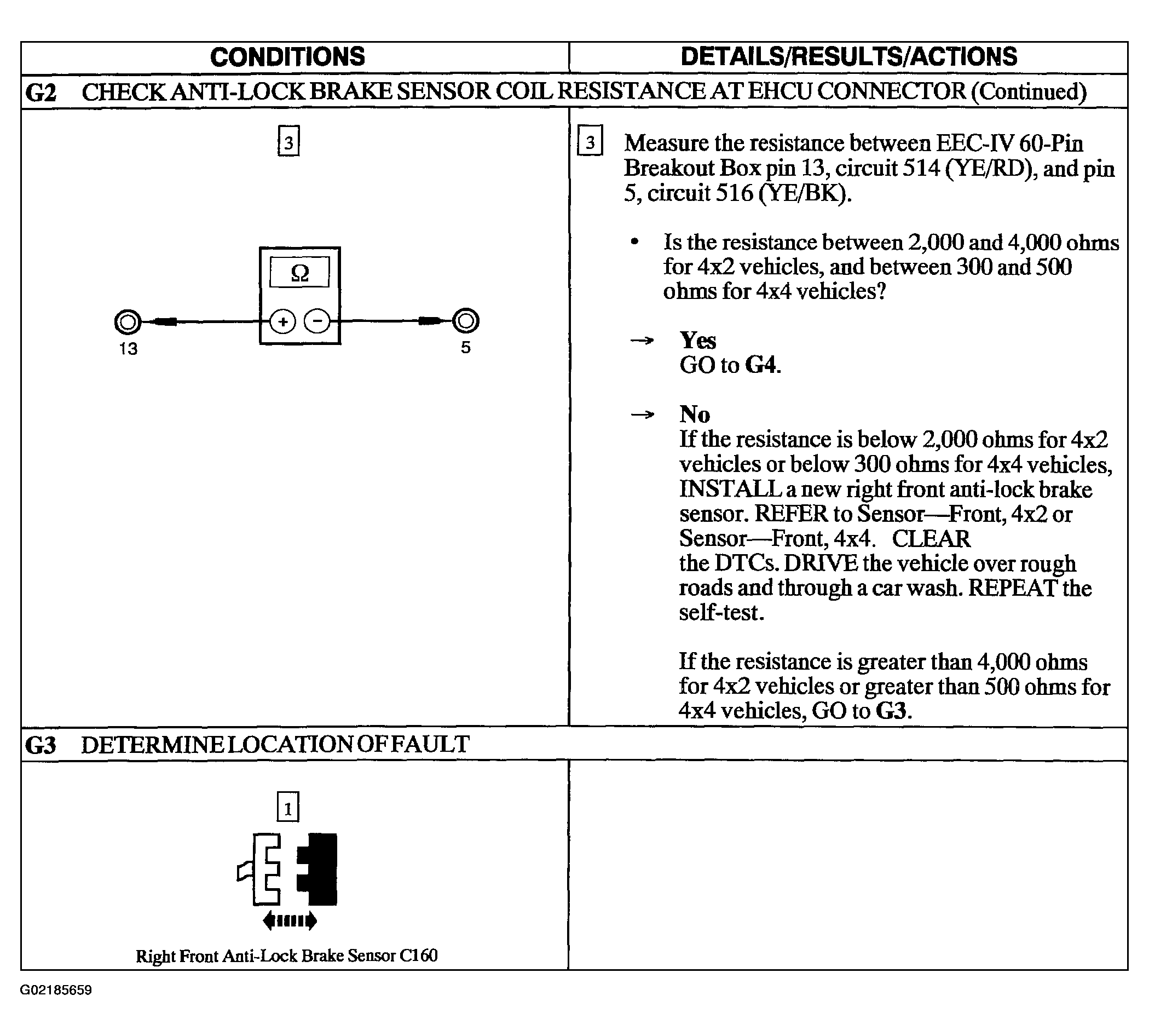

Fig 2: Pinpoint Test G: DTC: C1145 - Right Front Anti-Lock Brake Sensor (Electrical/Static) Chart (G2 Cont. & G3)
G02185659Courtesy of FORD MOTOR CO.

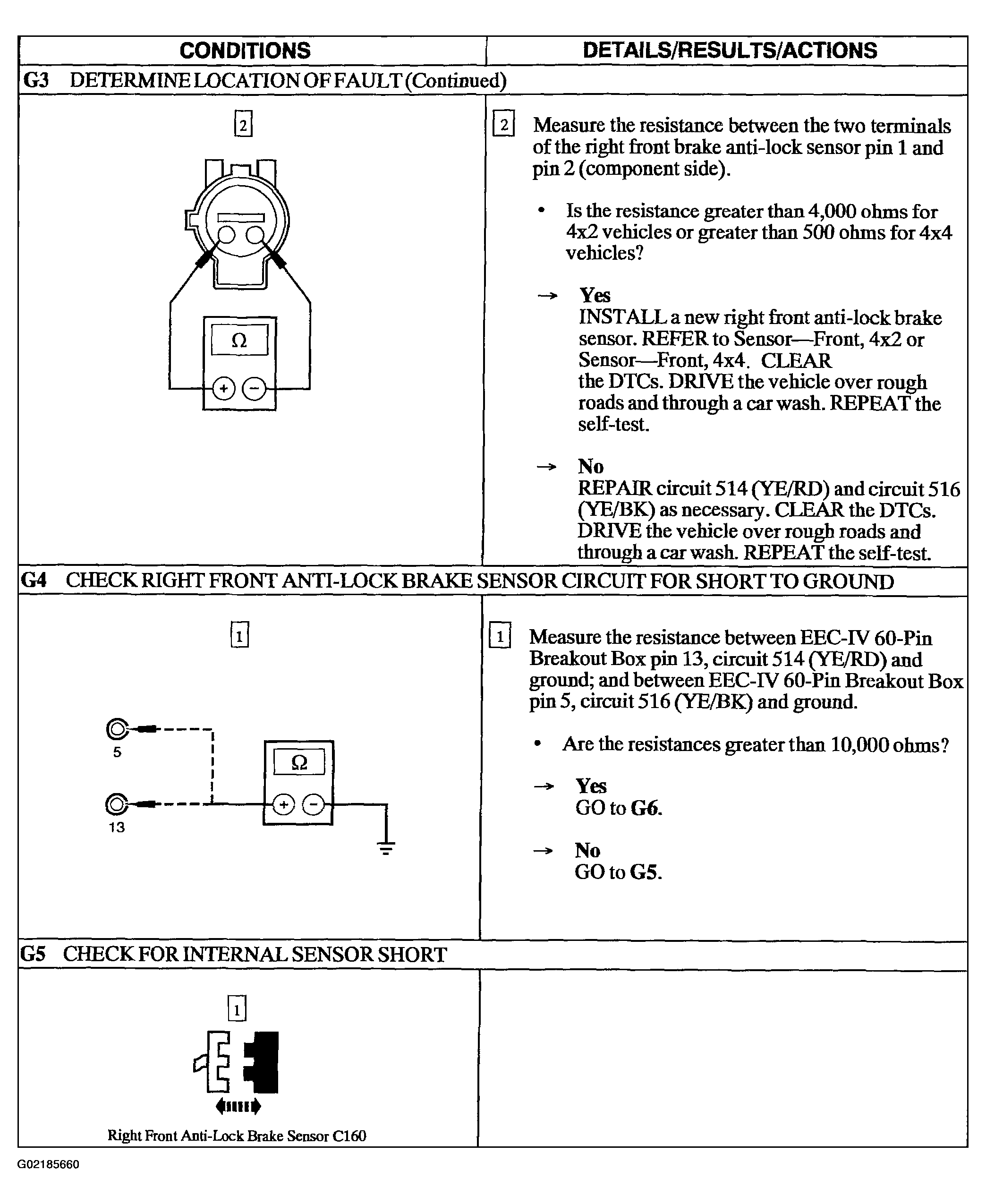

Fig 3: Pinpoint Test G: DTC: C1145 - Right Front Anti-Lock Brake Sensor (Electrical/Static) Chart (G3 Cont.-G5)
G02185660Courtesy of FORD MOTOR CO.

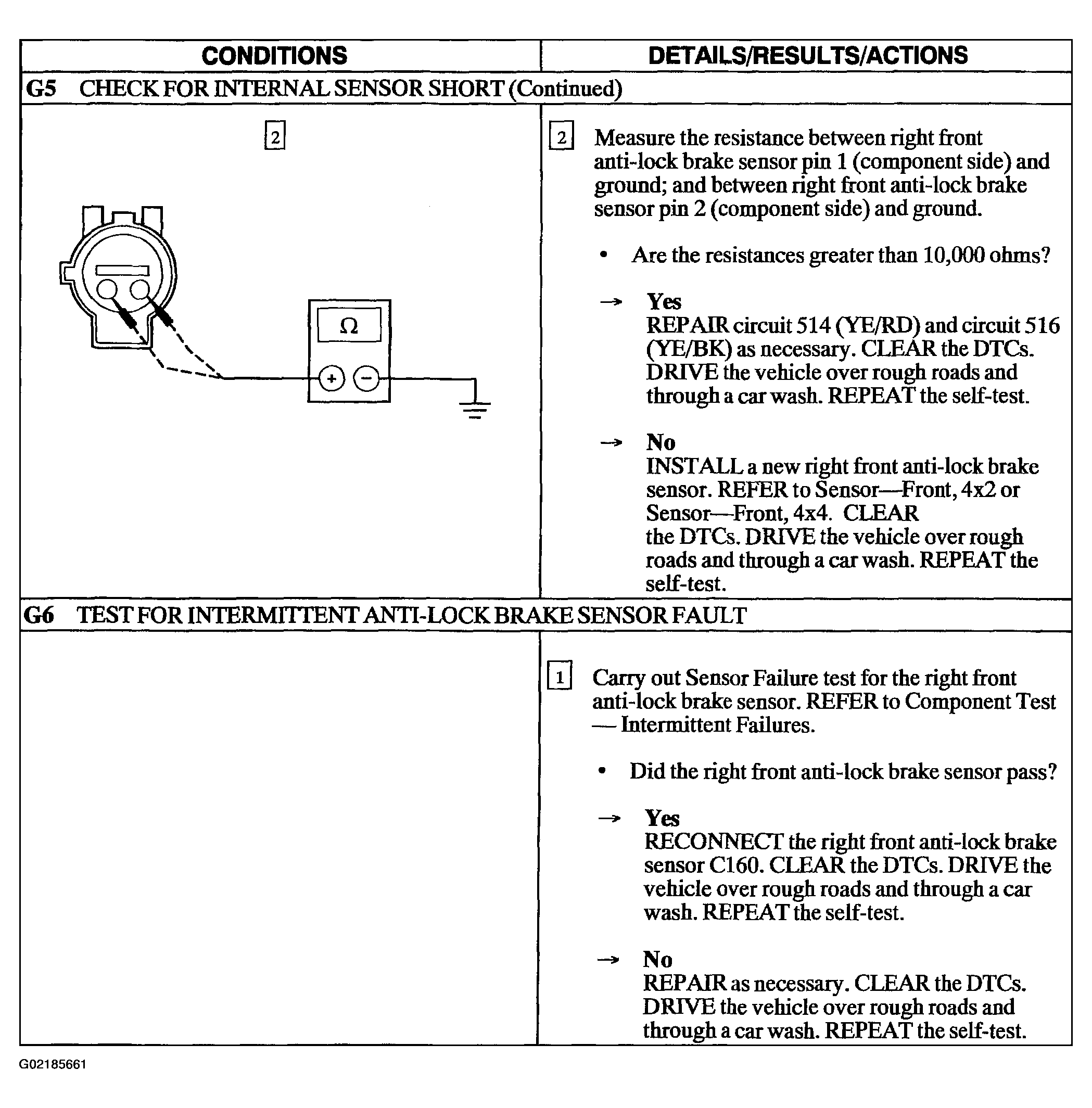

Fig 4: Pinpoint Test G: DTC: C1145 - Right Front Anti-Lock Brake Sensor (Electrical/Static) Chart (G5 Cont. & G6)
G02185661Courtesy of FORD MOTOR CO.
