Pinpoint Test E: DTC: C1155-Left Front Anti-Lock Brake Sensor (Electrical/Static)

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

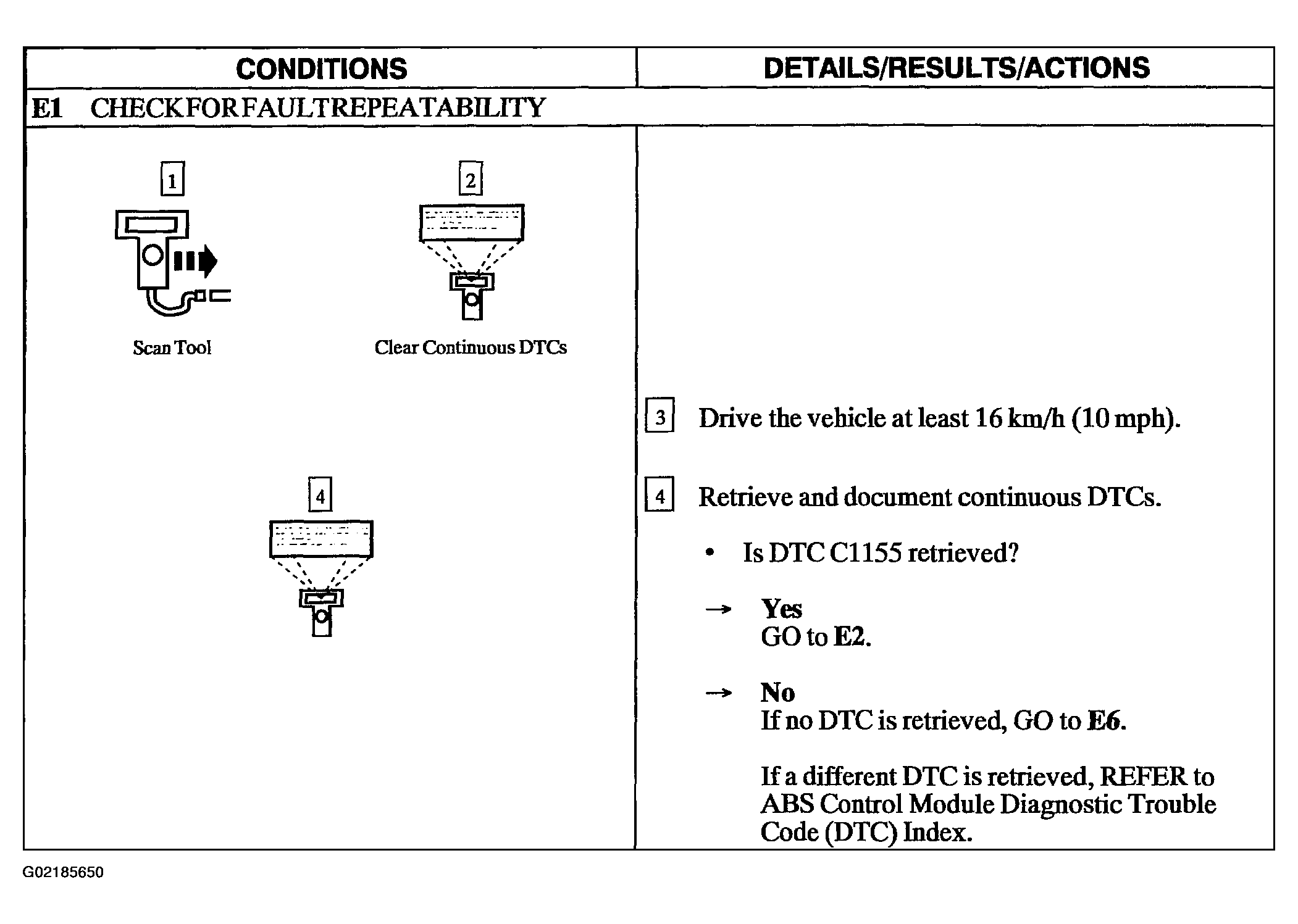

Fig 1: Pinpoint Test E: DTC: C1155 - Left Front Anti-Lock Brake Sensor (Electrical/Static) Chart (E1)
G02185650Courtesy of FORD MOTOR CO.

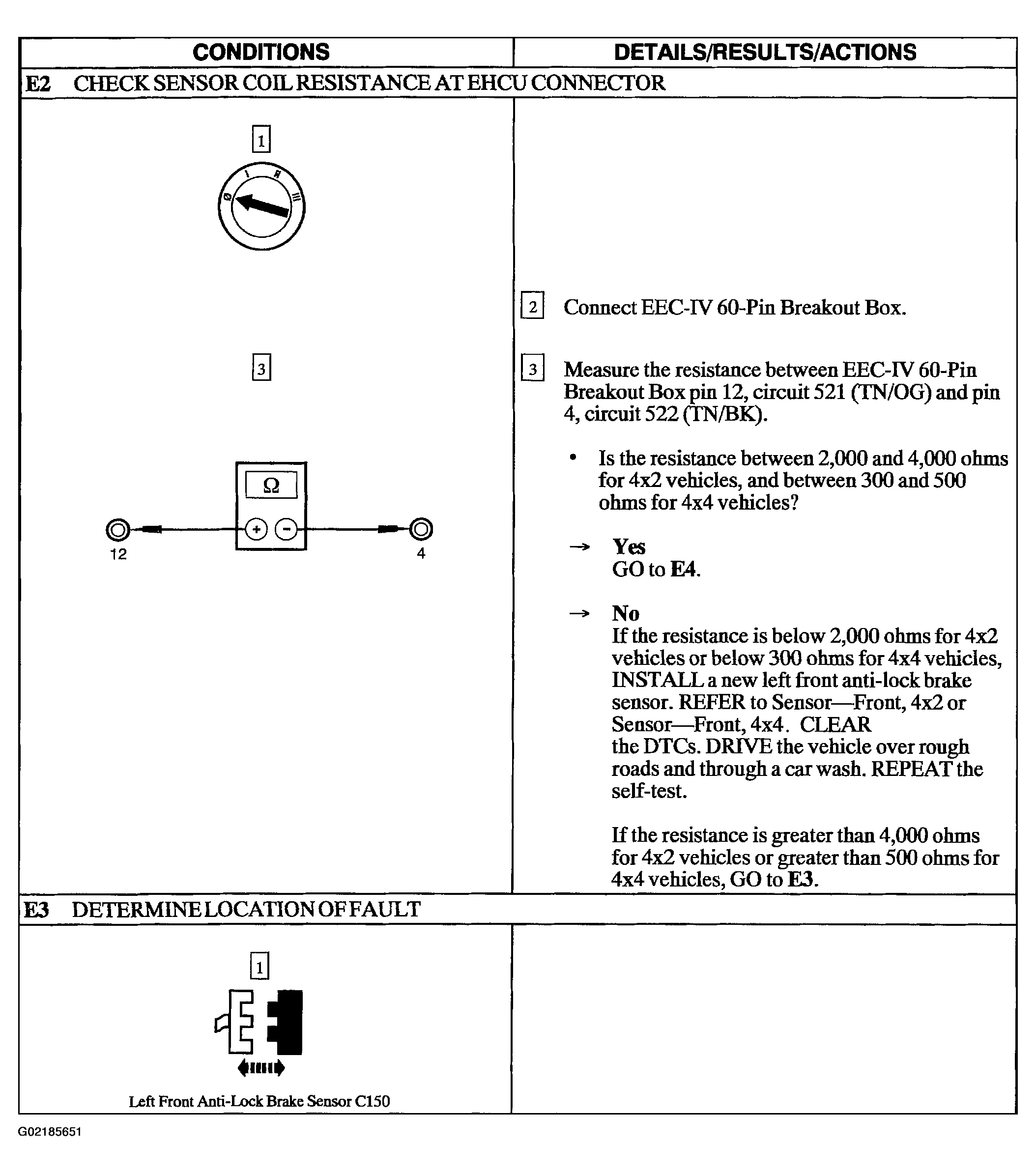

Fig 2: Pinpoint Test E: DTC: C1155 - Left Front Anti-Lock Brake Sensor (Electrical/Static) Chart (E2 & E3)
G02185651Courtesy of FORD MOTOR CO.

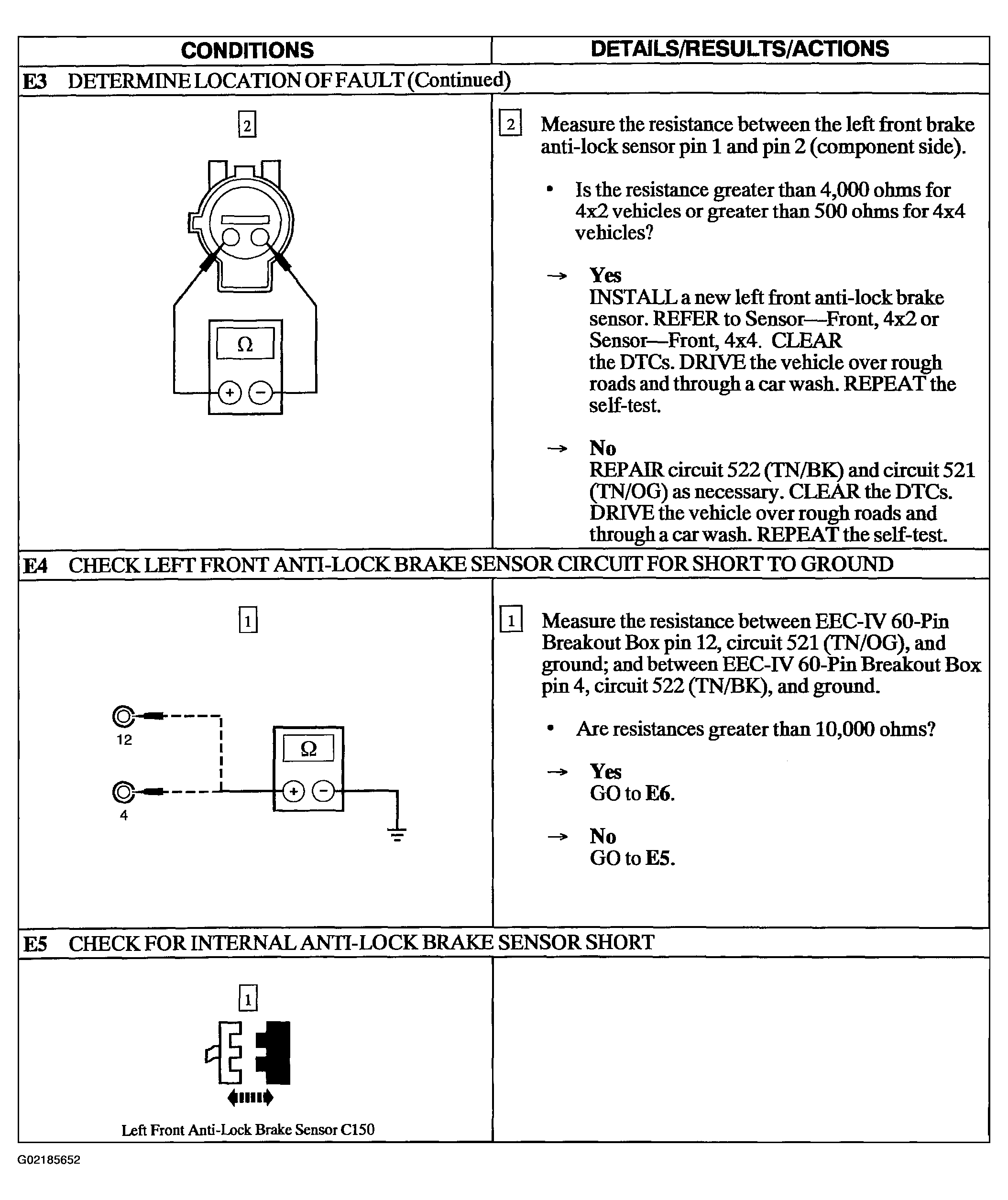

Fig 3: Pinpoint Test E: DTC: C1155 - Left Front Anti-Lock Brake Sensor (Electrical/Static) Chart (E3-E5)
G02185652Courtesy of FORD MOTOR CO.

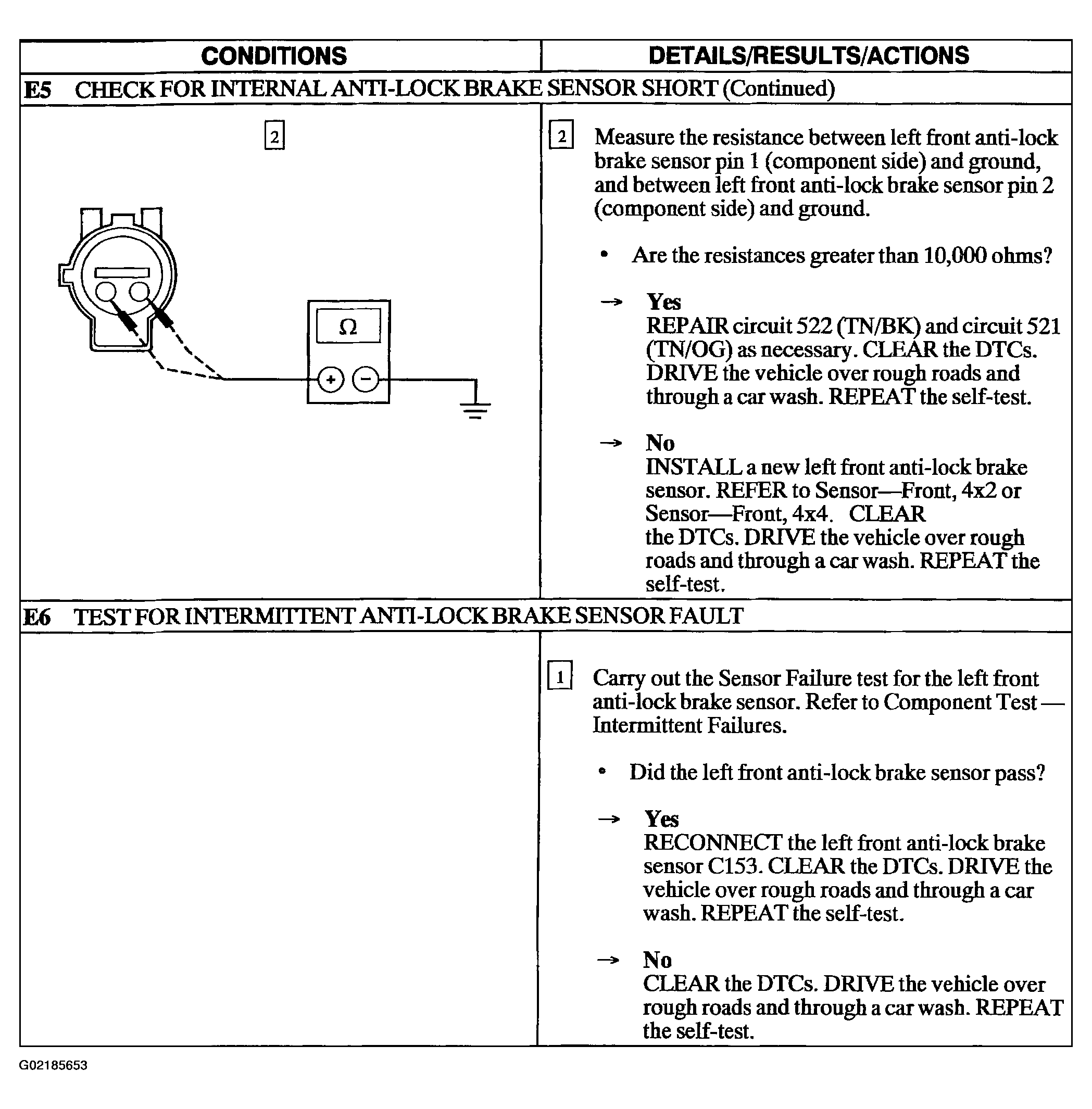

Fig 4: Pinpoint Test E: DTC: C1155 - Left Front Anti-Lock Brake Sensor (Electrical/Static) Chart (E5 Cont. & E6)
G02185653Courtesy of FORD MOTOR CO.
