Pinpoint Test A: No Communication With The Module - Anti-Lock Brake Module
WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

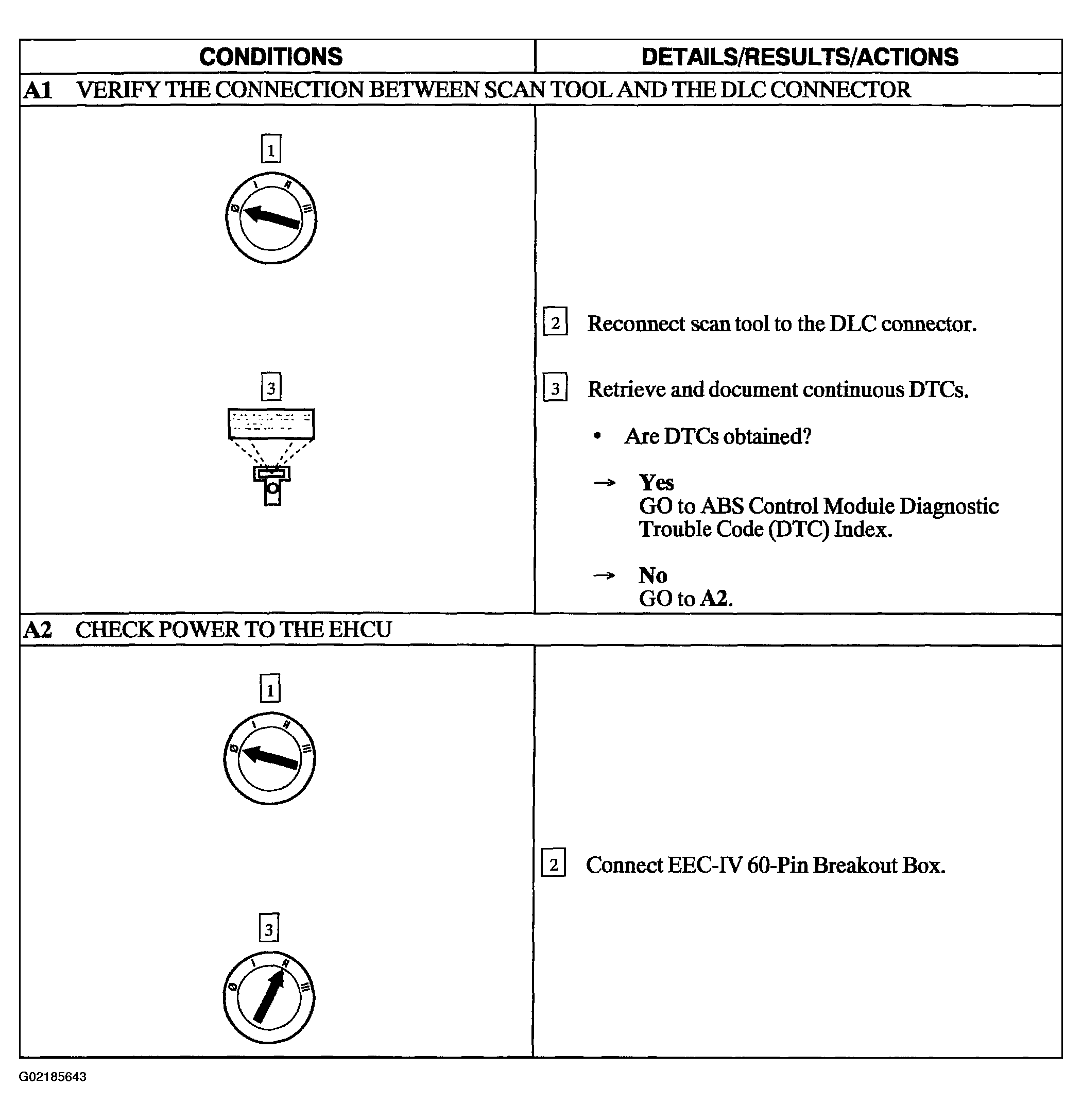

Fig 1: Pinpoint Test A: No Communication With Module - Anti-Lock Brake Module Chart (A1 & A2)
Courtesy of FORD MOTOR CO.

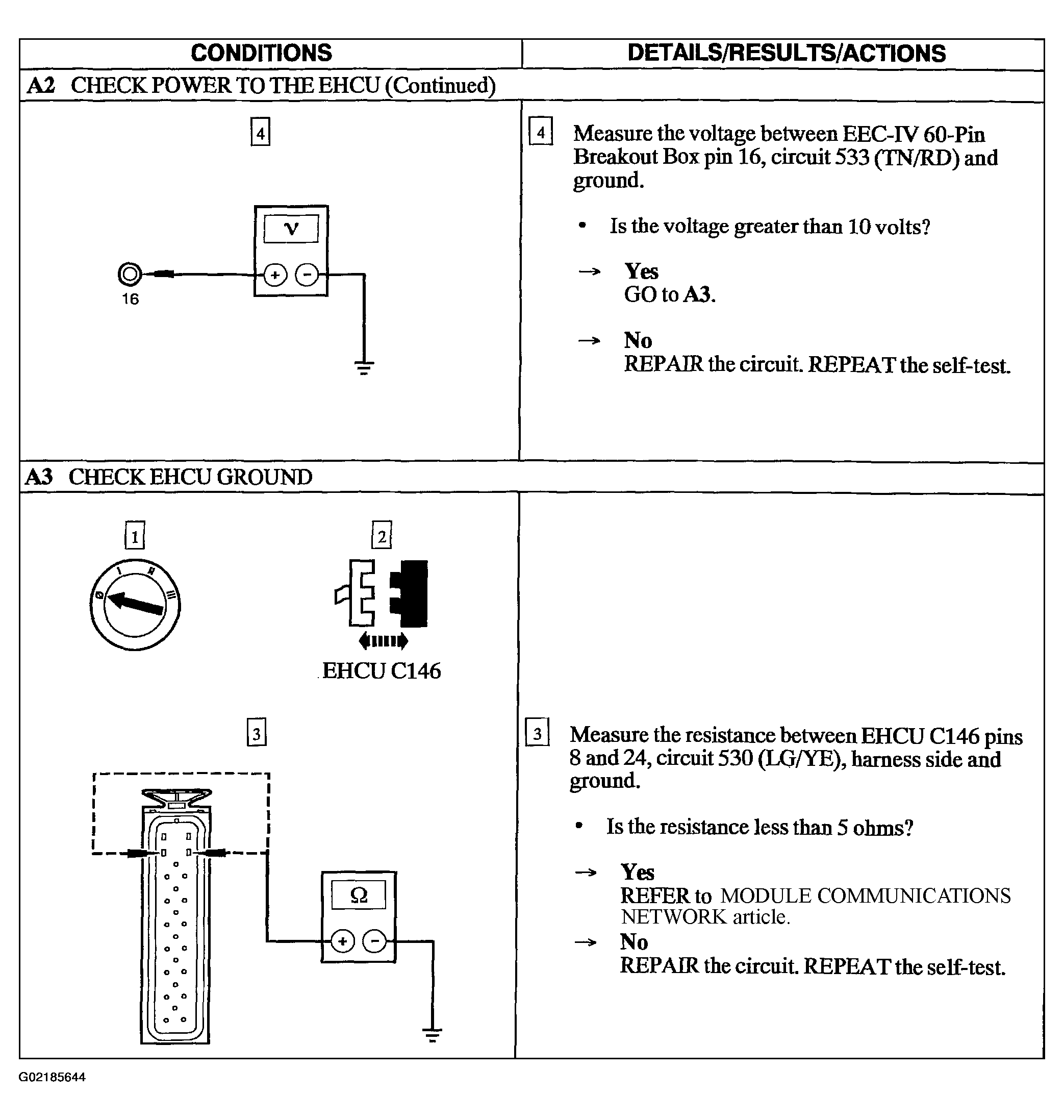

Fig 2: Pinpoint Test A: No Communication With Module - Anti-Lock Brake Module Chart (A2 Cont. & A3)
