PINPOINT TEST H: DTCs: C1148, C1234-RIGHT FRONT ANTI-LOCK BRAKE SENSOR (DYNAMIC)

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

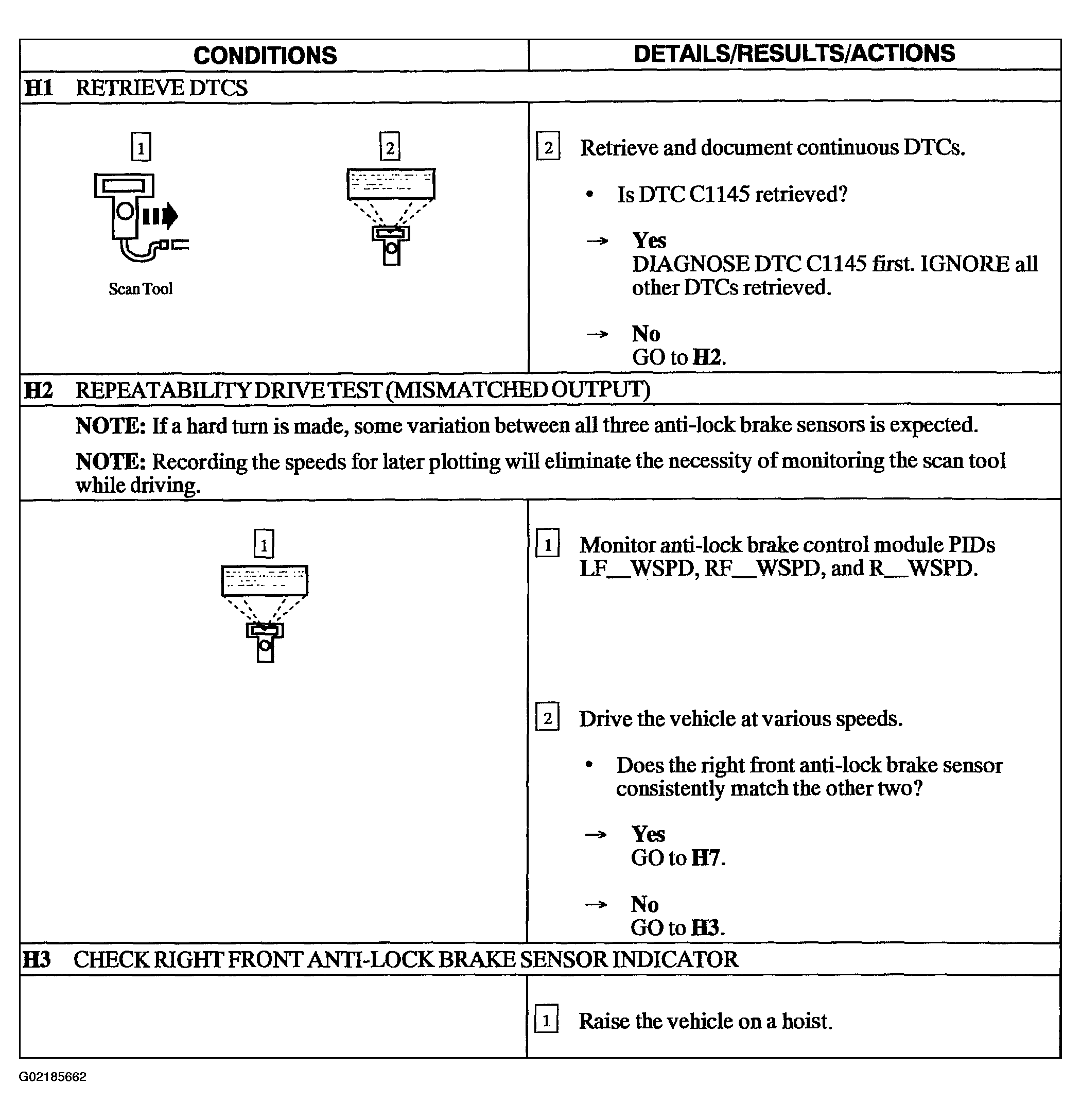

Fig 1: Pinpoint Test H: DTCs: C1148, C1234 - Right Front Anti-Lock Brake Sensor (Dynamic) Chart (H1-H3)
G02185662Courtesy of FORD MOTOR CO.

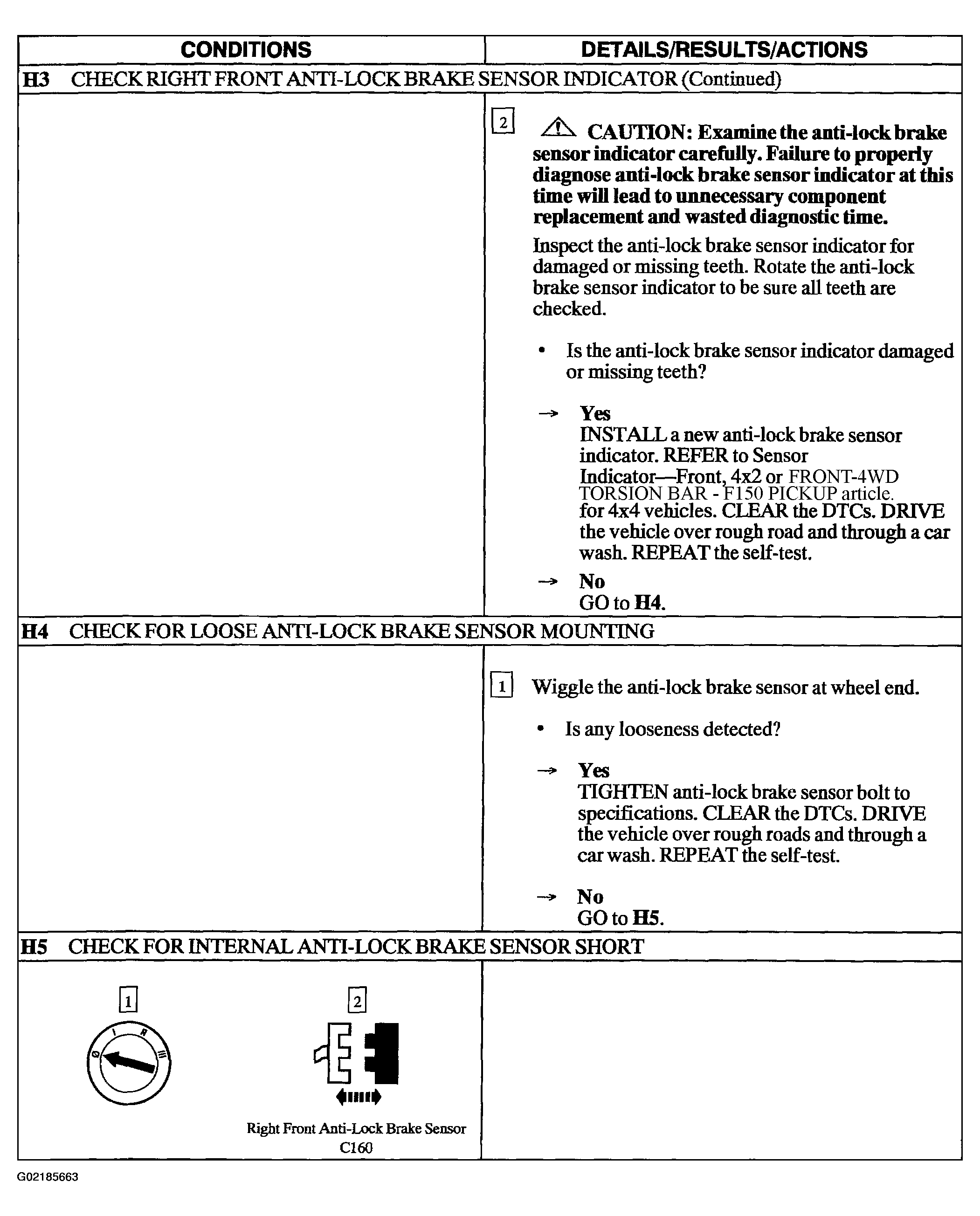

Fig 2: Pinpoint Test H: DTCs: C1148, C1234 - Right Front Anti-Lock Brake Sensor (Dynamic) Chart (H3 Cont.-H5)
G02185663Courtesy of FORD MOTOR CO.

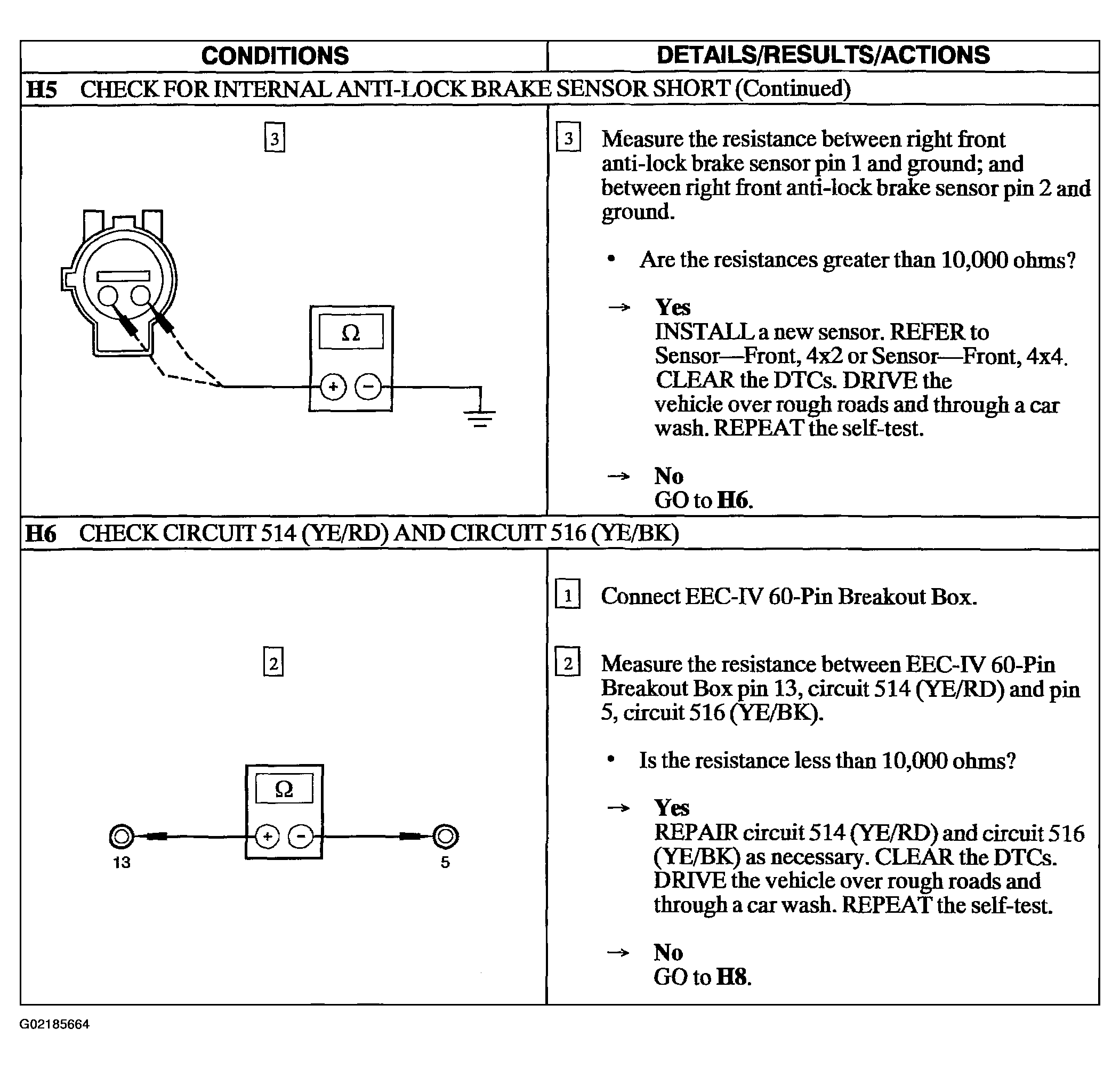

Fig 3: Pinpoint Test H: DTCs: C1148, C1234 - Right Front Anti-Lock Brake Sensor (Dynamic) Chart (H5 Cont. & H6)
G02185664Courtesy of FORD MOTOR CO.

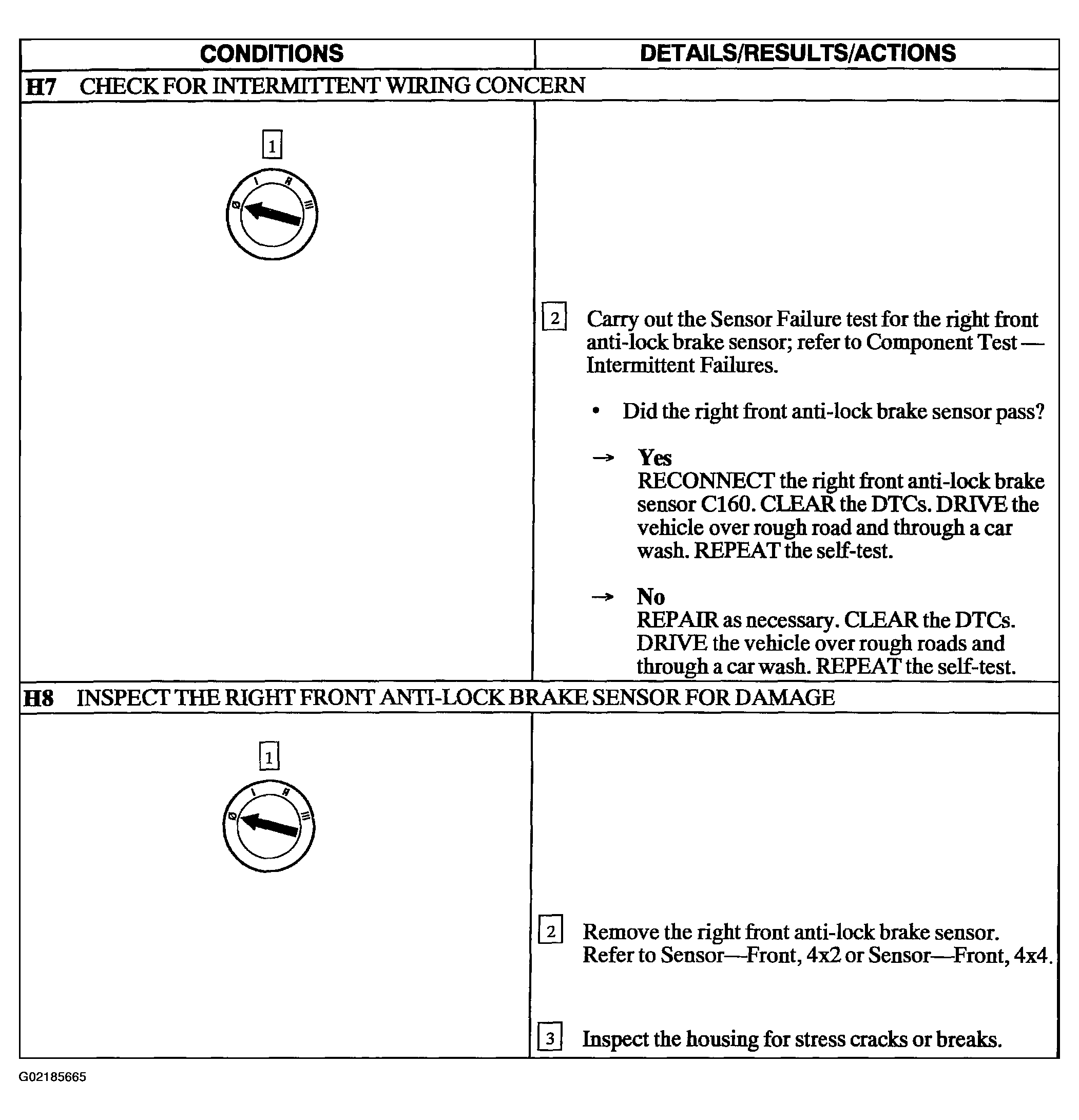

Fig 4: Pinpoint Test H: DTCs: C1148, C1234 - Right Front Anti-Lock Brake Sensor (Dynamic) Chart (H7 & H8)
G02185665Courtesy of FORD MOTOR CO.

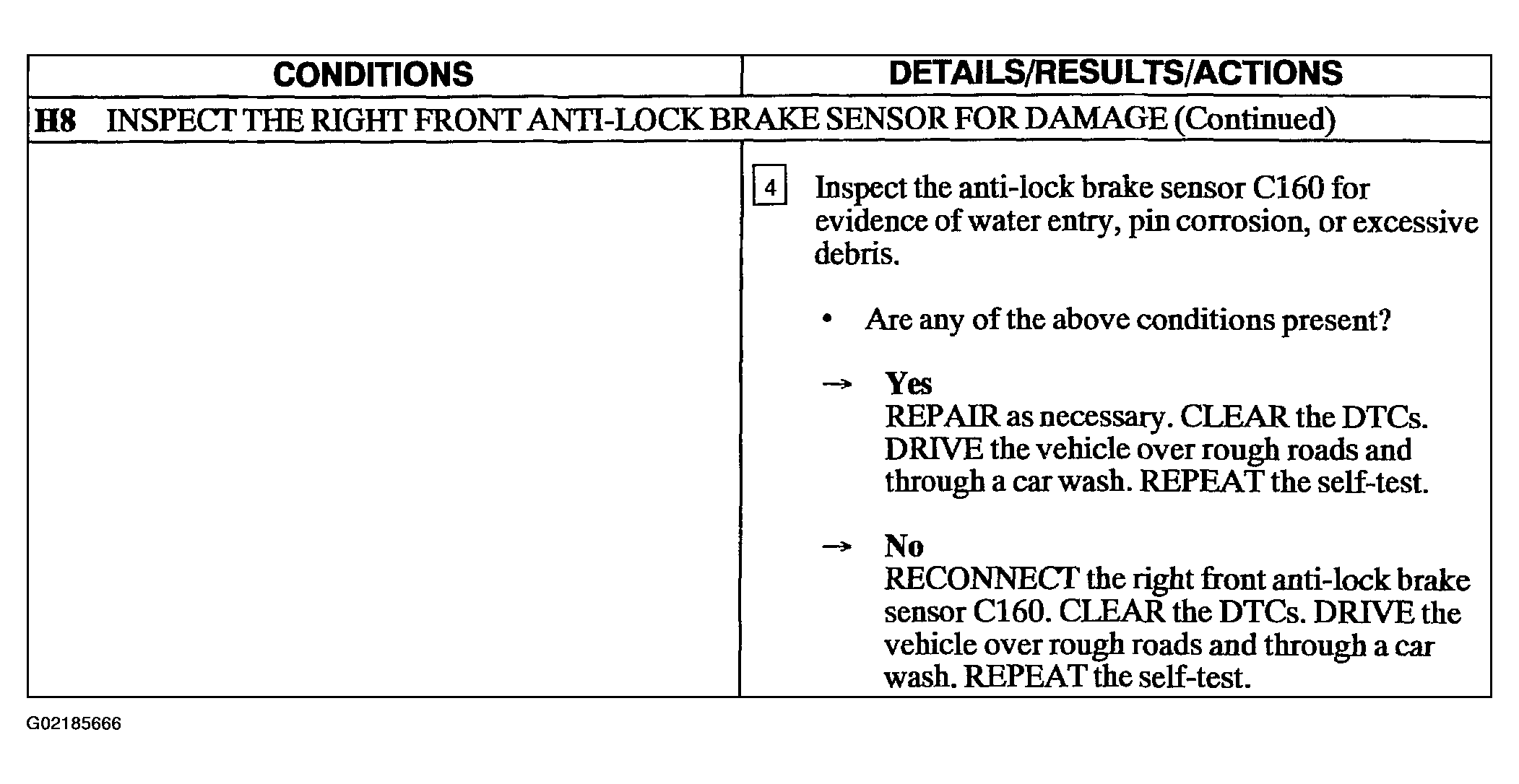

Fig 5: Pinpoint Test H: DTCs: C1148, C1234 - Right Front Anti-Lock Brake Sensor (Dynamic) Chart (H8 Cont.)
G02185666Courtesy of FORD MOTOR CO.
