PINPOINT TEST D: DTCs C1194, C1196, C1198, C1200, C1202, C1204, C1206, C1208, C1210, C1212, C1214, C1216-ISOLATION VALVE, DUMP VALVE

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

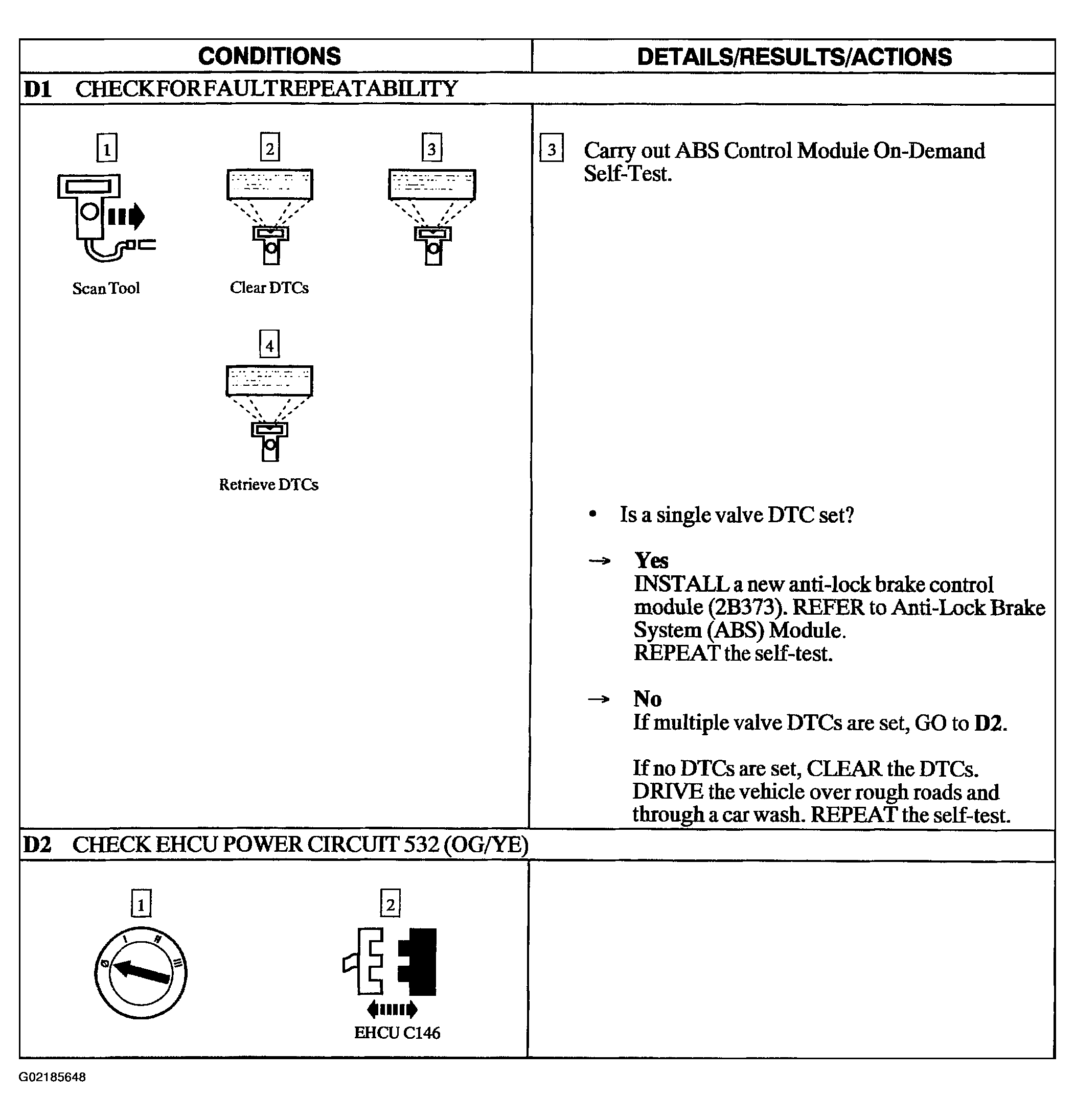

Fig 1: Pinpoint Test D: DTCs C1194, C1196, C1198, C1200, C1202, C1204, C1206, C1208, C1210, C1212, C1214, C1216 - Isolation Valve, Dump Valve (D1 & D2)
G02185648Courtesy of FORD MOTOR CO.

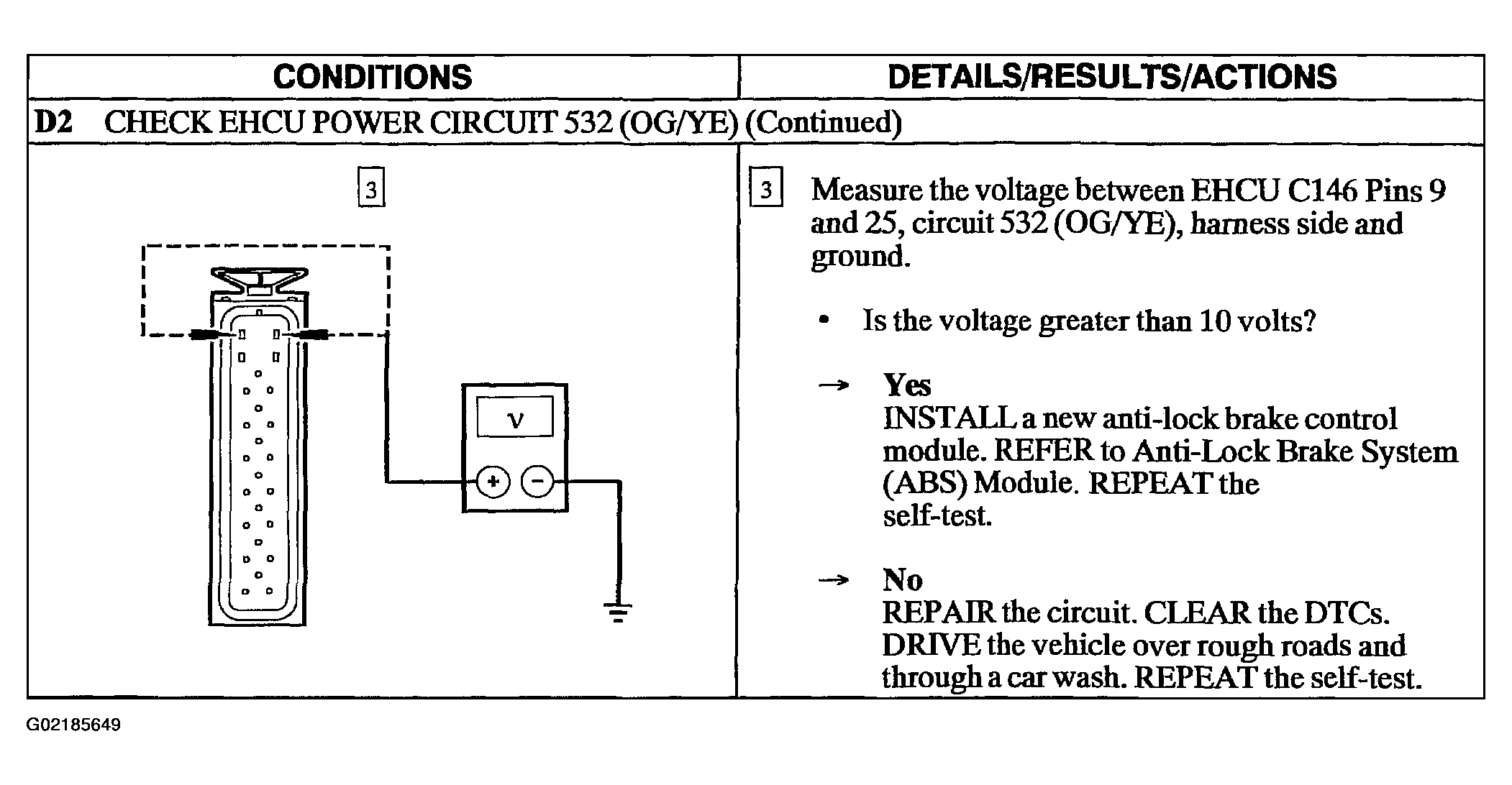

Fig 2: Pinpoint Test D: DTCs C1194, C1196, C1198, C1200, C1202, C1204, C1206, C1208, C1210, C1212, C1214, C1216 - Isolation Valve, Dump Valve (D2 Cont.)
G02185649Courtesy of FORD MOTOR CO.
