ABS Control Module Parameter Identification (PID) Index

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

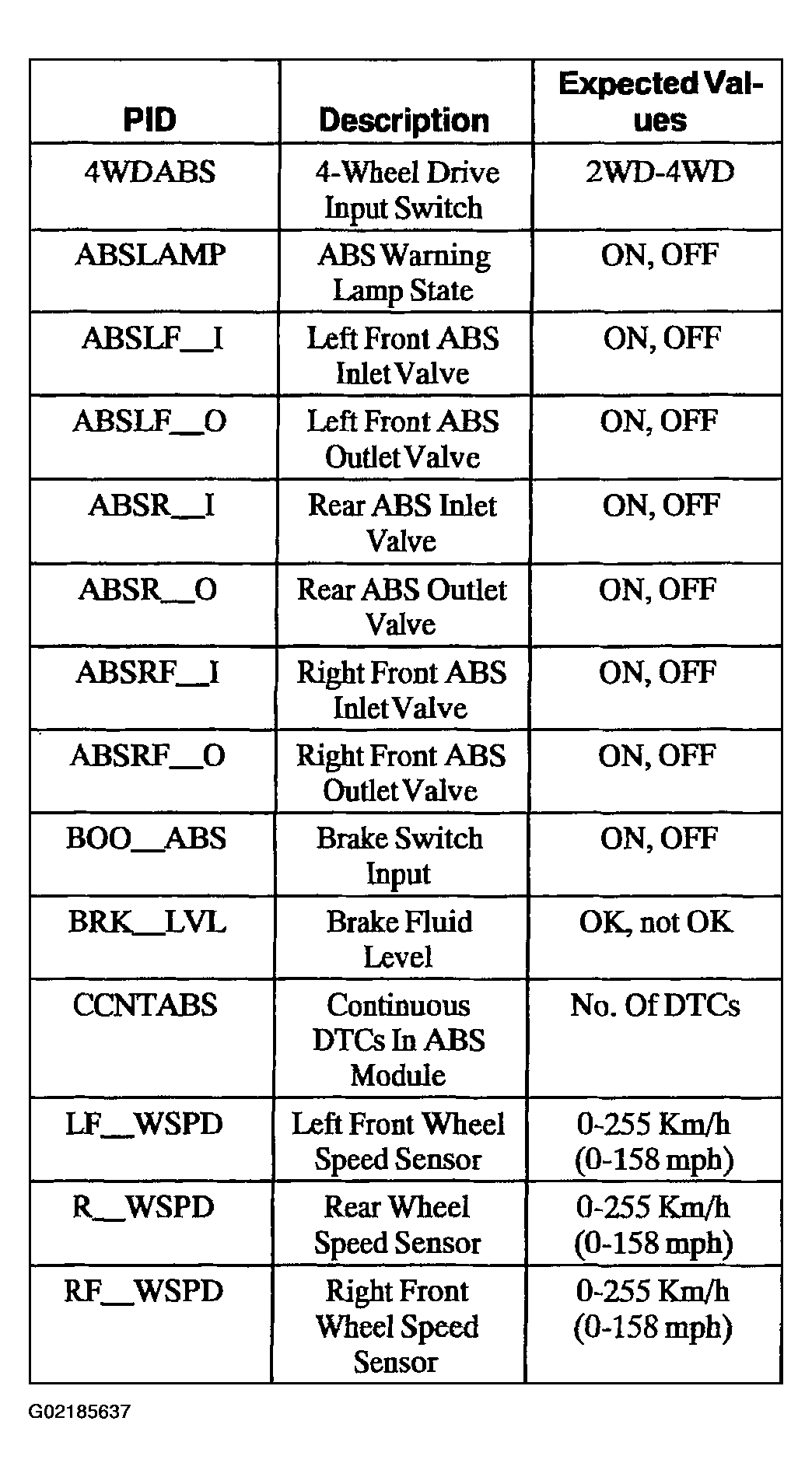

Fig 1: ABS Control Module Parameter Identification (PID) Index Chart
G02185637Courtesy of FORD MOTOR CO.

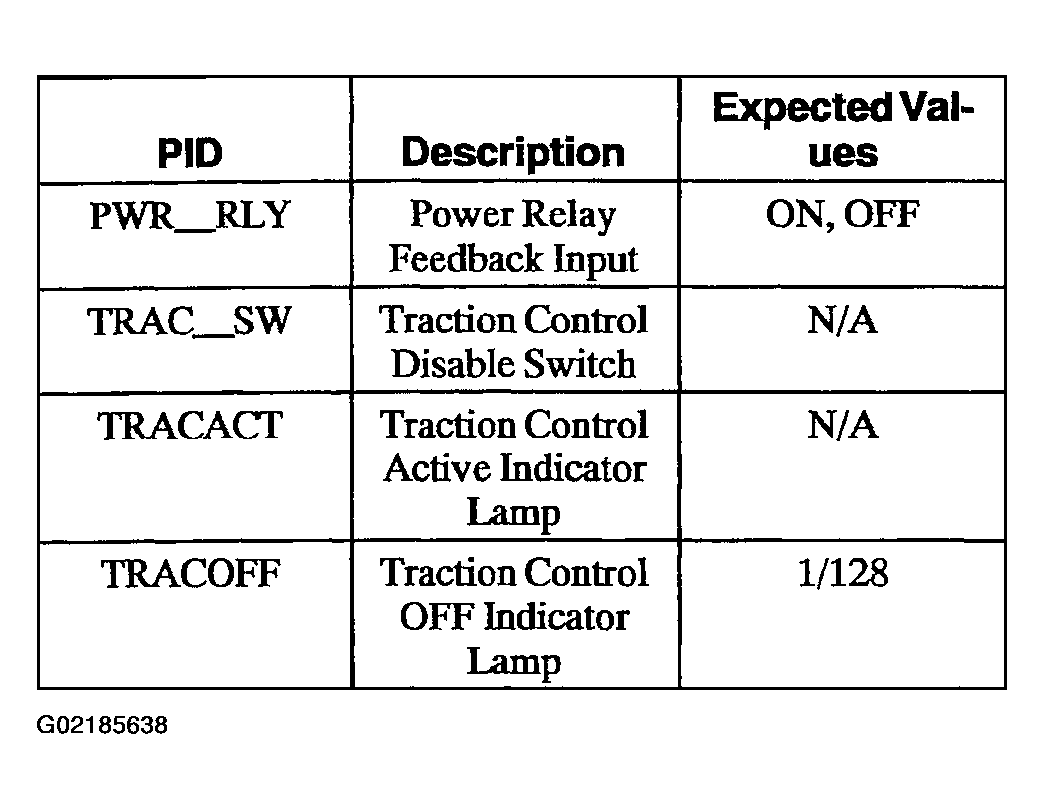

Fig 2: ABS Control Module Parameter Identification (PID) Index Chart
G02185638Courtesy of FORD MOTOR CO.
