ABS Control Module Active Command Index

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

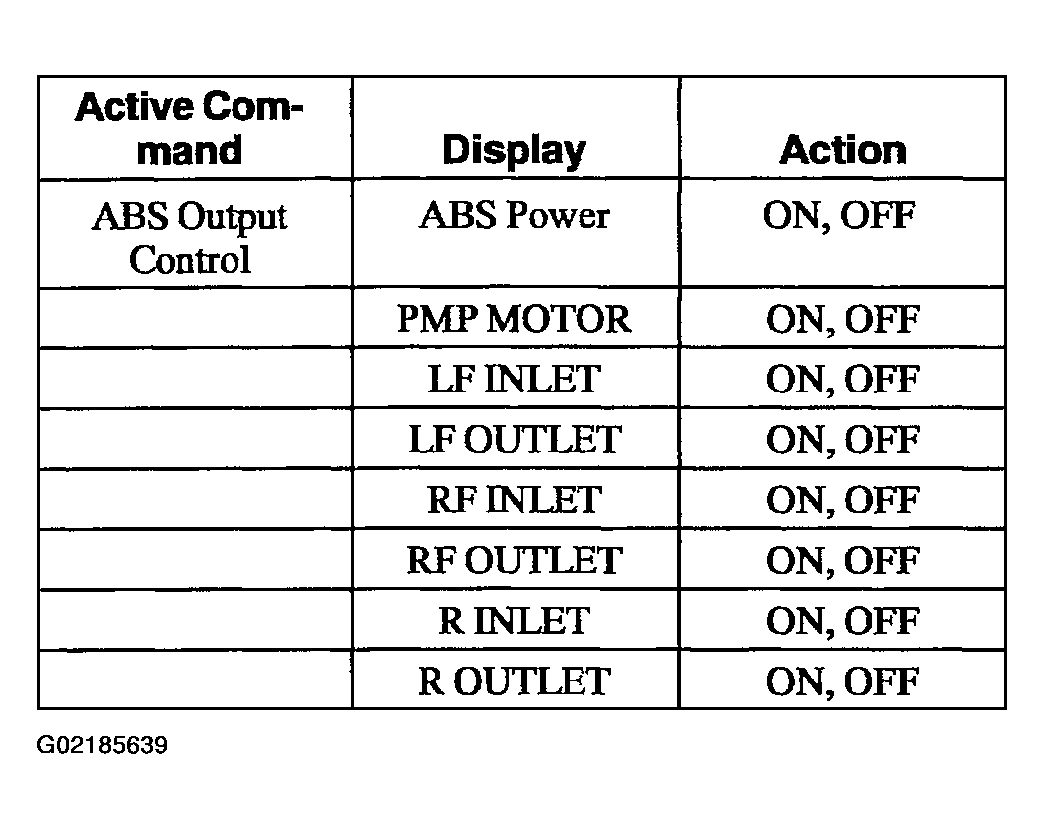

Fig 1: ABS Control Module Active Command Index Chart
G02185639Courtesy of FORD MOTOR CO.
