Torque Specifications

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

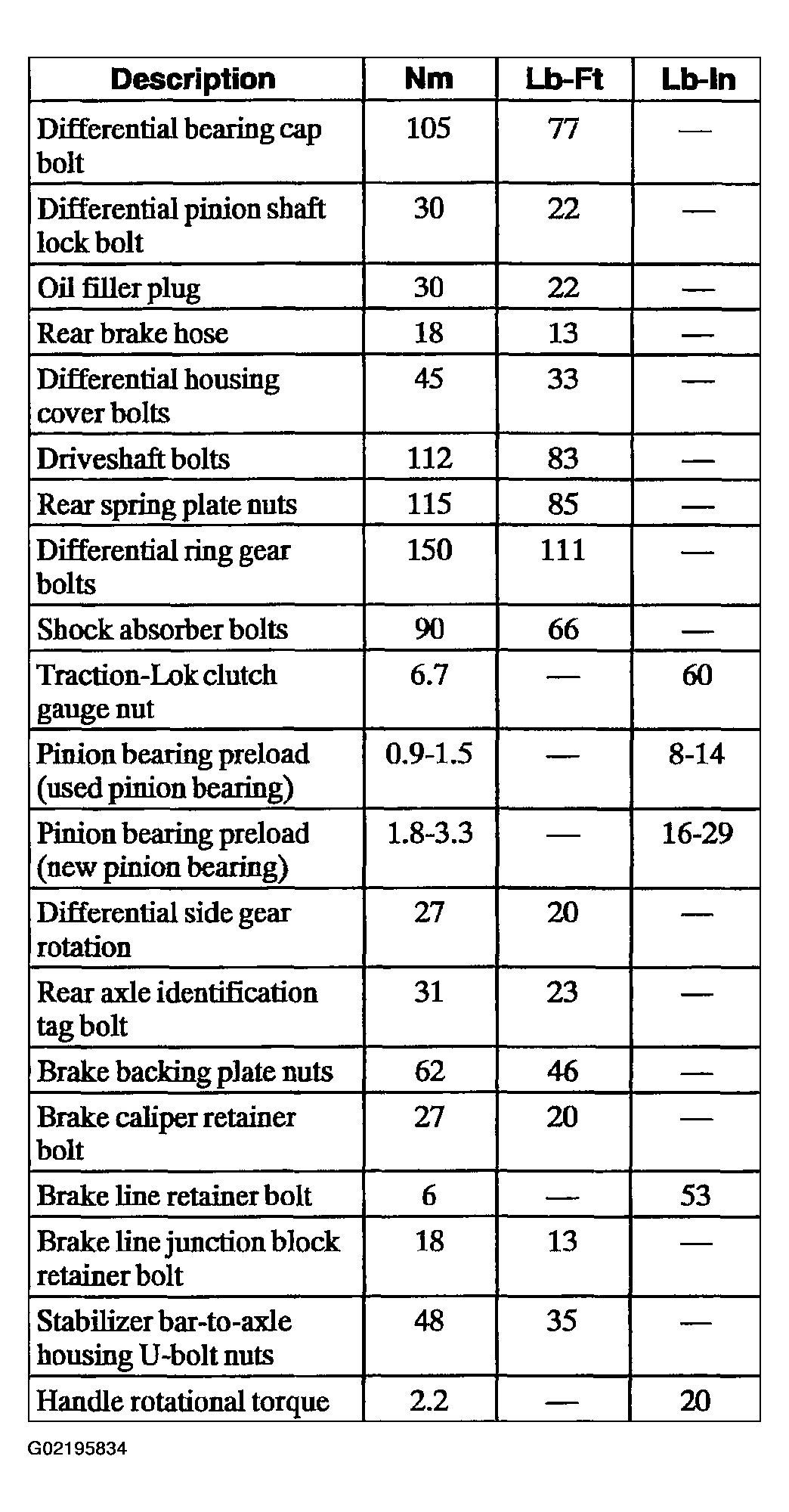

Fig 1: Rear Drive Axle/Differential - Ford 9.75-Inch Ring Gear Torque Specifications
G02195834Courtesy of FORD MOTOR CO.
