Rear Wheel Bearing and Axle Shaft Oil Seal: Removal

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the axle shaft (4234). Refer to AXLE SHAFT .
    2. CAUTION: Never remove the wheel bearing oil seal (1177) by itself. Always remove the wheel bearing oil seal and the rear wheel bearing (1225) at the same time.
    NOTE: If the wheel bearing oil seal is leaking, the axle housing vent may be plugged with foreign material.

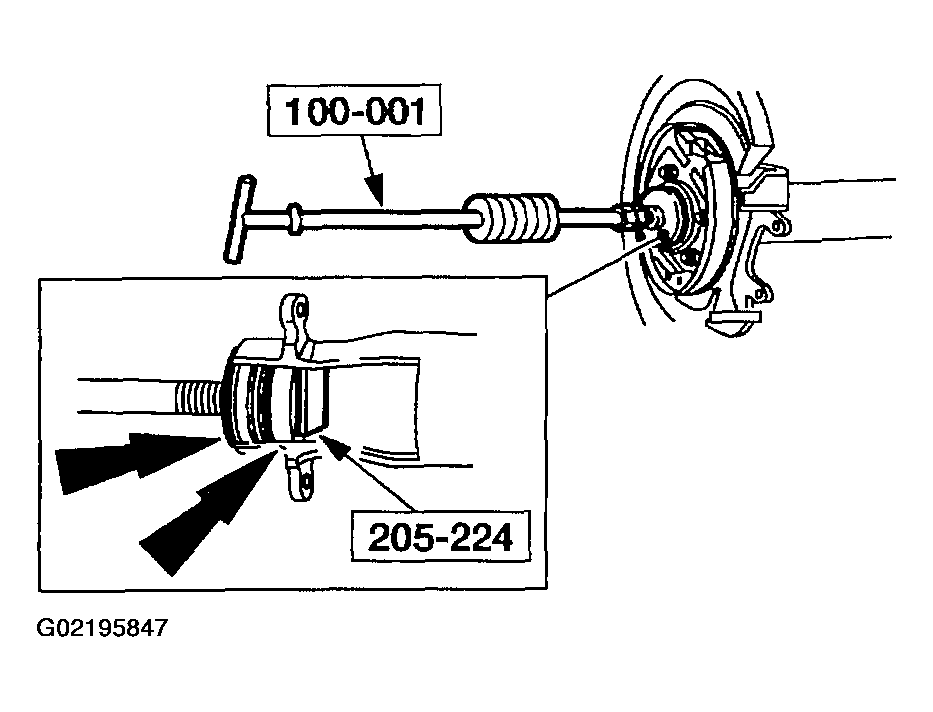

    Fig 1: Removing Rear Wheel Bearing And Wheel Bearing Oil Seal
    G02195847Courtesy of FORD MOTOR CO.
  2. Using the special tools, remove the rear wheel bearing and wheel bearing oil seal.
