Drive Pinion: Removal

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove differential case (4204). Refer to DIFFERENTIAL CASE .
  2. Mark the driveshaft flange and the pinion flange for correct alignment during installation.

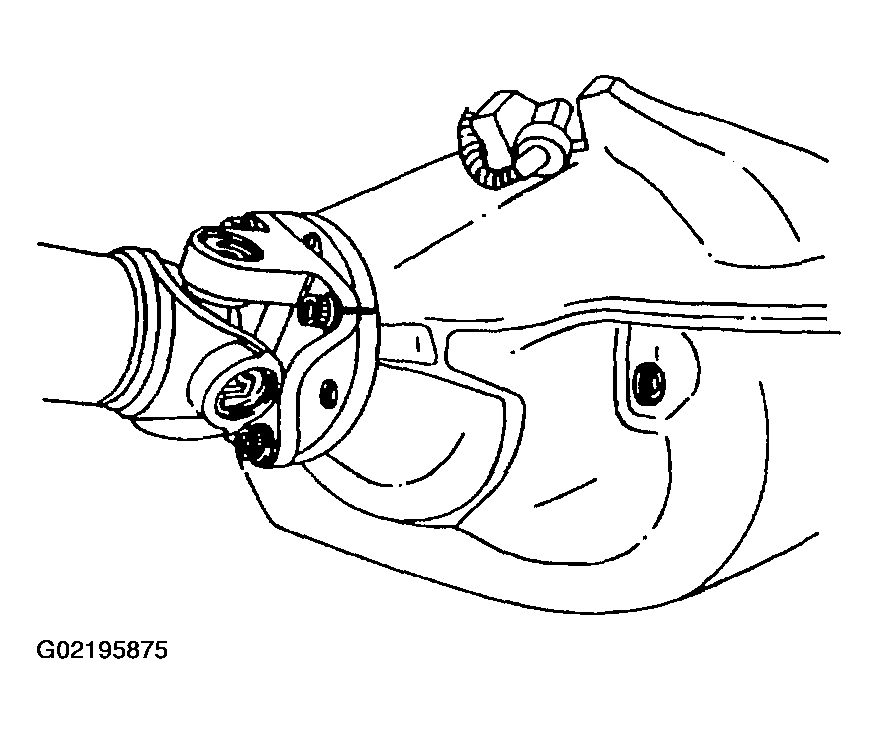

    Fig 1: Marking Driveshaft Flange And Pinion Flange For Correct Alignment During Installation
    G02195875Courtesy of FORD MOTOR CO.
  3. Remove the four driveshaft bolts, and disconnect the driveshaft. Wire the driveshaft out of the way.

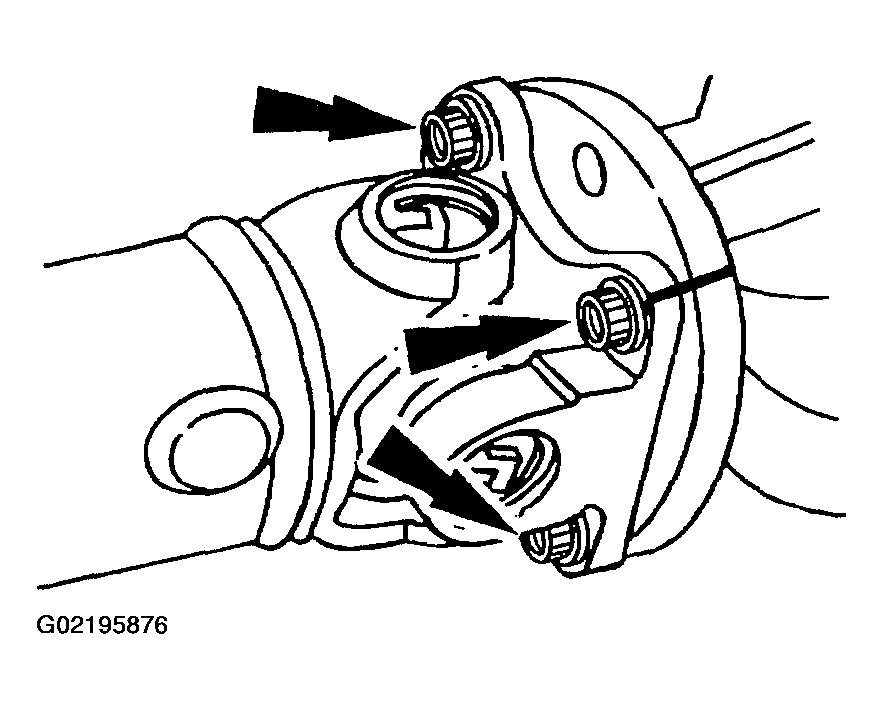

    Fig 2: Removing Driveshaft Bolts
    G02195876Courtesy of FORD MOTOR CO.
  4. CAUTION: The driveshaft centering socket yoke fits tightly on the rear axle pinion flange pilot. Never hammer on the driveshaft or any of its components to disconnect the yoke from the flange. Pry only in the area shown with a suitable tool to disconnect the yoke from the flange.

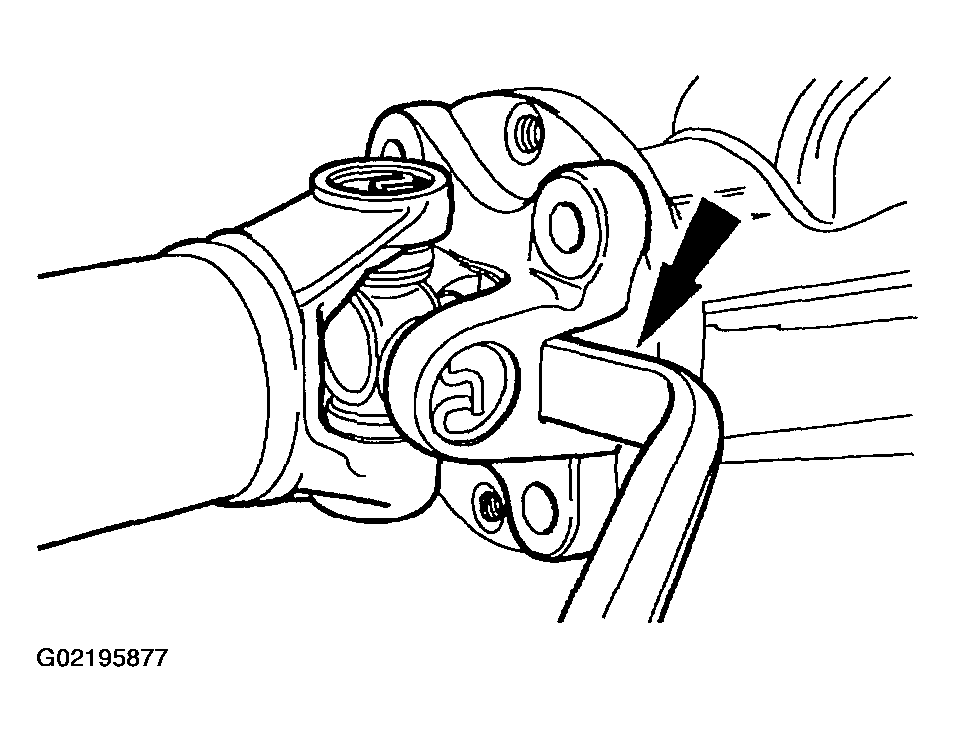

    Fig 3: Disconnecting Driveshaft Centering Socket Yoke From Rear Axle Pinion Flange
    G02195877Courtesy of FORD MOTOR CO.
  5. Using a suitable tool as shown, disconnect the driveshaft centering socket yoke from the rear axle pinion flange.
  6. Install a Nm (inch-pound) torque wrench on the pinion nut, and record the torque required to maintain rotation of the pinion through several revolutions.
    Fig 4: Installing Pinion Nut
    G02195878Courtesy of FORD MOTOR CO.
  7. Remove the pinion flange and pinion nut. Refer to DRIVE PINION FLANGE .
  8. Remove the rear axle drive pinion seal (4676). Refer to DRIVE PINION SEAL .
  9. Remove the rear axle drive pinion shaft oil slinger (4670).
    Fig 5: Removing Rear Axle Drive Pinion Shaft Oil Slinger
    G02195879Courtesy of FORD MOTOR CO.
  10. Install the special tool and, with a soft-faced hammer, drive the pinion out of the outer pinion bearing and remove the drive pinion through the rear of the housing.
    Fig 6: Removing Drive Pinion
    G02195880Courtesy of FORD MOTOR CO.
  11. Remove the drive pinion collapsible spacer and discard it.

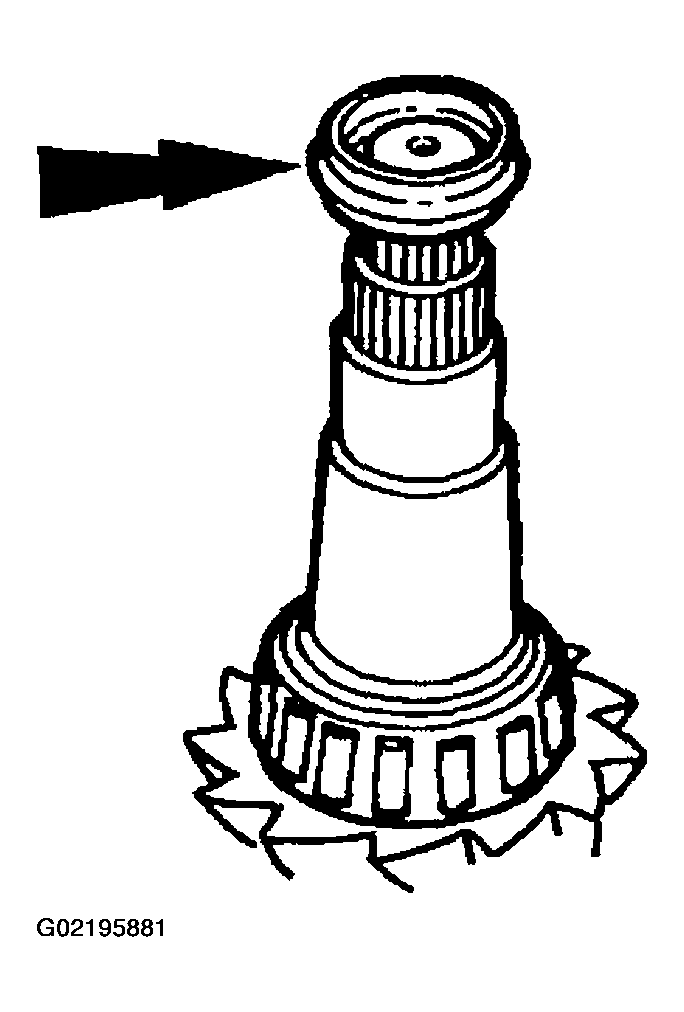

    Fig 7: Removing Drive Pinion Collapsible Spacer
    G02195881Courtesy of FORD MOTOR CO.
  12. Using the special tool, remove the pinion bearing cone and roller assembly.
    Fig 8: Removing Pinion Bearing Cone And Roller Assembly
    G02195882Courtesy of FORD MOTOR CO.
  13. NOTE: Do not remove the pinion bearing cups from the carrier casting unless the cups are damaged.
    Fig 9: Removing Outer Differential Bearing Cup
    G02195883Courtesy of FORD MOTOR CO.
  14. Remove the outer differential bearing cup with the special tools.
  15. Remove the inner differential bearing cup with the special tools.

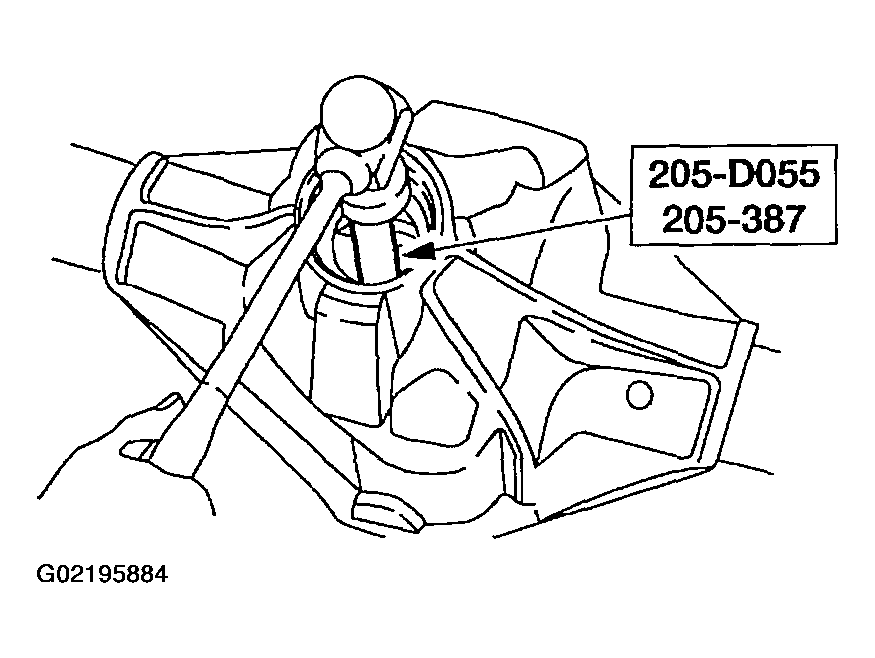

    Fig 10: Removing Inner Differential Bearing Cup
    G02195884Courtesy of FORD MOTOR CO.
