Differential Case and Ring Gear - Conventional: Assembly

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the differential side gear thrust washers on the differential side gears.
    • Use SAE 75W-140 High Performance Rear Axle Lubricant F1TZ-19580-B or equivalent meeting Ford specification WSL-M2C192-A to lubricate the differential side gear thrust washers and the differential side gear journals.
      Fig 1: Installing Differential Side Gears And Differential Side Gear Thrust Washers
      G02195963Courtesy of FORD MOTOR CO.
  2. Position the differential side gears.

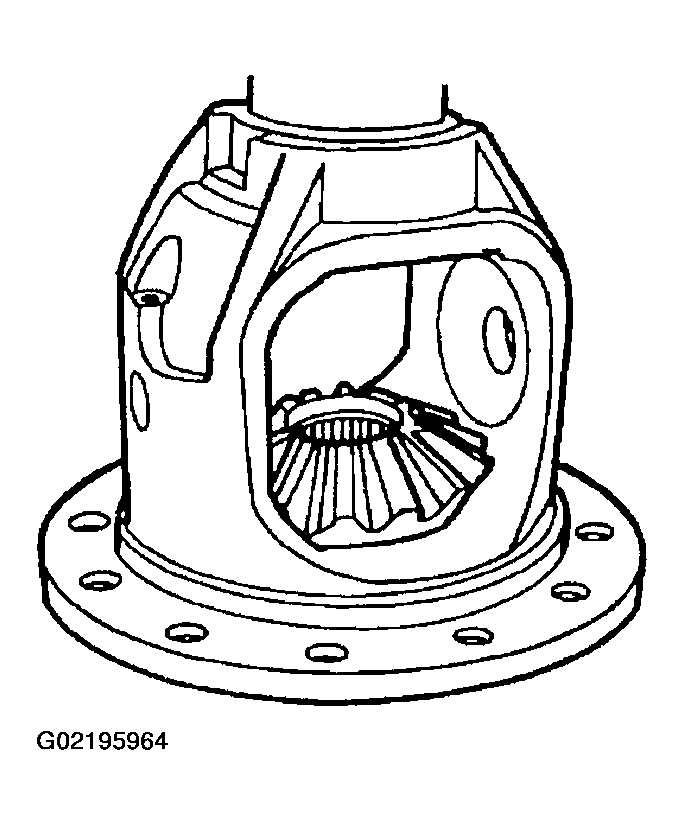

    Fig 2: Installing Differential Side Gears
    G02195964Courtesy of FORD MOTOR CO.
  3. Assemble the differential pinion thrust washers (4230) and the differential pinion gears (4215).
    • Lubricate with SAE 75W-140 High Performance Rear Axle Lubricant F1TZ-19580-B or equivalent meeting Ford specification WSL-M2C192-A.
      Fig 3: Assembling Differential Pinion Thrust Washers And Differential Pinion Gears
      G02195965Courtesy of FORD MOTOR CO.
  4. Engage the differential pinion gears opposite the differential side gears.

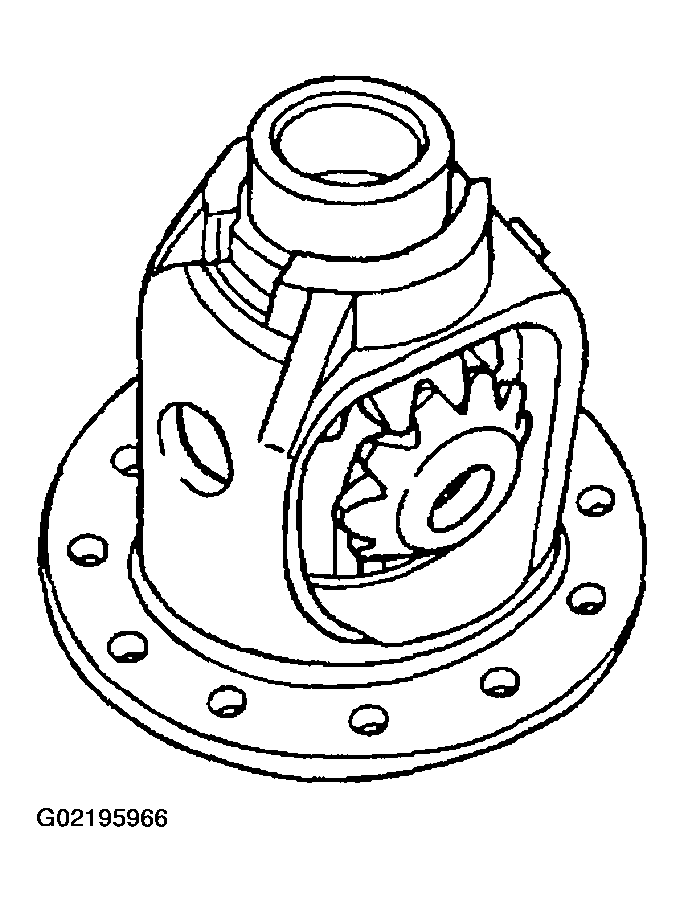

    Fig 4: Engaging Differential Pinion Gears Opposite Differential Side Gears
    G02195966Courtesy of FORD MOTOR CO.
  5. Install the differential bearings, using the special tool.

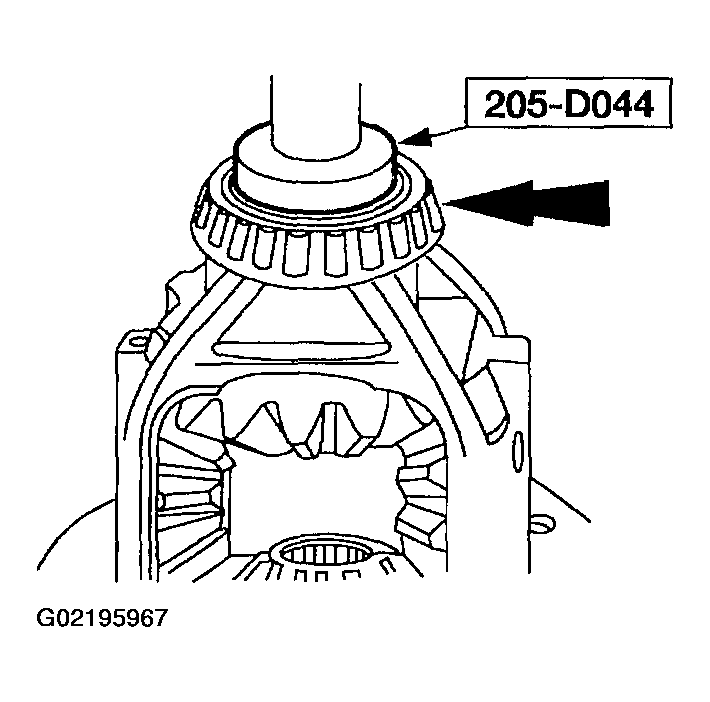

    Fig 5: Installing Differential Bearings Using Special Tool
    G02195967Courtesy of FORD MOTOR CO.
  6. Rotate the differential pinion gears to align the differential pinion shaft bore.

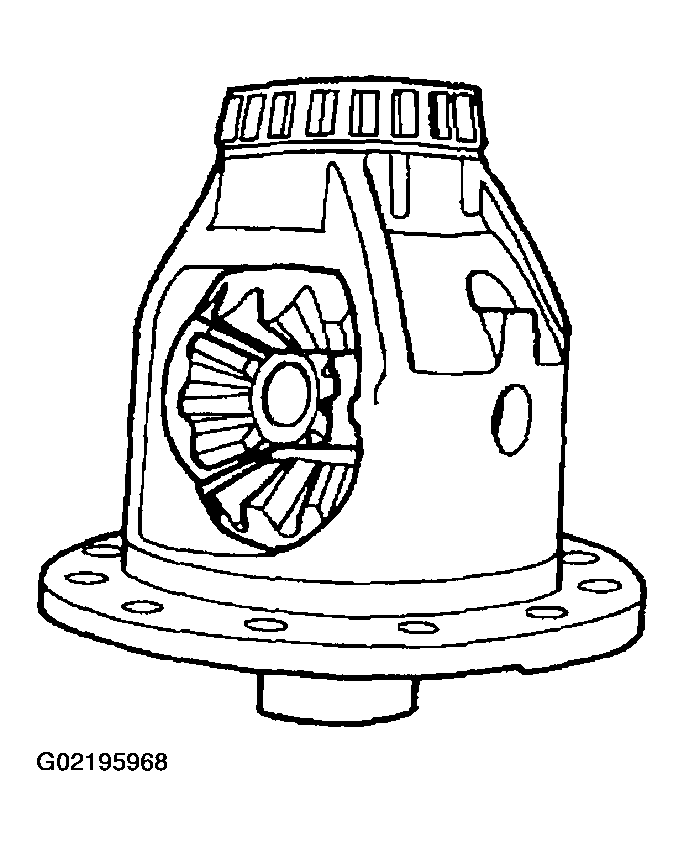

    Fig 6: Rotating Differential Pinion Gears To Align Differential Pinion Shaft Bore
    G02195968Courtesy of FORD MOTOR CO.
  7. Insert the differential pinion shaft, and install a new differential pinion shaft lock bolt finger-tight.
    Fig 7: Installing Differential Pinion Shaft Lock Bolt Finger-Tight
    G02195969Courtesy of FORD MOTOR CO.
  8. CAUTION: If equipped, make sure that the notches on the case flange and the anti-lock speed sensor ring are aligned.

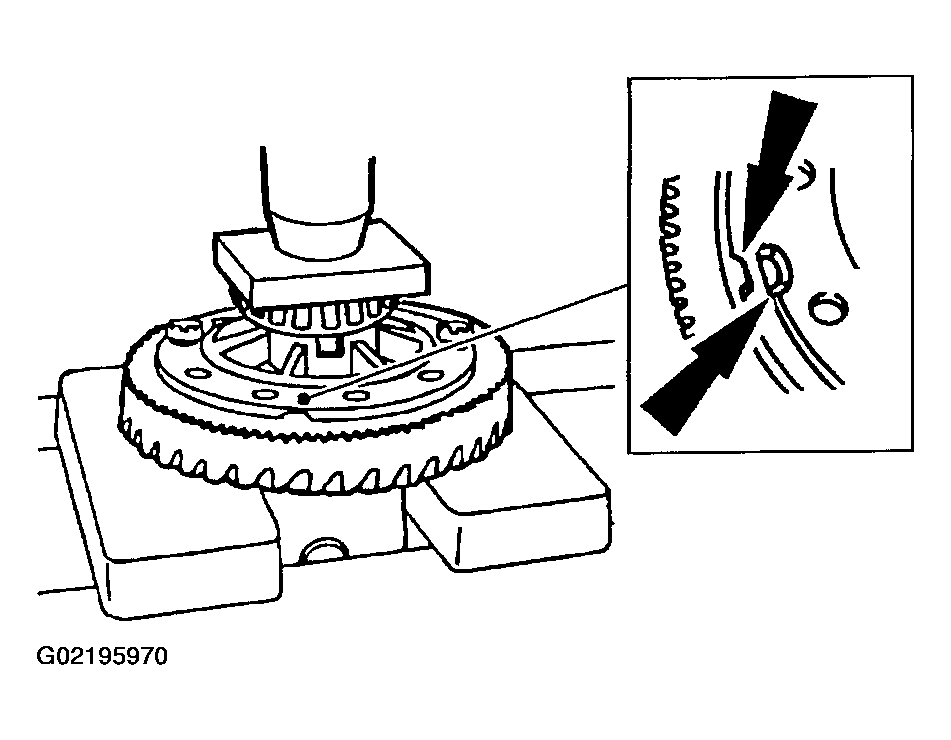

    Fig 8: Installing New Anti-Lock Speed Sensor Ring And Differential Ring Gear On Differential Case
    G02195970Courtesy of FORD MOTOR CO.
  9. Press the new anti-lock speed sensor ring and the differential ring gear on the differential case.
  10. Install the differential ring gear bolts and tighten.
    • Apply Stud and Bearing Mount EOAZ-19554-BA or equivalent meeting Ford specification WSK-M2G349-A1 to the differential ring gear bolts.

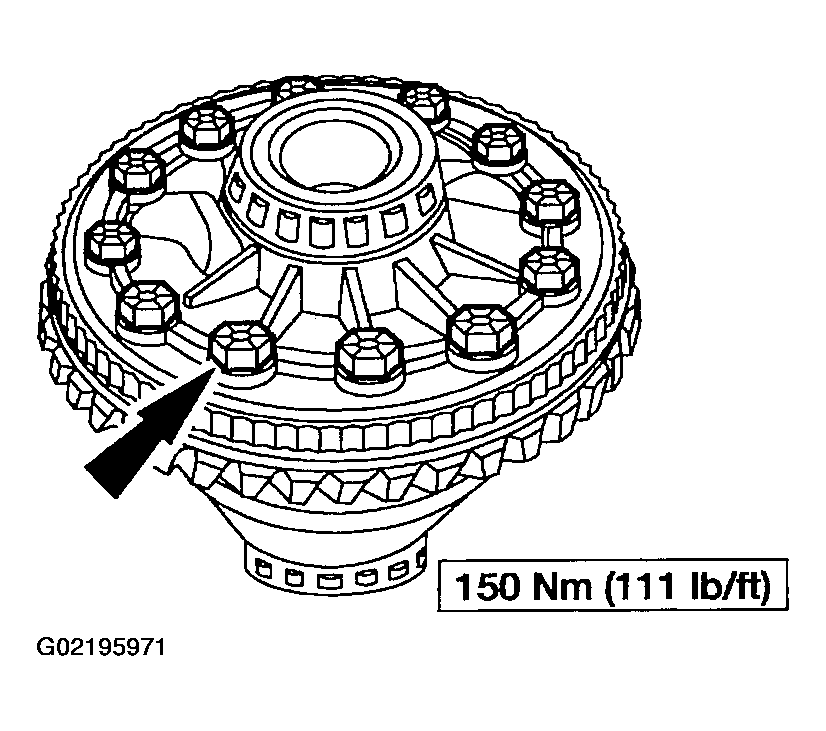

      Fig 9: Installing Differential Ring Gear Bolts
      G02195971Courtesy of FORD MOTOR CO.
  11. Install new differential bearings, if removed.
  12. Install the differential case. Refer to DIFFERENTIAL CASE .
