Rear Wheel Bearing and Axle Shaft Oil Seal: Removal

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the axle shaft. Refer to AXLE SHAFT .
    2. NOTE: If the wheel bearing oil seal is leaking, the rear axle housing vent may be plugged.

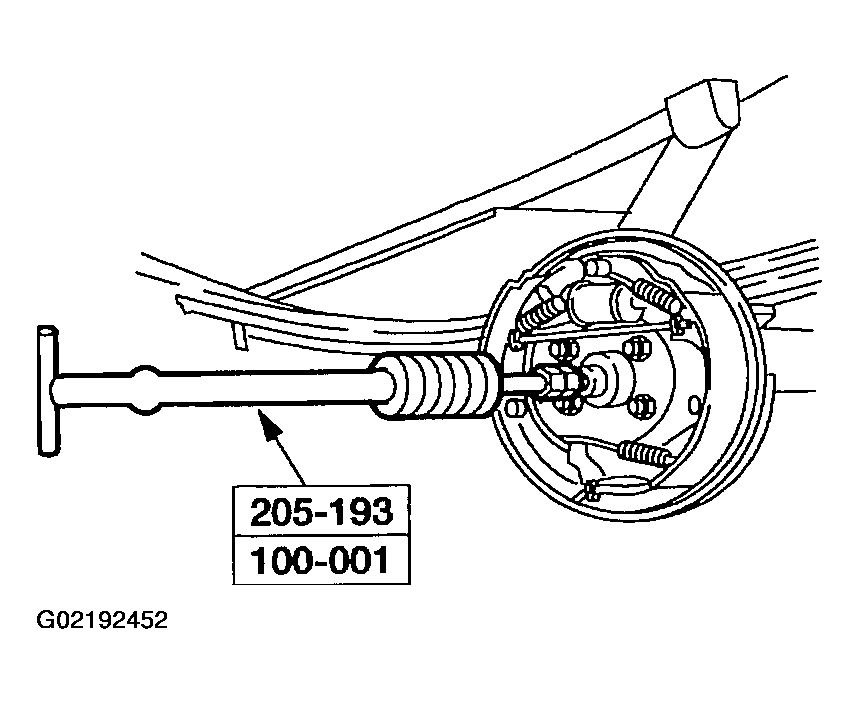

    Fig 1: Removing Rear Axle Bearing And Wheel Bearing Oil Seal
    G02192452Courtesy of FORD MOTOR CO.
  2. Using the special tools, remove the rear axle bearing and wheel bearing oil seal.
