Differential Housing Cover: Removal

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
    2. NOTE: Empty the lubricant into a clean container for reuse.
  2. Remove the differential housing cover.
    1. Remove the 10 differential housing cover bolts and drain the lubricant from the rear axle housing.
    2. Remove the differential housing cover.

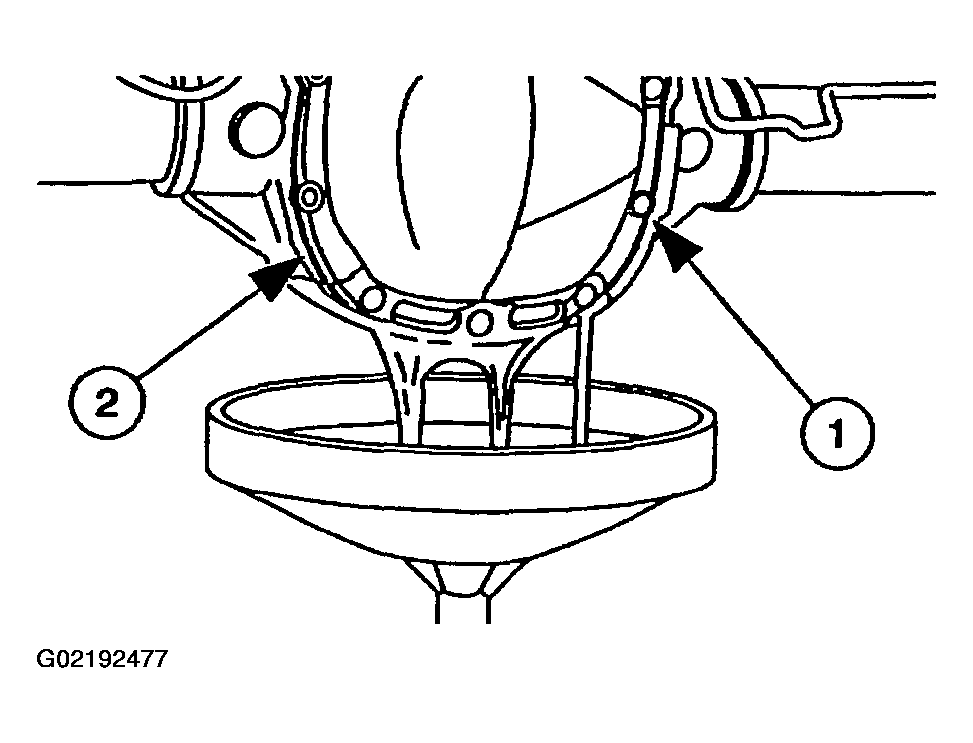

      Fig 1: Removing Differential Housing Cover
      G02192477Courtesy of FORD MOTOR CO.
