Transfer Case - 2.0L Zetec

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driveshaft. Refer to DRIVESHAFT .
  2. Remove the four bolts and remove the crossmember brace.

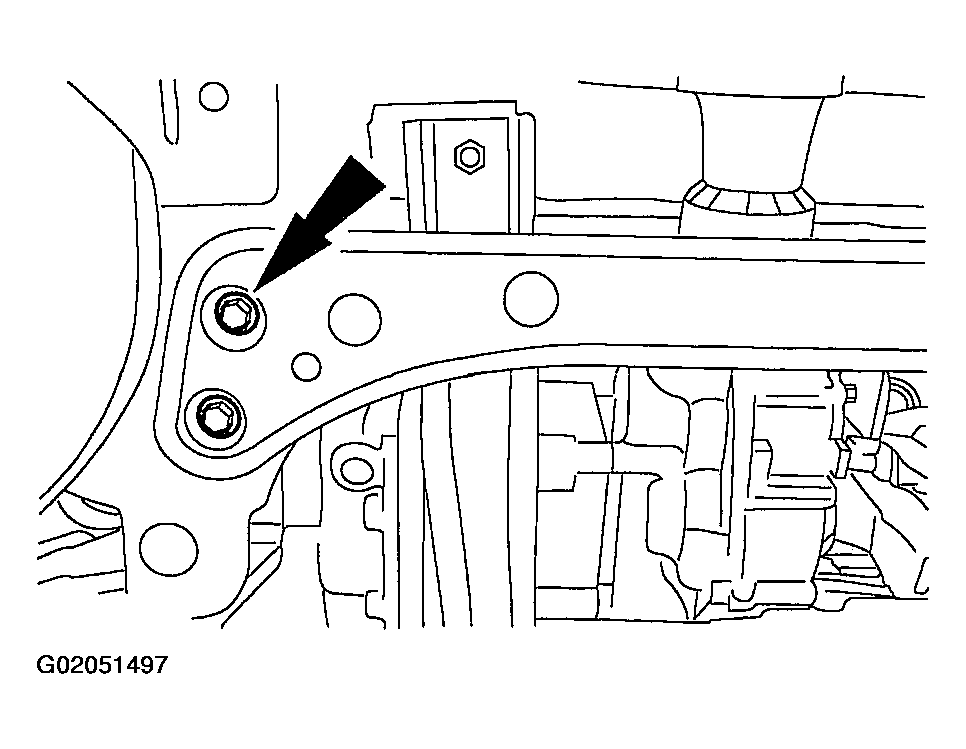

    Fig 1: Removing Four Bolts And Removing Crossmember Brace
    G02051497Courtesy of FORD MOTOR CO.
  3. Remove the two bolts and the two nuts.

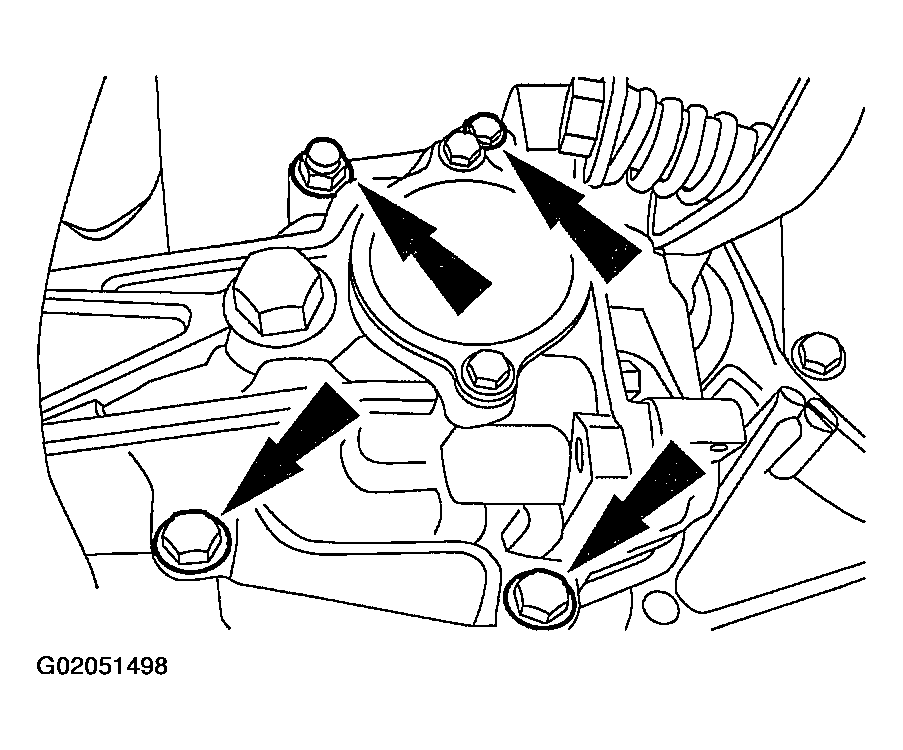

    Fig 2: Removing Two Bolts And Two Nuts
    G02051498Courtesy of FORD MOTOR CO.
  4. Remove the transfer case.

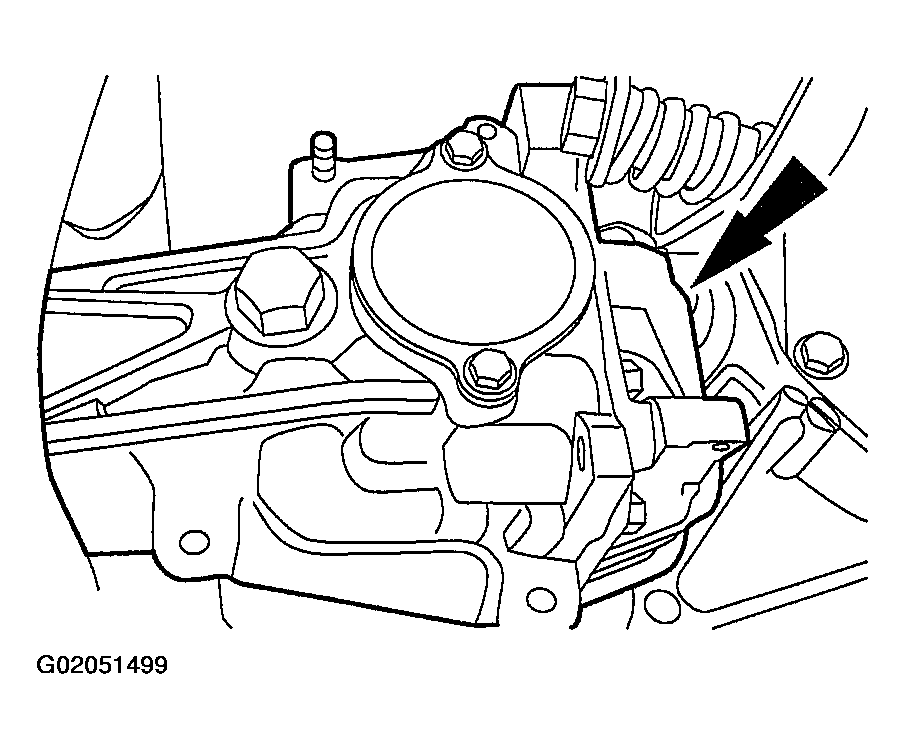

    Fig 3: Removing Transfer Case
    G02051499Courtesy of FORD MOTOR CO.
  5. Remove and discard the O-ring seal.

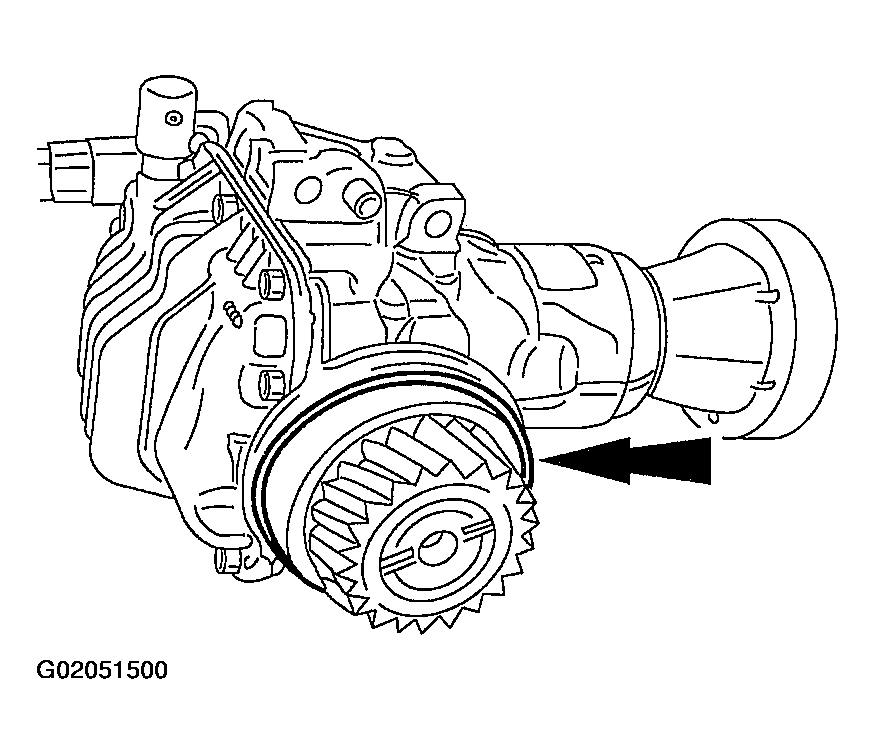

    Fig 4: Removing O-Ring Seal
    G02051500Courtesy of FORD MOTOR CO.
