Transfer Case - 2.0L Zetec

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

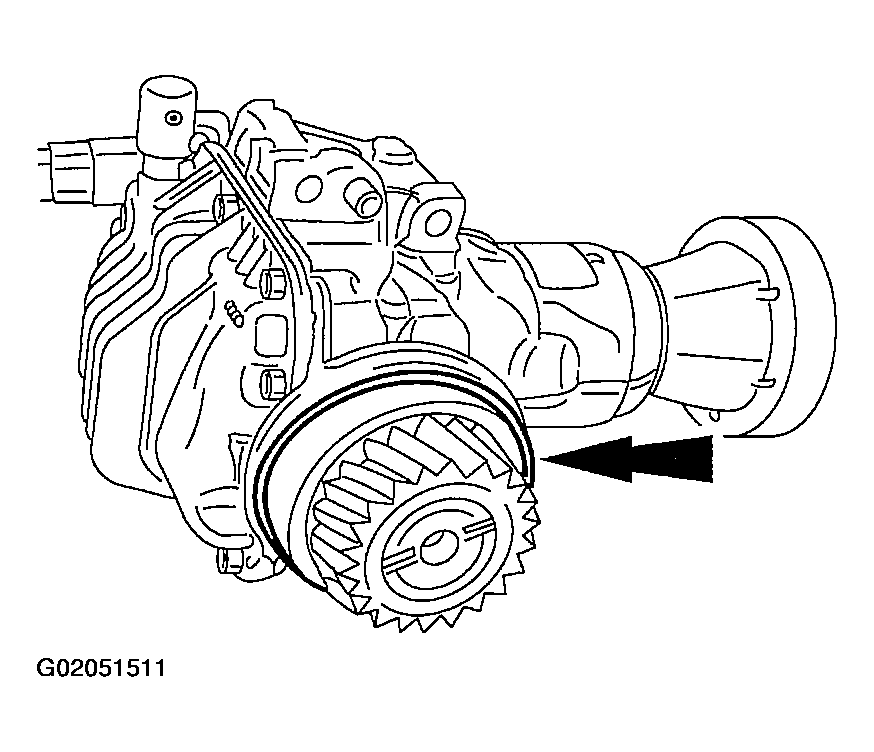

Install a new O-ring seal.

Fig 1: Installing A New O-Ring Seal
Courtesy of FORD MOTOR CO.

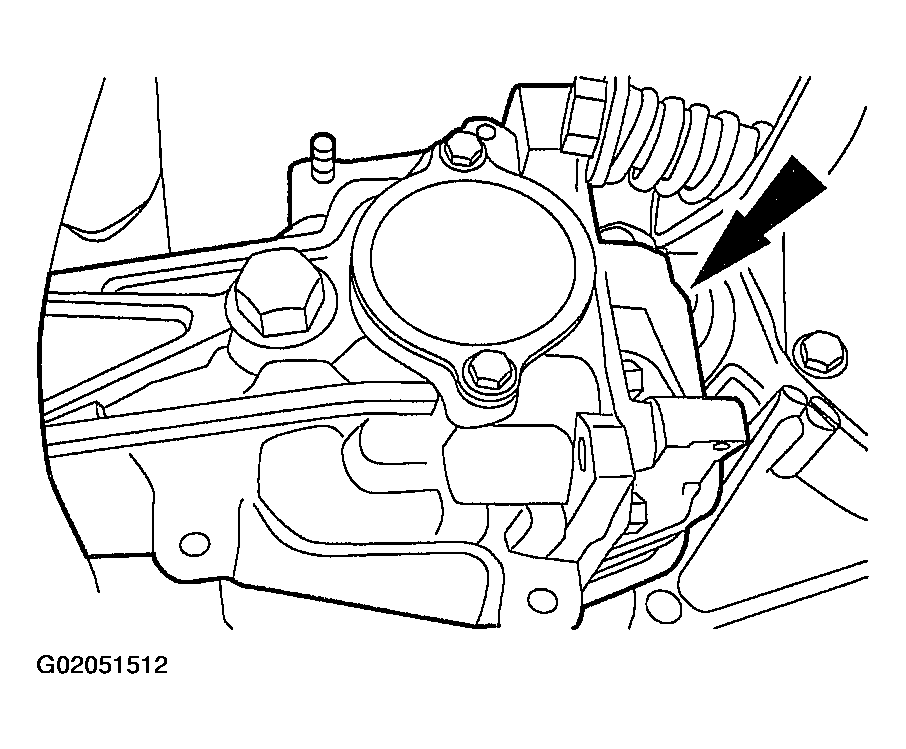

Install the transfer case.

Fig 2: Installing Transfer Case
Courtesy of FORD MOTOR CO.

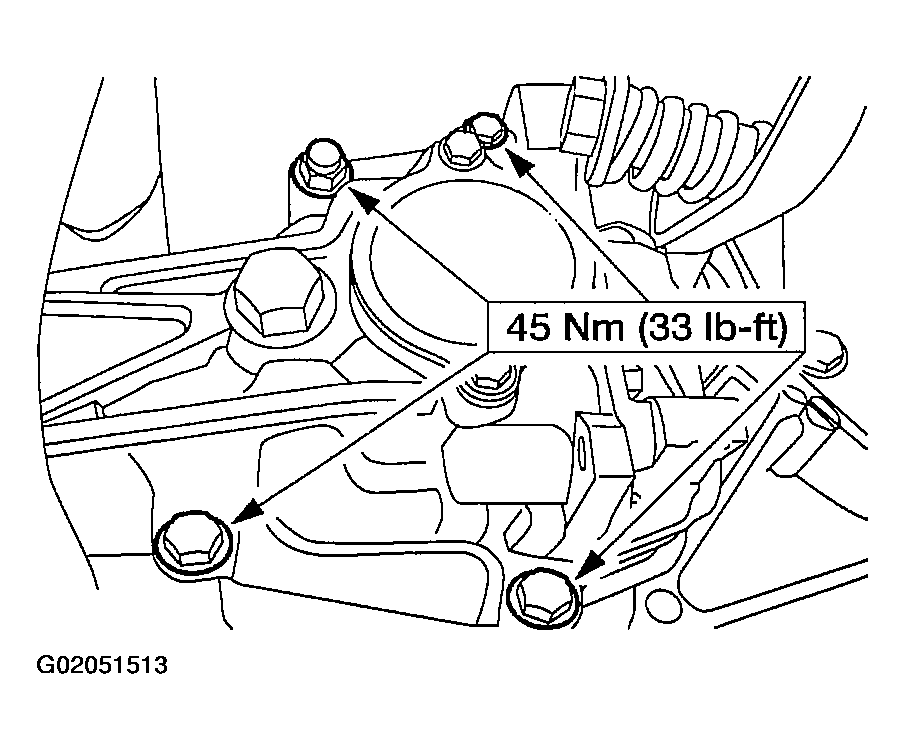

Install the two bolts and the two nuts.

Fig 3: Installing Two Bolts And Two Nuts
Courtesy of FORD MOTOR CO.

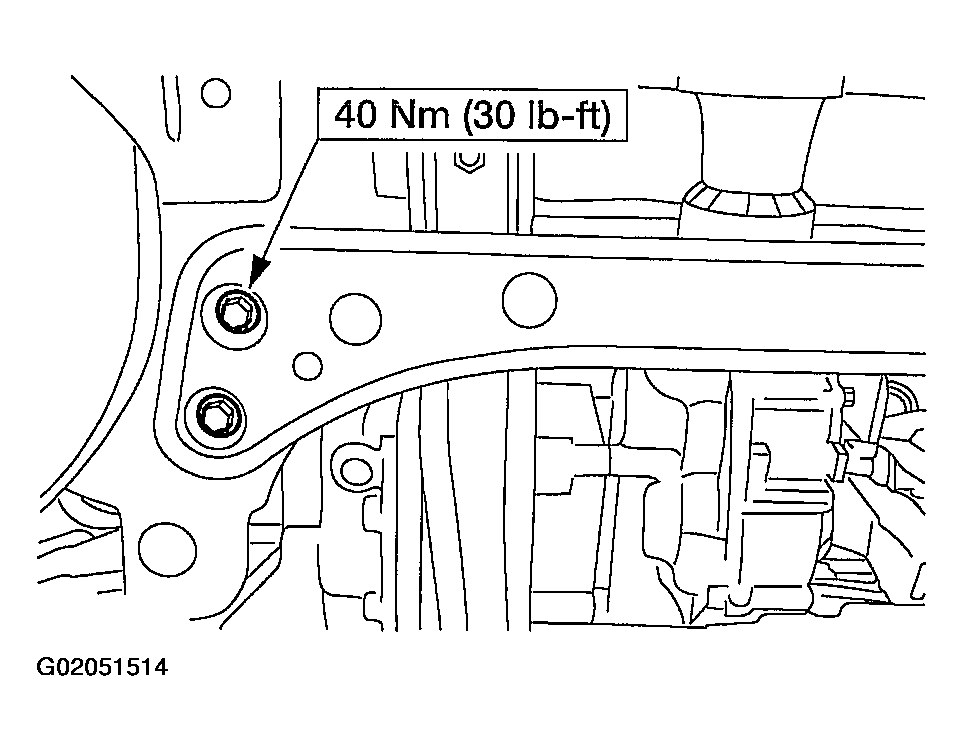

Install the crossmember brace and the four bolts.

Fig 4: Installing Crossmember Brace And Four Bolts
Courtesy of FORD MOTOR CO.
Install the driveshaft. Refer to DRIVESHAFT .
