Transfer Case Rear Output Shaft Oil Seal: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the companion flange. Refer to TRANSFER CASE REAR OUTPUT SHAFT FLANGE .
  2. Remove the transfer case rear output shaft (pinion) seal.

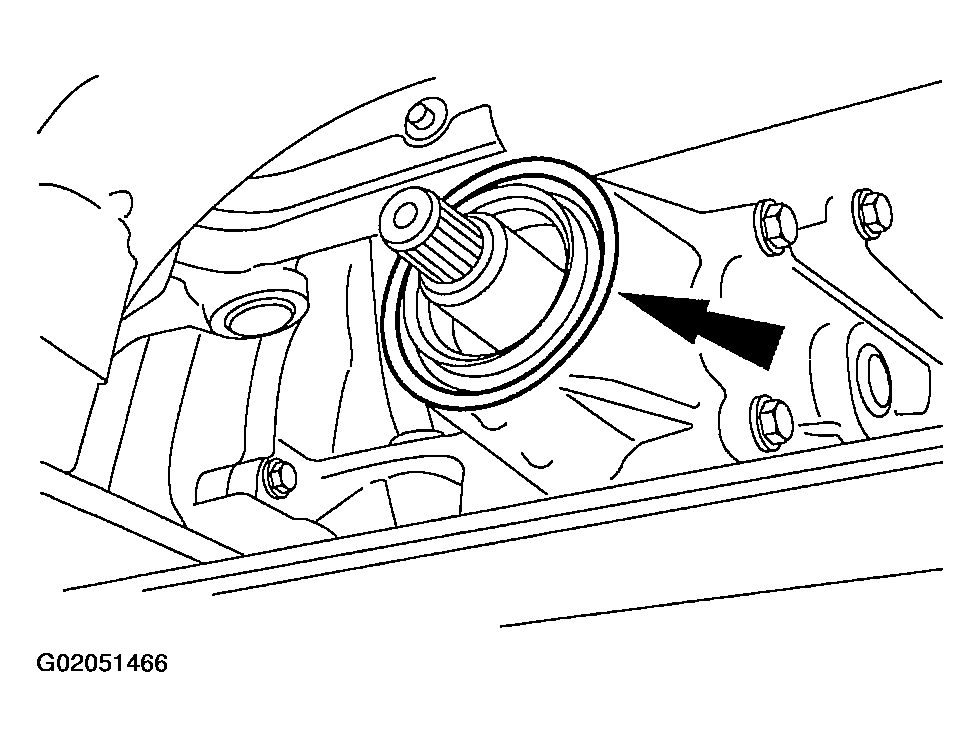

    Fig 1: Removing Transfer Case Rear Output Shaft (Pinion) Seal
    G02051466Courtesy of FORD MOTOR CO.
