Transfer Case Rear Output Shaft Flange: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Mark the driveshaft relative to the companion flange.
  1. Remove the driveshaft. Refer to DRIVESHAFT .
    2. CAUTION: Rotational torque of the companion flange must be measured and recorded for correct pinion bearing preload when reassembled.

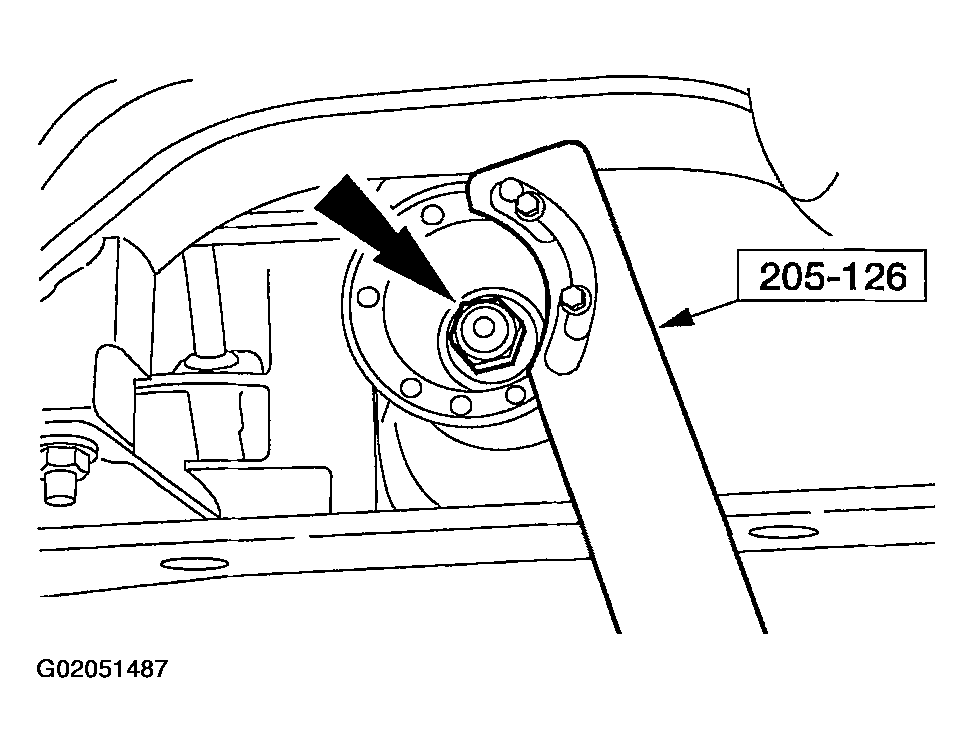

    Fig 1: Removing Pinion Nut Using Special Tool
    G02051487Courtesy of FORD MOTOR CO.
  2. Using the special tool, remove the pinion nut.
    3. CAUTION: Mark the companion flange relative to the pinion spline.

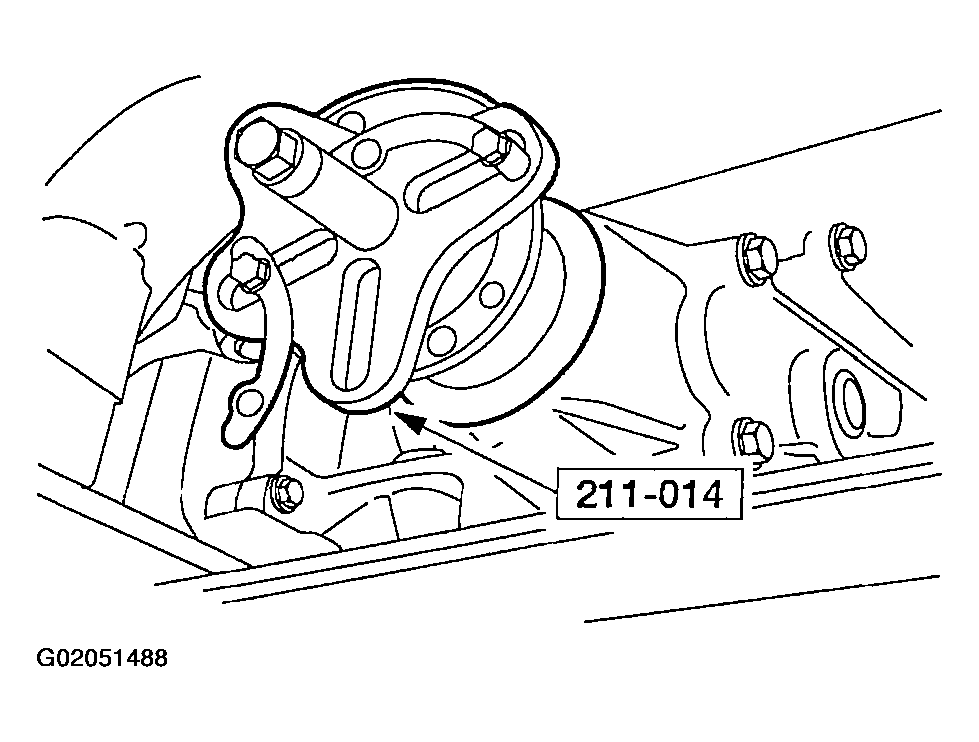

    Fig 2: Removing Companion Flange Using Special Tool
    G02051488Courtesy of FORD MOTOR CO.
  3. Using the special tool, remove the companion flange.
