Transfer Case Rear Output Shaft Flange: Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Install the companion flange to engage the spline as previously marked.

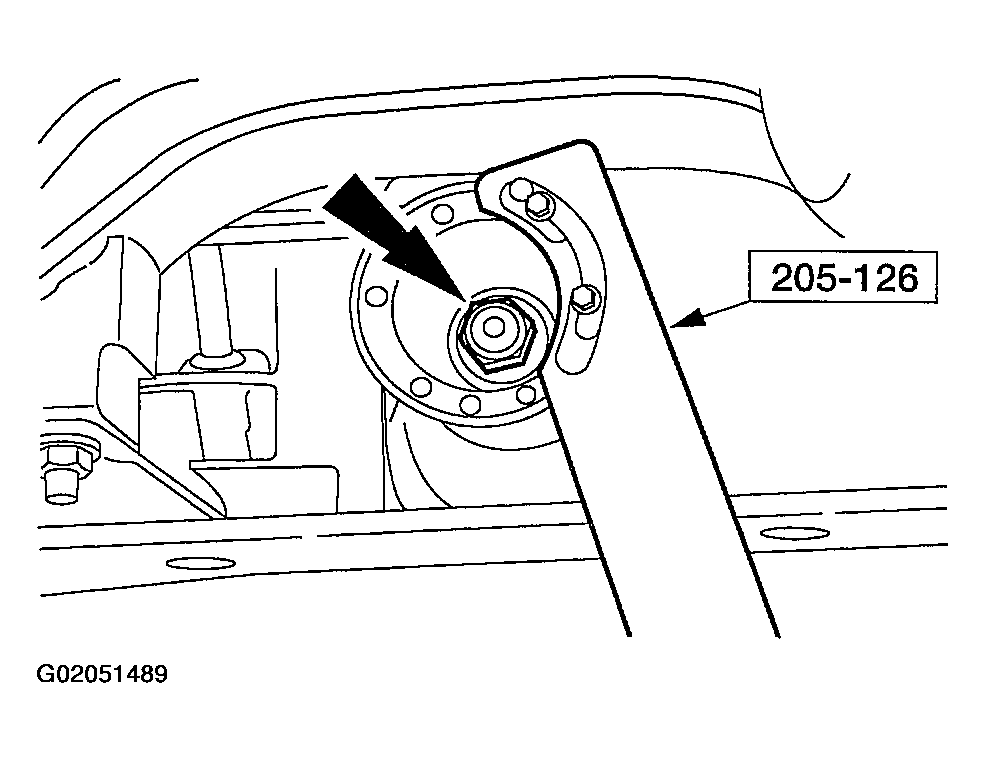

    Fig 1: Installing Companion Flange Using Special Tool
    G02051489Courtesy of FORD MOTOR CO.
  1. Using the special tool, install the companion flange.
    2. CAUTION: Do not  over tighten the pinion nut.
    CAUTION: Refer to the rotational torque previously recorded.
  2. Install the pinion nut.
  3. Install the driveshaft. Refer to DRIVESHAFT .
