Transfer Case Driven Gear Seal: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer case. Refer to TRANSFER CASE-3.0L (4V) .
  2. Using the special tools, remove the driven gear seal.

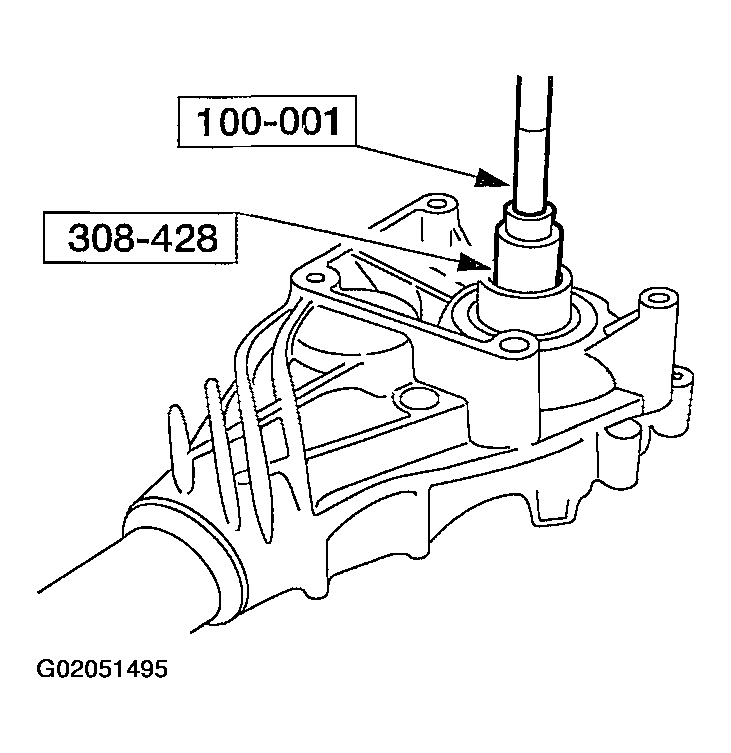

    Fig 1: Removing Driven Gear Seal Using Special Tools
    G02051495Courtesy of FORD MOTOR CO.
