Inspection and Verification

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Visually inspect for obvious signs of mechanical and electrical damage.
  2. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
  3. If the concern is not visually evident, verify the symptom and refer to the Symptom Chart .

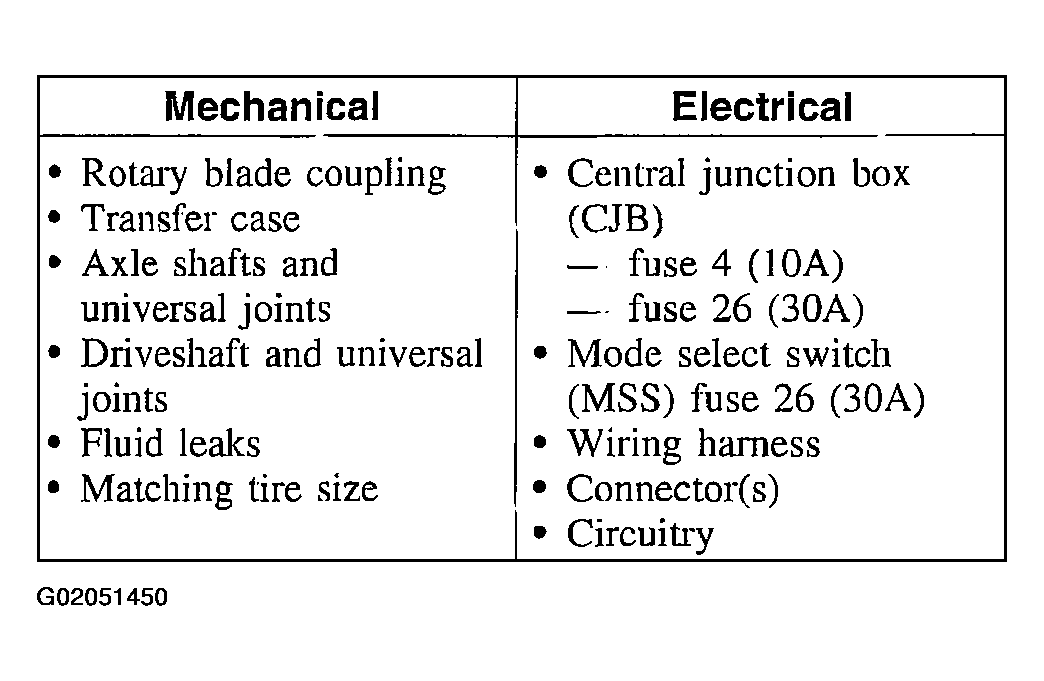

    Fig 1: Visual Inspection Chart
    G02051450Courtesy of FORD MOTOR CO.
