Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the vehicle speed sensor (VSS) electrical connector.

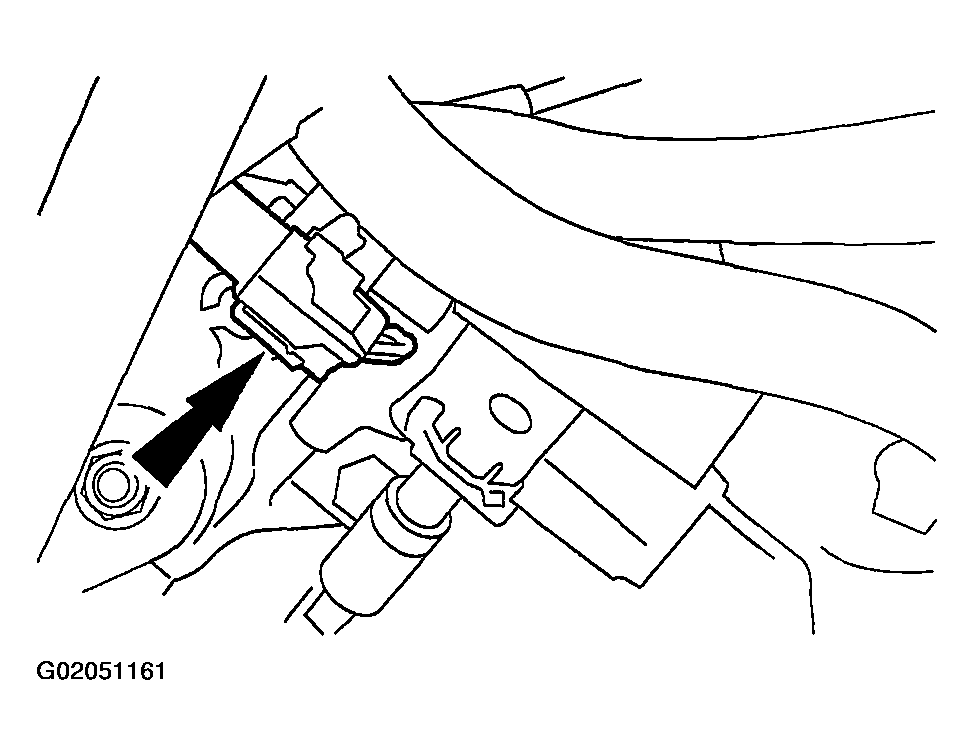

    Fig 1: Disconnecting Vehicle Speed Sensor (VSS) Electrical Connector
    G02051161Courtesy of FORD MOTOR CO.
  2. Raise the vehicle on the hoist.
  3. Remove the bolt and the VSS.

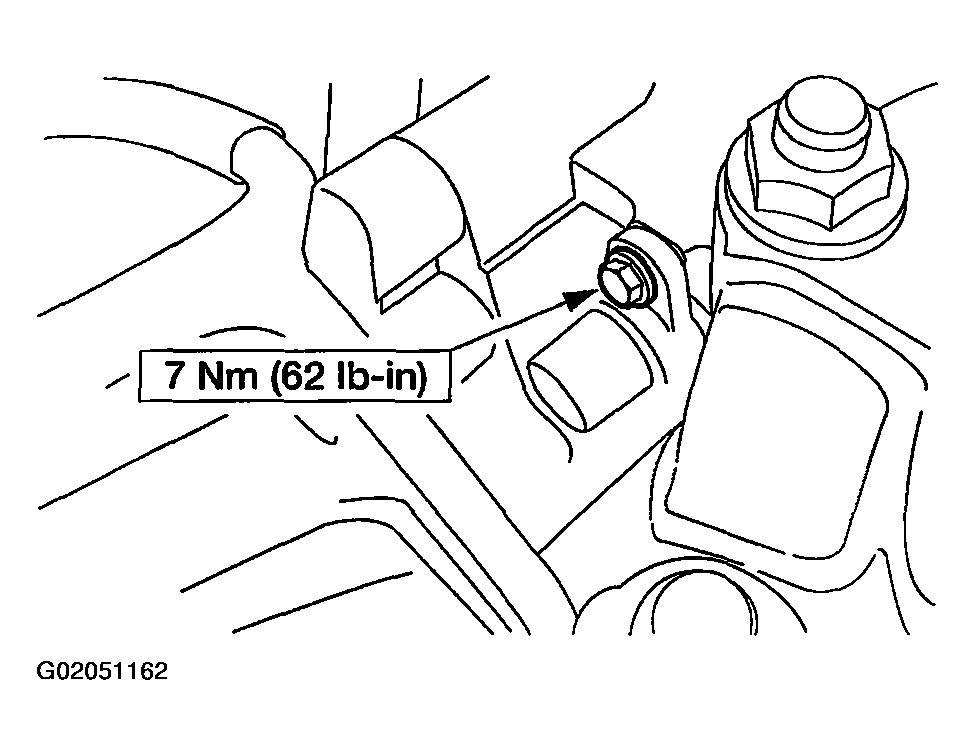

    Fig 2: Removing VSS
    G02051162Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
